Product Details:
|
| Monitor Size: | 5.7 Inch TFT Color LCD | Display Mode: | B, B+B,B+M, M, 4B |
|---|---|---|---|
| Image Gray Scale: | 256 | Image Storage: | 64 |
| Application: | Animal: Pig, Cattle, Sheep, Dog, Cat, Ect | Buyer Type: | Breeder, Farmer (not Veterinary). See Pregnancy |
| High Light: | animal ultrasound scanner,usb ultrasound scanner |
||

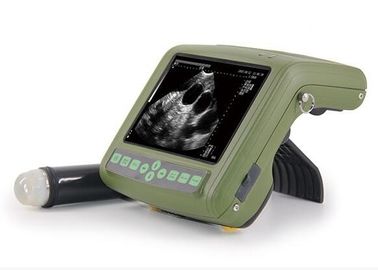

5.7 " LCD Screen Veterinary Ultrasound Scanner for Bovine Equine Ovine Canine Feline Goat Swine Llama
Brief Introduction for Mini Ultrasound Machine
• Wrist design, multiple patents in one, smart and light, easy to carry, convenient for examining.
• Wrist, hang around neck, desktop, outdoor sunshade, total four kind of application,
which brings the new application experience to users.
• 5.7" high resolution color LCD, high brightness, high contrast, wide visual, image clear and exquisite.
• Display backfat ruler, easy to intuitive see backfat thickness.
• Export EXCEL form, user-friendly management of pregnancy records.
• OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
• Menu operation,Language: Chinese/English.
• 5 kinds Magnification, maximum display depth is 200mm.
• Display mode:B,2B,4B,B/M,M.
• 256 frames permanent storage.
• Eight pseudo colors (incl.B/W).
• High speed USB port support high-capacity U disk.
• Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to video recorder and video glasses.
• Optional mouse to operate easier.
• Freeze or unfreeze image by shutter release.
• Water-proof, dust-proof, unique window radiator, avoid farmhouse cross infection.
• Adopted AC and DC to supply power, equipped with 1pc of high-capacity lithium batteries
which can make machine work more than 200 minutes.
Advantage for Mini Ultrasound Machine
| 1 | Economic price |
| 2 | Wrist design: truely innovative |
| 3 | Smart and light : 5.7" high resolution color LCD , 1.1kg weight |
| 4 | Menu operation. Very easy |
| 5 | 1 pcs Internal li-battery: work for 200 minutes |
| 6 | USB port: directly store image to U disk |
| 7 | Splash-proof, dust-proof, unique window radiator, avoid farmhouse cross infection |

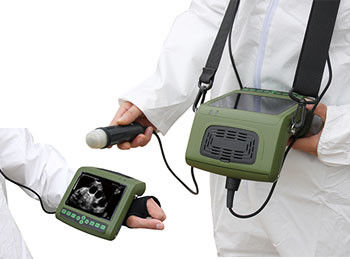

| 8 | Multiple use method: hand-held, chest hanging, back hanging , waist hanging, ect |
Specification
| 1 | advanced system | Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system |
| 2 | 5.7" High resolution color LCD | high brightness, high contrast, wide visual, suitable for outdoor use |
| 3 | Language | Chinese/English switchable |
| 4 | Body mark | 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position |
| 5 | Display mode | B,2B,4B ,B/M,M, total 5 kinds |
| 6 | Displaying depth | 5 kinds of Magnification, maximum display depth is 200mm |
| 7 | Gain range | 0~127dB |
| 8 | Intelligent TGC control | Near-field:0～-31dB；Far-field:0～31dB |
| 9 | Dynamic range | 27~90dB |
| 10 | Gray | 256 |
| 11 | Frame frequency | 30 frames/second |
| 12 | Pseudo-color | 8 kinds (incl. B/W) |
| 13 | Local zoom and coloring | Available |
| 14 | Dual-mode TV output | ＰＡＬ/ＮＴＳＣ, connecting to thermal printer and ultrasonic working station |
| 15 | Net weight | 1.1KG |
| 16 | Main unit size | 155x180x80mm(length x width x height) |
Image storage
| 1. | Permanent image storage: 100 frames |
| 2. | USB port support one-key storage image to USB |
Measurement and analysis
| 1 | Puncture guiding function | 2 guiding lines, angel and position adjustable |
| 2 | General measurement | distance,Perimeter, area (trace method, ellipse method), volume, etc |
| 3 | Cardiac measurement | depth, slope, heart rate, time |
| 4 | OB measurement | EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama |
| 5 | OB report function | Available |
Power supply: Dual power supply
| 1 | Power | AC110/230 -15 ％ ～ ＋ 10 ％ (self-adaption supply voltage), 60/50Hz±1Hz |
| 2 | Battery | two pcs of high-capacity lithium Battery( 2400MAh) ,more than 400 minutes work |
Standard configuration
| 1 | Main unit | 1 pc |

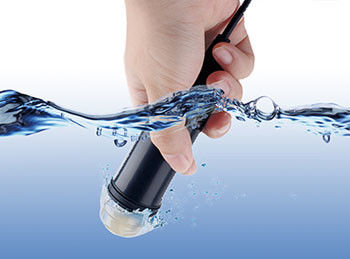

| 2 | 3.5MHz waterproof mechanical sector probe | 1 pc |
| 3 | Power adapter | 1 pc |
| 4 | Internal battery | 1 pc |
| 5 | The leather Case | 1 unit |
| 6 | Base charger, belt, bracket, shutter release | 1 pc for each |
Optional configuration
| 1 | USB flash disk | 1 pc |
| 2 | Mouse | 1 pc |
| 3 | Thermal printer ( P93W-S ) | 1 pc |
| 4 | Battery ( 2400mAH ) | 1 pc |
| 5 | Black suitcase | 1 pc |

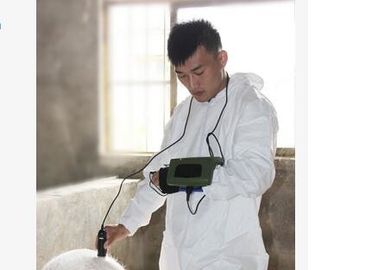

Image for Mobile Ultrasound Machine
