Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe

Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe

  • Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe
  • Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe
  • Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe
  • Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe
Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe
Product Details:
Place of Origin: China
Brand Name: BIO
Model Number: V5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: 1 unit/carton(250×160×70mm)2kgs
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month
Contact Now
Detailed Product Description
Product Name: Mini Ultrasound Machine Display Mode: B,2B,4B ,B/M,M, Total 5 Kinds
Animal Available: Dog, Pig, Cow, Horse , Sheep Magnification: 0.8,1.0,1.2,1.6,2.0, Total Five Kinds
Net Weight: 1.1 Kg Main Unit Size: 212mm*154mm*58mm(length X Width X Height)
High Light:

animal ultrasound scanner

,

digital ultrasound scanne

Portable Veterinary Ultrasound Veterinary Ultrasound Scanner with 3.5MHz Waterproof Mechanical Sector Probe



Advantage for Small Ultrasound Machine



1 Economic price
2 1.1kg weight, Smart and light
3 5.7" High resolution color LED
4 Have soft rubber coat, splash-proof, dust-proof
5 Sunshine cover, suitable for use in outdoor strong sunshine
6 High-capacity lithium Battery ,more than 6 hours work
7 Available for left/right hand alternative use, eliminating operate fatigue
8 Multiple use method: hand-held, chest hanging, back hanging , waist hanging, ect



Specification



1 advanced system Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system
2 5.7 "high resolution Chinese/English switchable
3 Language Chinese/English switchable
4 Body mark 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position
5 Display mode B,2B,4B ,B/M,M, total 5 kinds
6 Gain range 0~127dB
7 Intelligent TGC control Near-field:0~-31dB;Far-field:0~31dB
8 Dynamic range 27~90dB
9 Gray 256
10 Magnification 0.8,1.0,1.2,1.6,2.0, total five kinds
11 Frequency conversion 2 kinds
12 Frame correlation 0,1,2,3 total 4 kinds
13 Image post-process adjustment 0,1,2,3,total 4 kinds
14 Local zoom Available
15 4 grades depth adjustment maximum display depth is 200mm
16 Image horizontal/ vertical reverse left/right reverse
17 Pseudo-color 8 kinds (incl. B/W)
18 Permanent image storage 100 frames
19 USB disk storage function Available
20 Puncture guiding function 2 guiding lines, angel and position adjustable
21 Equipped with lithotripsy software realize real-time positioning measurement
22 Energy saving function Available
23 Character brightness choose from 160,192,224,255 for brightness
24 Keyboard tone 2 kinds(open,close)
25 Dual-mode TV output PAL / NTSC
26 Net weight 1.1KG
27 Main unit size 212mm*154mm*58mm(length x width x height)



Image storage



1. Permanent image storage: 100 frames
2. USB port support one-key storage image to USB



Measurement and analysis



1 General measurement distance,Perimeter, area (trace method, ellipse method), volume, etc
2 Cardiac measurement depth, slope, heart rate, time
3 OB measurement EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama
4 OB report function Available



Power supply



1 Power AC110/230 -15 % ~ + 10 % (self-adaption supply voltage), 60/50Hz±1Hz
2 Battery one pc of high-capacity lithium Battery( 5200MAh) ,more than 6 hours work



Standard configuration ​



1 Main unit 1 pc
2 3.5MHz waterproof mechanical sector probe 1 pc
3 Power adapter 1 pc
4 Internal battery 1 pc
5 The leather Case 1 unit
6 Green soft rubber coat 1 pc
7 Sunshine cover 1 unit (A,B,C three sections adjustable)
8 Black plastic suitcase 1 pc
9 Base Charger, belt, probe socket spatula 1 pc for each

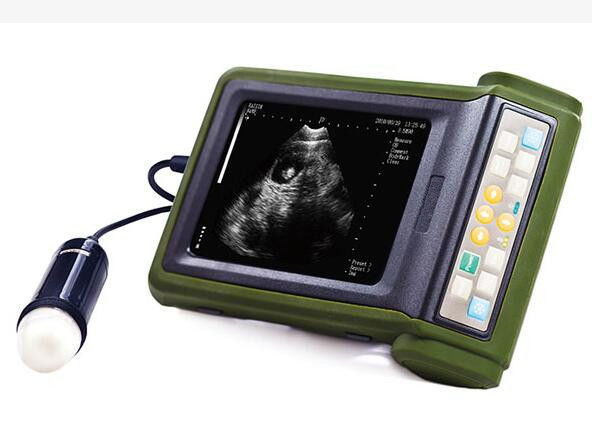

Image for Palm Ultrasound Machine



Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe 0           Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe 1



Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe 2           Portable Veterinary Ultrasound Scanner With 3.5MHz Waterproof Mechanical Sector Probe 3
