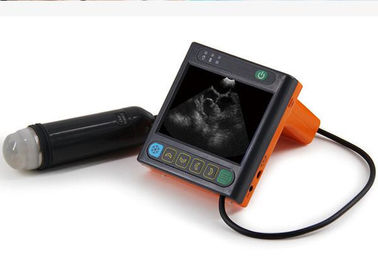

Digital Mechanical Sector Vet Ultrasound Scanner For Pig Sheep Dog Only 620g Weight

Product Details:

Place of Origin:	China
Brand Name:	BIO
Model Number:	V6

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	1 unit / Carton (100×100×30mm) , 1kg
Delivery Time:	7 working - days since getting full payment
Payment Terms:	Credit card, Paypal, T/T
Supply Ability:	100 units / month

Contact Now

Detailed Product Description

Display Mode:	B, 2B, A	Screen:	3.5" High Resolution Color LCD
Frequency:	2.5M, 3.5M	Image Storage:	Image Or Measurement Data Stored In The U Disk
Dual Power Supply:	Power: 100-240V ~ ± 10% 1.2-0.6A Frequency: 50-60Hz ± 1Hz	Battery Configuration:	Large Capacity (2600mAh) Lithium Battery Can Support More Than 300 Minutes Work
Net Weight:	620g	Main Unit Size:	90×98×25mm(length X Width X Height)
High Light:	animal ultrasound scanner , digital ultrasound scanne

Digital Mechanical Sector Ultrasound Scanner Vet Ultrasound Scanner for Pig Sheep Dog Only 620g Weight

Advantage

1	Latest cortex-m4 embedded control system + mini-ultrasound technology hardware system; A scan and B scan.
2	3.5" high resolution color LCD, smart, light and portable, suitable for outdoor use.
3	Measure back fat thickness, loin muscle thickness and lean percentage.
4	3 kinds scale of image display.
5	With U disk, image and measured data can be stored in Excel table, easy for data management processing.
6	Unique character hidden function,automatically hidden in the setting time.
7	System automatically freeze and protect probe with time setting.
8	Customized languages: English, French, German, Spanish, Portuguese, Russian and etc.
9	Lithium battery: Large capacity (2600mAh), working time≧ 300 minutes.
10	Net weight: 620g.

Specification

1	Adopted the latest cortex-m4 embedded control system + miniaturized exclusive ultrasound technology hardware system; MSU3 with triple function of A scan, B scan, the perfect solution to the various needs of users;
2	3.5" high resolution color LCD, smart, light and portable,suitable for outdoor use;
3	Menu interface operation, Language: Chinese/English switchable( factory defaults);
4	Customized multiple languages: Chinese, English, French, German, Spanish, Portuguese
5	Gray:256
6	Display mode: B, 2B, A, total 3 kinds
7	B mode and A mode gain range: 27~90dB
8	Near field Gain:-31~0dB
9	Far field Gain:0~31dB
10	Dynamic range:27~90dB
11	3 kinds of depth range, 126, 163, 200, the maximum display depth of 200mm
12	Compression curve adjustment: 4 kinds, from 0~ 3
13	Frequency: 2.5M, 3.5M;
14	Frame correlation: 0 ~ 5,6 kinds
15	Pseudo-color function: 0 ~ 7,8 kinds (including black and white)
16	Measure backfat thickness, loin muscle thickness and lean percentage
17	Image Storage: image or measurement data stored in the U disk
18	Scale of the image display: 3 kinds, "0" is without ruler, "1" is displayed 10mm pitch of dot scale, "2" is displayed vertical and horizontal pitch of 10mm dot scale
19	B scan and A scan measured data can be stored in Excel table, user-friendly data management, processing all kinds of information
20	Unique menu disappears settings function: Menu disappears automatically at a set time, user-friendly observation image
21	Screen saver function
22	System settings probe guard time, automatically freeze, to protect probe
23	Dual power supply. Power: 100-240V ~ ± 10% 1.2-0.6A Frequency: 50-60Hz ± 1Hz
24	Battery Configuration: Large capacity (2600mAh) lithium battery can support more than 300 minutes work
25	Net Weight: 620g
26	Main unit size:90×98×25mm(length x width x height)

Standard Configuration

1	Main unit	1 pc
2	3.5MHz mechanical sector probe	1 pc
3	Power adapter	1 pc
4	Internal battery	1pc
5	Power line	1 pc
6	Shutter release line	1 pc
7	Straps	1 pc
8	Instrument backpack	1 pc
9	OTG U disk	1 pc
