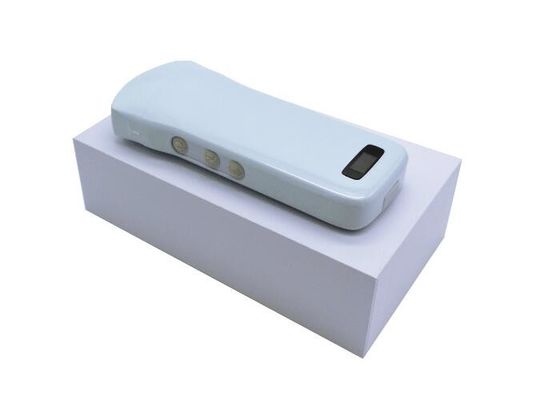

Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements

Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements
Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements

Large Image :  Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements

Product Details:
Place of Origin: China
Brand Name: BIO
Model Number: W4
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Carton (240x235x100mm), 1.1Kgs/carton
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month

Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements

Description
Type: Wireless Ultrasound Probe (Linear, Convex) Scan Mode: B, B/M, Color Doppler, PW, Power Doppler
Scanning Depth: Linear: 20-100mm, Convex: 90-305mm Measurement: B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth
Dimension: 157(h)*70(w)*30(d)mm Net Weight: 221g
Frequency: Linear: 7.5-10MHz Convex: 3.5-5MHz Supporting System: Andriod, Windows, IOS
High Light:

hand ultrasound machine

,

handheld ultrasound machine

Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode

192 Elements





Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements 0


We are a medical ultrasound company engaged in R&D , production, sale and after-sales service.

We persistently cooperated closely with domestic and international famous medical ultrasound R&D organization

and keep in contact with related university ,labs professors and doctors to update latest data of ultrasound machines ,

also professional clinical applications experience.



W4 Wireless Ultrasound Scanner are wireless and working with a mobile app that is compatible with most iOS and Android smart devices

as well Windows system. Imaging transmission is done by internal 5G wifi , no external networks needed and work for most specialties

in hospitals , clinics, healthcare center etc.



Specification



Item 1 2 3
Photo Wifi Color Doppler Handheld Ultrasound Scanner Linear And Convex Connected To Mobilephone Android iOS Windows Supported 0 Wifi Color Doppler Handheld Ultrasound Scanner Linear And Convex Connected To Mobilephone Android iOS Windows Supported 1 Wifi Color Doppler Handheld Ultrasound Scanner Linear And Convex Connected To Mobilephone Android iOS Windows Supported 2
Type Linear Convex Linear
Frequency 7.5-10MHz 3.5-5MHz 7.5-10MHz
Depth 20-55mm 90-305mm 20-100mm
Elements 128 128 128
Radius N/A R60 N/A
Length 46mm N/A 46mm
DR N/A 40-100 40-100
FocusPos N/A 0.1.2.3 0.1.2.3
Enh 0-4 0-4 0-4
Display mode B, B/M, Color Doppler,PW, Power Dopper B, B/M, Color Doppler,PW, Power Dopper B, B/M, Color Doppler,PW, Power Dopper
APP interface adjustment

GN(gain)

D(depth)

ENH(enhancement)

DR(dynamic range)

F(frequency)

Focus

8TGC

Biopsy

Page Left/Right Up/Down

GN(gain)

8TGC

D(depth)

ENH(enhancement)

DR(dynamic range)

F(frequency)

PRF WF

Focus

Biopsy

Page Left/Right Up/Down

GN(gain)

8TGC

D(depth)

ENH(enhancement)

DR(dynamic range)

F(frequency)

PRF WF

Focus

Biopsy

Page Left/Right Up/Down

Measurement

B:

Length, Area/Circumference, Angle,Trace,Distance



B+M:

Heart Rate, Time, Distance



B+PW:

Velocity, Heart Rate (2), S/D, Depth

B:

Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​



B+M:

Heart Rate, Time, Distance



B+PW:

Velocity, Heart Rate (2), S/D, Depth

B:

Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL)



​B+M:

Heart Rate, Time, Distance



B+PW:

Velocity, Heart Rate (2), S/D, Depth

Dimensions 157(h)*70(w)*30(d)mm 157(h)*70(w)*30(d)mm 157(h)*70(w)*30(d)mm
Package size 240(h)*235(w)*100(d)mm 240(h)*235(w)*100(d)mm 240(h)*235(w)*100(d)mm
Net weight 221g 239g 223g
Gross weight 1.1kgs 1.1kgs 1.1kgs
Wifi type 802.11g/20MHz/2.4G 802.11g/20MHz/2.4G 802.11g/20MHz/2.4G
Working system Android, iOS, Windows Android, iOS, Windows Android, iOS, Windows
Application

Breast

Thyroid

MSK

Superficial

Vascular

Pediatrics

Carotid

Small Parts

Abdominal

Emergency Cardiac

Obstetrics / Gynecology

Lung

Kidney

Urology

Thyriod

Small Parts

Pediatrics

Vascular

Carotid

Breast

MSK

Language

Chinese,English,Russian,Italian,

Spanish,Portuguese(Brazil)

Chinese,English,Russian,Italian,

Spanish,Portuguese(Brazil)

Chinese,English,Russian,Italian,

Spanish,Portuguese(Brazil)

Battery life 5-8 years 5-8 years 5-8 years
Voltage 3.8v 3.8v 3.8v
Replaceable Yes Yes Yes
Capacity 4200mAh 4200mAh 4200mAh
Standby 12h 12h 12h
Bootup

Platform dependent,

generally <5 seconds

Platform dependent,

generally <5 seconds

Platform dependent,

generally <5 seconds



Standard Configuration



1 Wifi ultrasound probe 1pc
2 USB cable 1pc
3 Power Plug 1pc
4 Wireless charger 1pc
5 Wrist strap 1pc
6 Portable aluminium alloy box 1pc
7 User's Manual_E format 1pc
8 Warranty Card_Eformat 1pc


Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements 4

Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements 5



Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements 6



Wireless Ultrasound Probes Handheld Ultrasound Device With B, B/M, Color Doppler, PW, Power Doppler Mode 192 Elements 7
