USB Or WIFI Connection Handheld Video Otoscope Ophthalmoscope Set 3 Lenses Optional

USB Or WIFI Connection Handheld Video Otoscope Ophthalmoscope Set 3 Lenses Optional

USB Or WIFI Connection Handheld Video Otoscope Ophthalmoscope Set 3 Lenses Optional

Product Details:

Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: S1

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Packaging Details: carton(28*22*14cm) NW:0.26KG GW:1.35KG
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100units/Month
Contact Now
Detailed Product Description
Light Source: Natural White(LED) File Format: JPEG,BMP,AVI
Resolution: 720X480 Power Supply: Rechargeable Li-On Battery
External Power: 110V~220V AC 50/60HZ, Output DC 5V 500MA Working Time: 3 Hours For Continuous Working

USB Or WIFI Connection Handheld Video Otoscope Ophthalmoscope Set 3 Lenses Optional





Feature

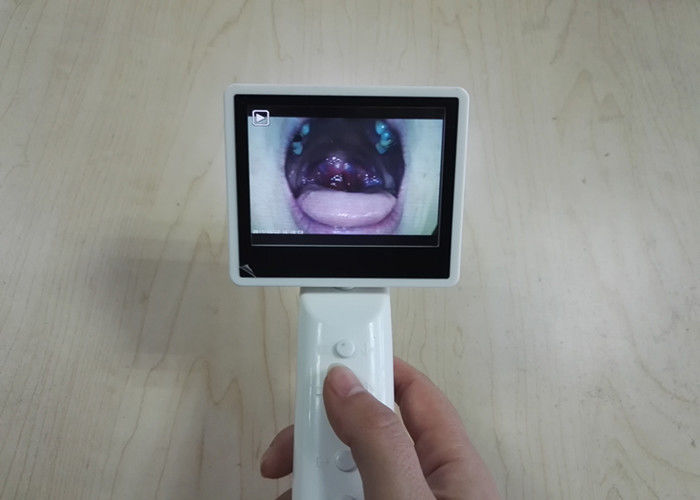

1. Bigger LED Screen 3.5 inch with 720*480 resolution
2. Never hot lens with 300 thousand pixel
3. Disposable earmuff
4. Wi-Fi built-in

5. examine external ear and middle ear

6. cerumen, otitis media, ear infections, perforation of tympanic membrane checking

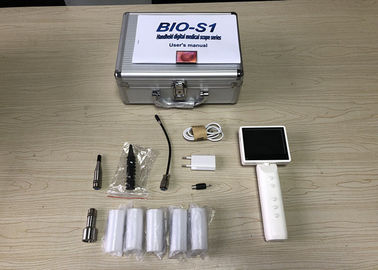

7. Small & Light to hold, Easy to carry with aluminum box

8. Otoscope, Rhinoscope, Laryngoscope three lens Optional

9. Rechargeable Li-On battery to ensure 4 hours continuous working at least





Specification





Digital Otoscope Specifications

Handheld Device

Main Machine
Package Size 30*25*16cm
Net Weight 260g
Intended use Digital Otoscope
Using method Hand-held digital otoscope
Image System Light source Nature white LED light
Focus range 20 ~ 60 mm
Camera CMOS
Resolution 720 x 480 pixels (VGA)
Focus system Fixed
Earcap No.4 (4.0 mm)
Display Intergrated display Full color TFT-LCD
Live image export AV out
Storage type TF card (1GB)
Image mode Photo
Format JEPG
Data transmit USB
Power Battery 3.7 V/ 2200mAH Li-ion Battery with safety protection
power supply 100V-240V AC50/60HZ DC IN+5V 1A
Energy save Yes





Function





Otoscope lens Examine ear’s canal and tympanic membrane
Rhinoscope lens Examine nasal cavity
Laryngoscope lens Examine throat



Lens Digital Otoscope (ear inspection) Digital Laryngoscope (throat inspection) Digital Rhinoscope (nasal inspection)
Focus range 10~50 mm 80~160mm 10~50 mm
Diameter 5.5mm 230mm 5.5mm
Length 70mm 70mm 250mm
Weight 31g 62g 31g






USB Or WIFI Connection Handheld Video Otoscope Ophthalmoscope Set 3 Lenses Optional

USB Or WIFI Connection Handheld Video Otoscope Ophthalmoscope Set 3 Lenses OptionalUSB Or WIFI Connection Handheld Video Otoscope Ophthalmoscope Set 3 Lenses OptionalUSB Or WIFI Connection Handheld Video Otoscope Ophthalmoscope Set 3 Lenses Optional





E-catalogue of digital endoscope BIO_S1.pdf

User's manual for handheld digital medical otoscope S1.pdf
