3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional

3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional

  • 3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional
  • 3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional
  • 3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional
  • 3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional
  • 3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional
3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional
Product Details:
Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: S1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: 1 unit/carton (28*22*14cm) NW:0.26KG GW:1.35KG
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month
Contact Now
Detailed Product Description
Resolution: 720X480 Light Source: Natural White(LED)
LCD: 3.5 Inches Special LCD Screen File Format: JPEG,BMP,AVI
Media: Micro SD Flash Card Interface: 1 Mini USB,1 AV-OUT,1 SD Card Slot
PPower Supply: Rechargeable Lithium Battery Xternal Power: 110V~220V AC 50/60HZ, Output DC 5V 500MA
Working Time: 3 Hours For Continuous Working Charging Time: 5 Hours
High Light:

digital otoscope

,

video otoscope

3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Imaging Rhinoscope Laryngoscope Optional



3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional 0

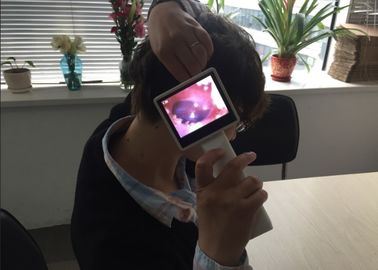

BIO medical scope S1 is a digital handheld scope used to record digital photographs and videos with different lens.
It is mainly used in hospital, Clinic and medical departments for doctors and nurses to examine ear, nasal and throat.



Product Feature


1. Specially designed for the department of ENT. It can be used to examine eardrum, nasal cavity and throat with different camera probe.
2. Avoid high cost of the traditional ENT examination equipment, such as light source, CCD, Monitor etc.
3. Light weight and portable, suitable for outpatient department, emergency room and medical ward.
4. High resolution image. The SD card can store multiple freeze images and videos, and can be connect to computer to print patient reports.

5. 3.5 inch high definition LCD screen, watching and taking photos at the same time.

6. it can be connected to large size monitor, synchronized to the big screen.



Otoscope lens                     Examine ear’s canal and tympanic membrane
Rhinoscope lens                 Examine nasal cavity
Laryngoscope lens             Examine throat



Lens Digital Otoscope (ear inspection) Digital Laryngoscope (throat inspection) Digital Rhinoscope (nasal inspection)
Focus range 10~50 mm 80~160mm 10~50 mm
Diameter 5.5mm 230mm 5.5mm
Length 70mm 70mm 250mm
Weight 31g 62g 31g



Product Specification



Resolution 720X480
Light source Natural white(LED)
LCD 3.5 inches special LCD screen
Minimum color difference for different viewing angle
File format JPEG,BMP,AVI
Media Micro SD flash card
Interface 1 mini USB,1 AV-OUT,1 SD card slot
Power supply rechargeable lithium battery
External power 110V~220V AC 50/60HZ, Output DC 5V 500MA
Working time 3 hours for continuous working
Charging time 5 hours

















I































Product Images



3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional 1



3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional 2

3.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional 33.5 Inch Screen Medical USB Digital Video Otoscope Camera With Clear Image Rhinoscope Laryngoscope Optional 4



E-catalogue of digital endoscope BIO_S1.pdf

User's manual for handheld digital medical otoscope S1.pdf
