| Place of Origin: | China |
| Brand Name: | BIO |
| Model Number: | U2 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Carton (40*20*25cm) 2kgs |
| Delivery Time: | 7 working - days since getting full payment |
| Payment Terms: | Credit card, Paypal, T/T |
| Supply Ability: | 100 units / month |
| Screen: | 6 Inch LCD Full Touch Screen | Resolution: | 1280*720 |
|---|---|---|---|
| Probe Type: | 128 Elements | Frequency: | Convex Array 2-5MHz/Linear Array 5-10MHz |
| Imaging Modes: | B,C,M,PW,Steer | Color Doppler: | Gain,Steer,PRF,WF,etc |
| Cine-loop: | 1024 Frames | Depth: | Convex:≤200mm/Linear:≤70mm |
| High Light: | hand ultrasound machine,handheld ultrasound probe |
||
Portable Handheld Pocket Color Doppler Wireless Ultrasound Probe for All Kinds of Application
BIO U2, a pocket-sized ultrasound scanner that provides real-time grayscale anatomic and color Doppler blood flow images with touch screen. It is the preliminary screening tool for you-from patient to patient--within your primary, critical, or specialty care clinical environment

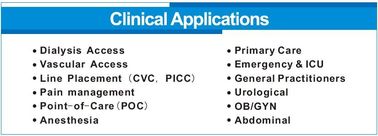

Applications
| Dialysis Access | Primary Care | Vascular Access |
| Emergency &ICU | Line Placement (CVC. PICC) | General Practitioners |
| Pain management | Urological | Point-of-Care(POC) |
| OB/GYN | Anesthesia | Abdominal |
Advantage
| 1. | Detect pericardial effusion, chest fluid or internal bleeding at ER or in ambulance, enabling prompt initiation of treatment. |
| 2. | View fetus as they grow |
| 3. | Detect fetal heart beats |
| 4. | Monitor the amount of Amniotic fluid during delivery |
| 5. | Find plaque in Carotid, avoid stroke before it strikes |
| 6. | Place lines in veins with visual confidence |
| 7. | Find nodules in thyroids, livers or breasts during screening |
| 8. | Monitor stones in kidneys, gall bladders and bladders |
| 9. | Verify bone fractures without X-ray |
Specifications
| 1. | Monitor | 6 inch LCD full touch screen |
| 2. | Resolution | 1280*720 |
| 3. | Probe Type | 128 elements |
| 4. | Frequency | Convex array 2-5MHz/Linear array 5-10MHz |
| 5. | Imaging Modes | B,C,M,PW,Steer |
| 6. | Color Doppler | Gain,Steer,PRF,WF,etc |
| 7. | Cine-loop | 1024 Frames |
| 8. | Frame Rate | Convex:16fps/Linear:24fps |
| 9. | Depth | Convex:≤200mm/Linear:≤70mm |
| 10. | Gray Gain | 256 level |
| 11. | Gain | Convex:0~150dB adjustable Linear:0~120dB |
| 12. | Color Gain | 0~100dB adjustable |
| 13. | Image Processing | Line smoothing,Frame smoothing,Transversal filter,Longitudinal filter,Sharpening,Gamma transformation,etc |
| 14. | Power | Builder-in battery(5400mAh)to support 2h for continuous scanning |
| 15. | Image Format | JEPG,DICOM |
| 16. | Language | Over 60 different language including English,Spanish,German etc |
| 17. | Measurement | Length,Area,Arrow,Angle,Perimeter,Text. |
| 18. | Camera | 5M auto focus |
| 19. | Wireless Connection | WIFI,Bluetooth,3G/4G(LTE/WCDMA/EDGE/GPRS/GSM) |
| 20. | Memory | 64GB |
| 21. | Connection Interface | Micro USB2.0,HDMI,3.5mm headphone jack |
| 22. | Operating System | Android |
| 23. | Printer | WIFI printer |
| 24. | File Management | Patient file&image file |
| 25. | Cloud | Cloud image storage,cloud file management,standard API&SDK interface,Information sharing platform |
| 26. | Technical Training | Online and offline tutorial,self-built online training material |
| 27. | Remote Software Update | Yes |
| 28. | Size | 165*85*23mm |
| 29. | Weight | Convex:570g/Linear:550g |
Standard configuration
| 1. | Ultrasound machine host | 1 pc |
| 2. | Ultrasound probe | 1 pc |
| 3. | Power adapter | 1 pc |
| 4. | Power data line | 1 pc |
| 5. | Special package | 1 pc |
Character
| 1. | Color Doppler, fast boot |
| 2. | High resolution image, easy to operate |
| 3. | Customized clinical professional software |
| 4. | Long battery life |
| 5. | Remote analysis and diagnostic services |
| 6. | Freeze the original data and then analyze |
| 7. | Wireless channel (3G / 4G, WIFI) |
| 8. | Intelligent operating system, full touch operation interface |
| 9, | AI artificial intelligence voice intervention |
| 10. | Remote video live broadcast |
| 11. | Large memory for data cloud storage |
| 12. | Small design, easy to carry |
| 13. | Thyroid carotid artery screening, artificial intelligence recognition real-time guidance |
| 14. | Speckle noise suppression technology |
Images
