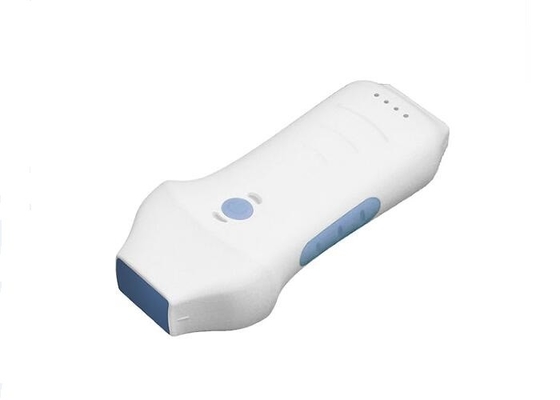

Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz

Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz
Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz

Large Image :  Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz

Product Details:
Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: W6
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Carton (240x235x100mm), 1.1Kgs/carton
Delivery Time: 7 Working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 units / month

Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz

Description
Frequency: 2.2-3.6mhz, 7.5/10mhz Depth: 90-190mm, 20-100mm
Host: Tablet, Smart Phone, PC Display Mode: B, B/M, Color, PW, PDI
Connection: WIFI & USB Battery Lasts: 3-4 Hours
Weight: 200g Application: Handheld Phased Array Probe
High Light:

Mobile Ultrasound Scanner Phased Array

,

Mobile Ultrasound Scanner 3.6 mhz

,

Mobile Ultrasound Scanner 100mm

Mobile Ultrasound Scanner Phased Array Probe Wireless Portable Ultrasound Scanner Frequency of 2.2-3.6mhz & 7.5/10mhz



Wireless Portable ultrasound scanner can be used by wired or wireless connection to mobile phones/ipad/PC.

It is IPX7 waterproof, you can scan whole body part anytime anywhere.

Latest pocket wireless Cardiovascular ultrasound, multipurpose dual head linear+cardiac ultrasound probe

can provide you with HD heart images.

You can do Heart function assessment with dual head cardiac ultrasound.



Specification



1 Product name Dual heads Multipurpose Ultrasound linear+phased probe
2 Elements 128
3 Frequency 2.2-3.6mhz, 7.5/10mhz
4 Depth 90-190mm, 20-100mm
5 Host Tablet, Smart phone, PC
6 Connection 802.11.n WIFI(AP)
7 Software Adjustable Parameters GN(gain), D(Depth), ENH(Enhancement), DR(Dynamic range), F(Frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right/up/down.
8 Measurement

B: Length,Area/Circumference,Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC), EFW(BPD,FL)

B+M:

Heart Rate, Time, LVIDd, LVIDs, SV, EF, Distance

B+PW:

Velocity, Heart Rate(2), S/D, Depth

Auto vessel flow measure: TAMEAN, Flow, Diam

9 Playback Frames 100, 200, 500, 1000 optional
10 Image Gray Scale 256 level
11 Display Mode B, B/M, color, PW, PDI
12 Image Save jpg, avi, Mp4 and DICOM format
13 WiFi Type Built-in WiFi, 802.11g/20MHz/5G/450Mbps
14 Channel 64
15 Frame 24s/f
16 Gain 40-110Db
17 Language English, Chinese,Russian, German, Italian, Spanish, Portuguese
18 Power by built-in battery
19 Power Consumption 4W (probe run) /1.5W (probe stop)
20 Battery Replaceable Yes
21 Battery Last 3hours (Working time), 12 hours(Stand by time)
22 Charger USB Charger, wireless charger



Standard Configuration



1 Wireless probe 1pc
2 USB cable 1pc
3 Power Plug 1pc
4 Wireless charger 1pc
5 Wrist strap 1pc
6 Portable aluminium alloy box 1pc
7 User's Manual_E format 1pc
8 Warranty Card_Eformat 1pc



Images



Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz 0



Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz 1

Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz 2



Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz 3



Features



1

       Wireless charger, USB charger.

2

       Compatible with IOS Android Windows system, available tablet, laptop,

       mobilephone, PC, etc.

3

 Fashion design, waterproof function and prevent probe from getting hot.

4

 2 batteries for longer usage time



Service



- After-sale Service

  1. Please provide us with a video to identify the problem.
  2. If you encounter software problems, we will guide you how to solve them, and if necessary, our professional engineers will upgrade the software.
  3. If you encounter hardware problems, it will be repaired free of charge during the warranty period.

- Return Policy



It must be ensured that the product is free of any damage and the product is complete;

secondly, the return shipping and customs clearance costs of the product are borne by the buyer and

refunded after deducting these costs.



-Warranty Policy

We provide an 18-month warranty period. If there is any quality problem during the warranty period,

it needs to be sent to our company's address for free repair.



- Shipping Info



Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz 4  Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz 5

Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz 6Mobile Ultrasound Scanner Phased Array Probe Wireless Portable 3.6mhz 7.5/10mhz 7
