Product Details:
|
| Scan Mode: | B, B+M | Frequency: | 7.5-10MHz Linear, 3.5-5MHz Convex |
|---|---|---|---|
| Elements: | 128 Elements | Scanning Depth: | 40-100mm Linear, 90-200mm Convex |
| Measurement: | B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) B+M: Heart Rate, Time, Distance | Supporting System: | IOS, Android, Windows |
| Weight: | 235g | Size: | 160(h)*70(w)*30(d)mm |
| High Light: | hand ultrasound machine,handheld ultrasound probe |
||

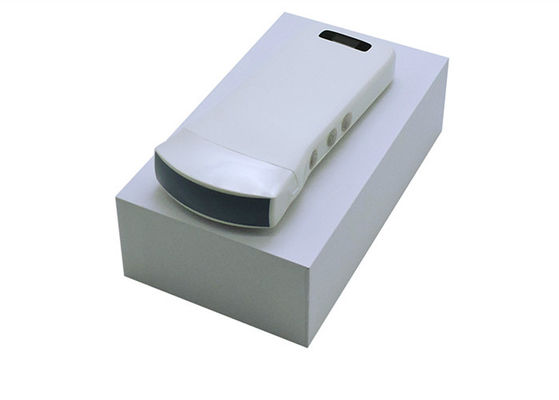

Clinical Diagnosis Black And White Handheld Ultrasound Scanner Support IOS Android Windows Only 235g Weight
We are a medical ultrasound company engaged in R&D , production, sale and after-sales service.
We persistently cooperated closely with domestic and international famous medical ultrasound R&D organization
and keep in contact with related university ,labs professors and doctors to update latest data of ultrasound machines ,
also professional clinical applications experience.
W3 Ultrasound Scanners are wireless and working with a mobile app that is compatible with most iOS and Android smart devices
as well Windows system. Imaging transmission is done by internal 5G wifi , no external networks needed and work for most specialties
in hospitals , clinics, healthcare center etc.
Advantage
Unlimited users, Free software, No hidden fees, Support printing reports,
Multi-languages: Chinese English Russian Italian Spanish Portuguese
Specification
| Item | 1 | 2 | 3 |
| Photo |  |
|
|
| Type | Convex | Linear | Linear |
| Frequency | 3.5-5MHz | 7.5-10MHz | 10-12MHz |
| Depth | 90-200mm | 40-100mm | 20-50mm |
| Elements | 128 | 128 | 128 |
| Radius | R60 | N/A | N/A |
| Length | N/A | 45mm | 28mm |
| Dimensions | 160(h)*70(w)*30(d)mm | 157(h)*70(w)*30(d)mm | 157(h)*70(w)*30(d)mm |
| Package size | 240(h)*235(w)*100(d)mm | 240(h)*235(w)*100(d)mm | 240(h)*235(w)*100(d)mm |
| Net weight | 235g | 217g | 210g |
| Gross weight | 1.1kgs | 1.1kgs | 1.1kgs |
| Wifi type | 802.11g/20MHz/2.4G | 802.11g/20MHz/2.4G | 802.11g/20MHz/2.4G |
| Working system | Android,iOS,Windows | Android,iOS,Windows | Android,iOS,Windows |
| Software controls |
GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) Mode B,B/M Biopsy Page Left/Right Up/Down |
GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) Mode B,B/M Biopsy Page Left/Right Up/Down |
GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) Mode B,B/M Biopsy Page Left/Right Up/Down |
| Measurement |
B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) B+M: Heart Rate, Time, Distance |
B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) B+M: Heart Rate, Time, Distance |
B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) B+M: Heart Rate, Time, Distance |
| Applications | Abdominal, Emergency cardiac, Urology, Obstetrics, Gynecology,Lung, Kidney | MSK Breast Thyroid Superficial, Vascular Pediatrics Carotid, Small Parts | MSK Breast Thyroid Superficial, Vascular Pediatrics Carotid, Small Parts |
| Language | Chinese,English,Russian,Italian,Spanish,Portuguese(Brazil) | Chinese,English,Russian,Italian,Spanish,Portuguese(Brazil) | Chinese,English,Russian,Italian,Spanish,Portuguese(Brazil) |
| Battery life | 5-8 years | 5-8 years | 5-8 years |
| Voltage | 3.8v | 3.8v | 3.8v |
| Replaceable | Yes | Yes | Yes |
| Capacity | 4200mAh | 4200mAh | 4200mAh |
| Standby | 12h | 12h | 12h |
| Bootup | Platform dependent, generally <5 seconds | Platform dependent, generally <5 seconds | Platform dependent, generally <5 seconds |
Standard Configuration
| 1 | Wireless probe | 1pc |
| 2 | USB charger | 1pc |
| 3 | Plug | 1pc |
| 4 | Wireless charger | 1pc |
| 5 | Wrist strap | 1pc |
| 6 | Portable aluminium alloy box | 1pc |
