Product Details:
|
| Type: | Electronic Endoscope | Instrument Classification: | Class II |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Video Vagina Colposcope |
| Application: | GYN,Gynecology,vagina And Cervix | ||
| High Light: | digital colposcopy,portable colposcope |
||
High Definition Display Digital Electronic Colposcope Portable Device to Check Cervix and Vagin
Standard Configurations
| 1 unit | main unit |
| 2 pcs | disposable heads (one small size + one middle size) |
| 1 pc | cable connected to Television |
| 1 pc | user's manual |
General Descriptions
| Image transmit | AV output, connect to TV |
| Examination type | Performing cervical self-examination at home |
| Advantage |
Electronic colposcope, advanced technology Discover earlier , healthy more Monitor treatment and prevent recurrence The privacy is under your control Echo-friendly & easy use |
Specifications
| Power Supply | DC 4.5V, AAA batteries (×3) | |
| Output Signal | PAL color system, AV(video)signal | |
| Normal Working Conditions | temperature:15°C—30°C | |
| humidity:≤93%RH | ||
| pressure:700hPa—1060hPa | ||
| Conditions of Storage and Transport | temperature:-20°C~+45 °C | |
| humidity:90%RH | ||
| pressure:700hPa—1060hPa | ||
| Weight | about 50g (batteries non-included) | |
| Dimensions (L×W×H mm) | 126×40×34 | |
| Safety Class | internal battery BF | |
| Technical Index | effective range of observation | 70mm~100mm |
| angle of observation | 20°, permit error -10%,no upper limit | |
| resolution | 2.5 lp/mm, permit error -10%,no upper limit | |
Disposable head
|
size parameters |
S | M | Notes | |
|
Outline Dimension |
Length (movable bill) | 98±2 | 109±2 |
Size S is for female before childbirth or age above 50s Size M is for female after childbirth and age below 50s. |
| Width (of the bill) | 20±1 | 27±1 | ||
| Height of Front Outside Mouth | Minimum | 31±5 | 40±5 | |
| Maximum | 60±5 | 67±5 | ||

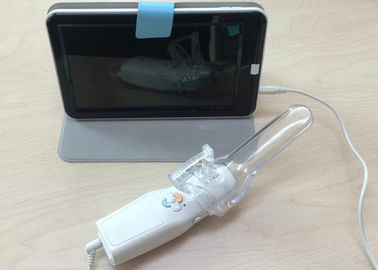

Photoes of actual unit
