Product Details:
|
| Power Supply: | DC 4.5V, AAA Batteries (×3) | Output Signal: | PAL Color System, AV(video)signal |
|---|---|---|---|
| Safety Class: | Internal Battery Source, BF Type | Angle Of Observation: | 20°, Permit Error -10%,no Upper Limit |
| Effective Range Of Observation: | 70mm~100mm | Memory: | ≥16M |
| Resolution: | 2.5 Lp/mm, Permit Error -10%,no Upper Limit | ||
| High Light: | digital colposcopy,electronic colposcope |
||

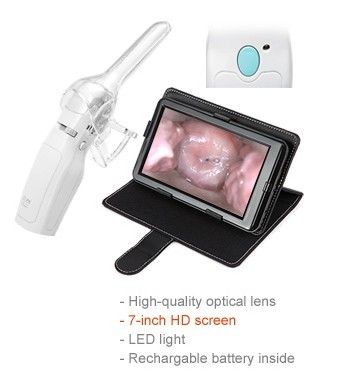

Vaginal Camera for Women Care Digital Mini Colposcope 1.5 Times Magnification 10cm Observation Distance
Quick Details
Self-inspection
AV/USB output,connect to TV/Computer
Store function
Echo-friendly&easy use
High definition display
Standard Configurations
| 1 pc | main unit |
| 2 pcs | disposable heads (one small size + one middle size) |
| 1 pc | cable connected to Television |
| 1 pc | USB cable |
| 1 pc | user's manual |
Optional
| 1 pc | TF Card |
| 1 unit | 10 inch or 7 inch Medical Screen |
| 1 pc | Black bag |
Power Supply | DC 4.5V, AAA batteries (×3) | |
Output Signal | PAL color system, AV(video)signal | |
Normal Working Conditions | temperature:15°C—30°C | |
humidity:≤93%RH | ||
pressure:700hPa—1060hPa | ||
Conditions of Storage and Transport | temperature:-20°C~+45 °C | |
humidity:90%RH | ||
pressure:700hPa—1060hPa | ||
Weight | about 50g (batteries non-included) | |
Dimensions (L×W×H mm) | 126×40×34 | |
Safety Class | internal battery source, BF type | |
Technical Index | effective range of observation | 70mm~100mm |
angle of observation | 20°, permit error -10%,no upper limit | |
resolution | 2.5 lp/mm, permit error -10%,no upper limit | |
Memory | ≥16M | |
Disposable head
size | S | M | Notes | |
| Length (movable bill) | 98±2 | 109±2 | Size S is for female before childbirth or age above 50s |
Width (of the bill) | 20±1 | 27±1 | ||
Height of Front Outside Mouth | Minimum | 31±5 | 40±5 | |
Maximum | 60±5 | 67±5 | ||

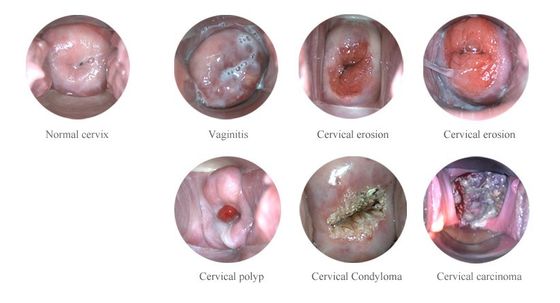

Photoes by Mini Colposcope
Photoes of Disposable heads
E-catalogue of mini-colposcope_BS2.pdf
User Guide for BIO_BS2 Mini Colposcope.pdf
