Product Details:
|
| Display Mode: | 4B; M; B/M; CFM; PDI; PW; THI | Screen: | 10.4 Inch Color LED Monitor |
|---|---|---|---|
| Probe Connector: | 2 | U-disk Capacity: | 16G |
| Weight: | Approx. 4.5kg(excluding Accessories) | Size: | Approx. 256*150*326(mm, L*M*H) |
| Report: | OB, Cardio, Urological Report | Language: | English/Chinese |
| High Light: | portable ultrasound equipment,portable ultrasound device |
||

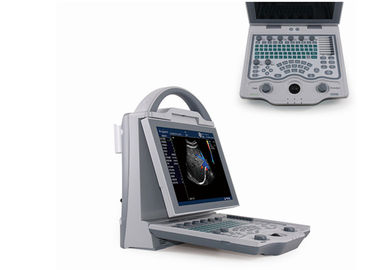

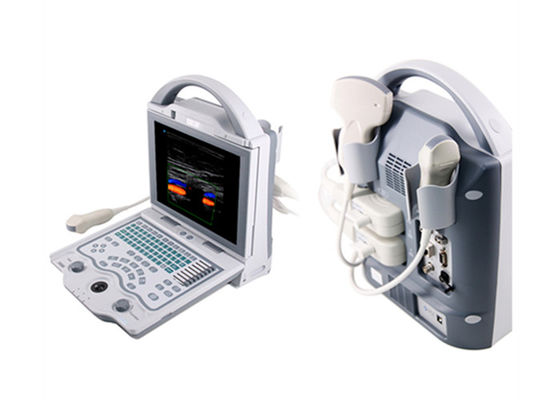

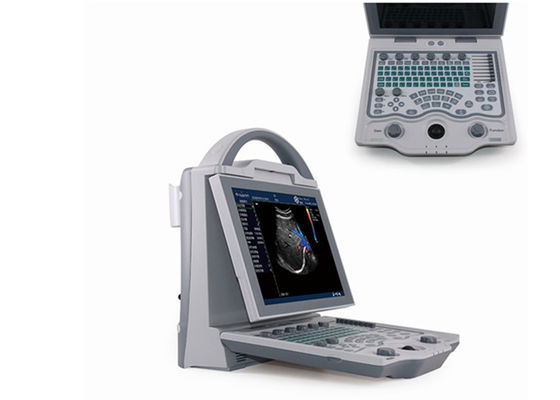

Digital Color Doppler Portable Ultrasound Equipment With PW CFM THI Mode
Product Introduction
BIO 5000C is a portable Color Doppler,designed and produced by our professional team,leading image process technical and advanced and practical clinic solution method. It’s highly cost effective and reliability. It’s the ideal option for primary hospitals,clinics,etc.
Measurement report
OB measurement report, GYN measurement report, cardiac measurement report, urology measurement report and other measurement report, automatically store the measurement result and generate report.
Reasonable Humanization Design
1. 10.4 inch color LED full screen display,angle adjustable
2. One-key-light keyboard function for black room use
3. One button operation including one-key storage image/ review/print,etc
4. Quick look up stored image function to improve work efficiency
5. Multifunctional knob design,achieve one-key quick adjustable in multi-mode
Powerful Data Management
1. Optimize checking image function,realize 1-2 second response
2. Intelligent user defined,one-key review and storage function
3. Neoteric internal workstation multi-plan module,quickly finish data,report,realize process multi medical histories function
Digital Specification
| Monitor | 10.4 inch color LED monitor |
| Operation Mode | 4B; M,B/M; CFM; PDI; PW; THI |
| Gray / Color scale | 256 |
| Adapter rating | 100-240V~1.2-6.0A |
| Power Frequency | 50-60Hz |
| Output of adapter | DC12.8V 3.0A |
| Power consumption | ≤100VA |
| Main unit size | approx. 256*150*326(mm, L*M*H) |
| Weight of main unit | approx. 4.5kg(excluding accessories) |
| Report | OB, Cardio, Urological report |
| U-disk capacity | 16G |
| Dual-mode TV output | PAL/NTSC |
| Probe connector | 2 |
| Language | English/Chinese |
| Operation mode | B,B/B,4B mode,M,B/M mode |

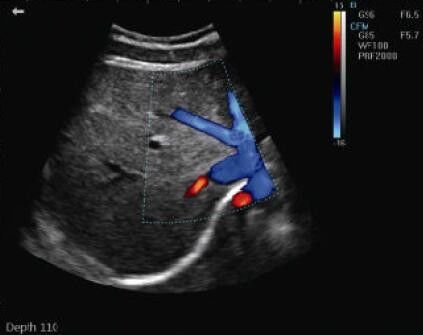

| Color flow mode(CFM) | |

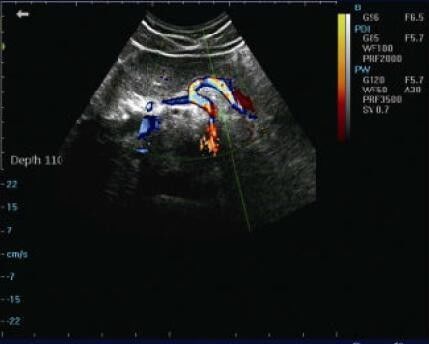

| Power Doppler mode(PDI) | |
| Pulsed-wave Doppler(PW) | |
| Tissue harmonic imaging(THI) | |
| Ultrasonic imaging technology | 1. High precision digitizing continued wave former |
| 2. Dynamic frequency blend imaging technology | |
| 3. High precision delay point-by-point dynamic receiving focus | |
| 4. Ultra-broadband imaging technology | |
| 5. Automatic optimizing process image technology | |
| 6. Automatic vessel imaging technology | |
| 7. Automatic Doppler imaging technology | |
| 8. THI structure harmonic imaging technology |
| Standard configuration | Optional configuration |
| Main unit:1 pc | 6.5MHz multi-frequencyMicro-Convex probe:1pc; |
| probe sockets:2 | 7.5MHz multi-frequency high linear probe:1pc; |
| 3.5MHz convex probe:1pc | Video printer |
| CD: 1pc | Trolley |
| Reticle: 1pc |
