Product Details:
|
| Mode: | B, B+M, PW, Color Doppler, Power Doppler | Software: | Download Software From APP Store / Google Play |
|---|---|---|---|
| Available System: | Windows, Android, IOS (Tablet, Smart Phone, PC) | Language: | Chinese, English, Russian, Italian, Spainish, Portuguese |
| Connection: | USB Or Wifi Both OK | Function: | GN(gain), D(Depth), ENH(enhancement), DR(dynamic Range), F(frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page Left/right, Up/down |
| Measurement: | Lengh, Area/circumference, Angle, Trace, Distance, GA(CRL,BPD,GS,FL,HC,AC) EFW(BPD,FL), Heart Rate, Time, Distance, Velocity, Heart Rate(2), S/D, Depth | Frequency: | Linear: 7.5/10MHz, Convex: 2.5/5MHz, 3.5/5MHz |
| Product Name: | Ultrasound Probe | HZ: | 2.5MHZ |
| High Light: | Handheld USB WIFI Ultrasound Probe,Dual Heads Handheld Ultrasound Probe,Convex Linear Phased Handheld Ultrasound Probe |
||

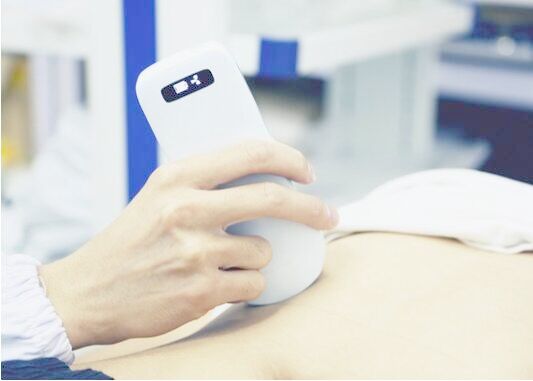

Handheld USB+WIFI Ultrasound Probe with Dual Heads Convex Linear Phased 3 In 1 Color Doppler
What are the different modes in ultrasound?
These are: A-mode: A-mode is the simplest type of ultrasound. A single transducer scans a line through the body with the echoes plotted on screen as a function of depth. Therapeutic ultrasound aimed at a specific tumor or calculus is also A-mode, to allow for pinpoint accurate focus of the destructive wave energy.
3 IN 1 probe is used widely in clinic, hospital ward, emergency room, or operation theater, easy to carry, convenient to operation.
It can be conected to tablet, smart phone, PC etc via WIFI or USB cable, Windows / Android / IOS system are all avaiable.
Download our ultrasound software from APP store / Google Play.
You can scan anybody anytime anywhere conveniently in time.
Specification
| 1 | Mode | B, B+M, PW, Color Doppler, Power Doppler |
| 2 | Frequency | Linear: 7.5/10MHz, Convex: 2.5/5MHz, 3.5/5MHz |
| 3 | Depth | Linear: 20-100mm, Convex:L90-160mm, 90-305mm |
| 4 | Transducer | Dual heads (Convex & Linear) |
| 5 | Connection | USB or Wifi both OK |
| 6 | Software | Download software from APP store / Google Play |
| 7 | Language | Chinese, English, Russian, Italian, Spainish, Portuguese |
| 8 | Function | GN(gain), D(Depth), ENH(enhancement), DR(dynamic range), F(frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right, up/down |
| 9 | Measurement | Lengh, Area/circumference, Angle, Trace, Distance, GA(CRL,BPD,GS,FL,HC,AC) EFW(BPD,FL), Heart rate, Time, Distance, Velocity, Heart Rate(2), S/D, Depth |
| 10 | Battery | 2800mAh Working time >3h, Standby time: >12h |
| 11 | Length | 125mm |
| 12 | Net Weight | 90g |
Standard Configuration
| 1 | Wireless probe | 1pc |
| 2 | USB cable | 1pc |
| 3 | Power Plug | 1pc |
| 4 | Wireless charger | 1pc |
| 5 | Wrist strap | 1pc |
| 6 | Portable aluminium alloy box | 1pc |
| 7 | User's Manual_E format | 1pc |
| 8 | Warranty Card_Eformat | 1pc |
