Product Details:
|
Product Name: | Pocket Ultrasound Scanner | Material: | Plastic |
---|---|---|---|
Frequency: | 7.5-10MHz Linear | Depth: | 20-100mm |
Display Mode: | B, B+M,B+Color,B+PW, B+Color+PW, PDI | Applications: | Small Parts, Thyriod, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve |
Measurement: | B: Length, Area / Circumference, GA (CRL, BPD, GS, FL, HC, AC) B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth | Working System: | Android/IOS/Windows System |
High Light: | Color Doppler Pocket Ultrasound Scanner,7.5MHz Linear Ultrasound Scanner,Wifi USB Ultrasound Probe |

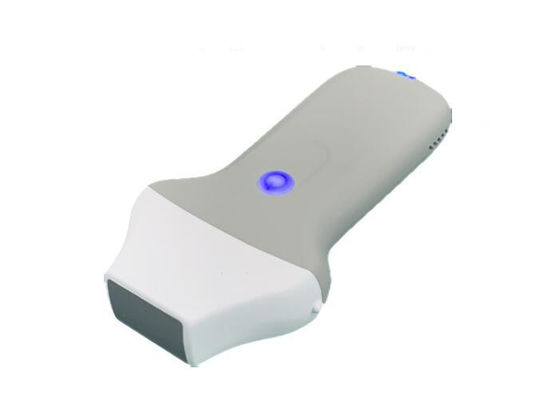

Color Doppler Pocket Ultrasound Scanner Wifi & USB Ultrasound Probe IPhone/IPad Ultrasound 7.5-10MHz Linear
What are portable ultrasounds used for?
Currently portable ultrasound machines are used in Cardiac, Vascular, Radiology, Endocrinology, Pediatric, Gastroenterology and OB/GYN applications. In addition, EMS personnel from several countries including Germany, Italy, France, and the United States have used portable ultrasound evaluations in the field.
Specification
1 | Scanning Mode | Linear array probe |
2 | Probe element | 96 |
3 | Frequency | 7.5 / 10 MHz |
4 | Depth | 20~100mm |
5 | Display mode | B, B/M, B+Color, B+PW, B+Color+PW, PDI |
6 | Application | Small parts, Thyriod, Pediatrics, Vascular, Carotid, Breast, MSK, Nerve |
7 | Measure |
B: Length, Area / Circumference, GA (CRL, BPD, GS, FL, HC, AC) B+M: Heart rate, time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth |
8 | Lengh | 45mm |
9 | Wifi type | 802.11g/20MHz/5G |
10 | Working system | Apple IOS and Andriod, Windows |
11 | Voltage | 3.8V |
12 | Battery Capacity | 1350mAh (working time 1.5~2h) |
13 | Battery life | 5~8 years |
14 | Battery charge | by USB cable / wireless charge |
15 | Dinemsion | 115(h)*60(w)*20(d)mm |
16 | Weight | 102g |
Standard Configuration
1 | Wireless ultrasound probe | 1pc |
2 | USB A male to Type-C Female adaptor | 1pc |
3 | Portable wireless charger | 1pc |
4 | USB Cable for charging | 1pc |
5 | Type-C cable | 1pc |
Optional
1 | ipad Torlley | 1pc |
Who we are ?
We are a medical ultrasound company engaged in R&D , production, sale and after-sales service.
We persistently cooperated closely with domestic and international famous medical ultrasound R&D organization
and keep in contact with related university ,labs professors and doctors to update latest data of ultrasound machines ,
also professional clinical applications experience.
What equipment we have ?
Wireless ultrasound, USB ultrasound,3 in 1 wifi probe, iPhone/iPad ultrasound, veterinary equipment.
How can we guarantee quality ?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
12 months guarantee for every unit since you get the unit.
