Product Details:
|
Lens Resolution: | 1/4"super HAD Color CCD,80,0000 Pixel | Lens Axial Resolution: | 470 Lines |
---|---|---|---|
Lens Focus Distance: | Standard 100~400mm; Support: 10~1000mm | Lens Zoom: | 1~128 |
Lens Image Output Interface: | Video, S-video, PAL | ||
High Light: | digital colposcopy,electronic colposcope |

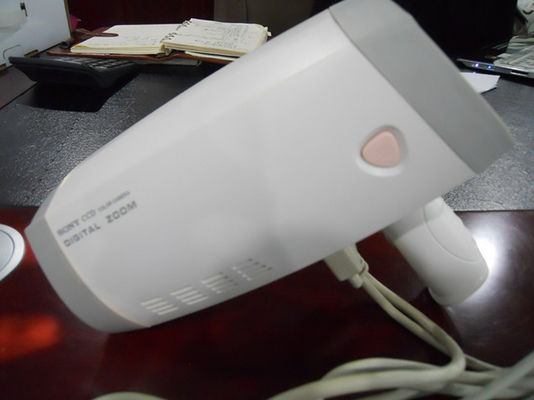

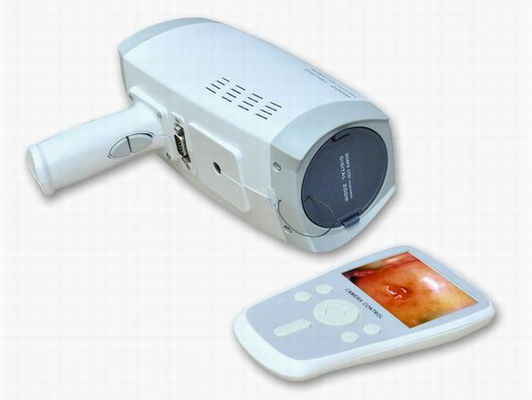

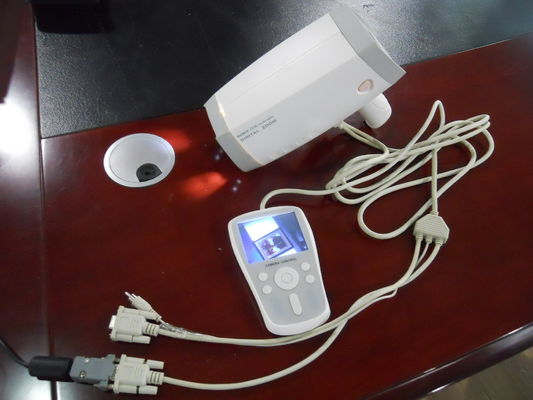

Lens Resolution 800000 Pixels Digital Electronic Colposcope With Automatic Electronic Shutter 3.5 Inch Handheld Screen
Standard Configuration | Optional |
Colposcope | Monitor |
Camera control screen | SONY UP-897MD thermal Printer |
Trolley/Tripod, Software |
Specifications
Lens resolution | 1/4"super HAD color CCD,80,0000 pixel |
Lens axial resolution | 470 lines |
Lens S/N | 50dB |
Lens focus distance | standard 100~400mm; support: 10~1000mm |
Field of View | 2.5mm-20mm-320mm |
Depth of Field | 15mm-40mm 15mm-480mm |
Lens min illumination | 0.15Lux |
Lens zoom | 1~128 |
Lens image output interface | Video, S-video, PAL |
Lens fouse | AF/MF |
Lens white balance | AWB |
Lens lighter type | LED ring , phosphorus gallium arsenide high brightness , longevity light source group (average life 100,000 hours) |
Lens video-output | PAL, VBS-standard 1.0Vp-p |
Power Requirements | AC220V ±10% |
Power Rating | 500W |
Brightness adjustment | Automatic electronic shutter |
Ambient temperature | -40°C to +50°C |
Storage temperature | -20°C to +60°C |
Relative Humidity | 30~80%RH |
