Place of Origin: | China |
Brand Name: | BIO |
Model Number: | 3000Q |
Minimum Order Quantity: | 1 unit |
---|---|
Packaging Details: | Carton (50*25*52cm) / 10.5Kg |
Delivery Time: | 7 working - days since getting full payment |
Payment Terms: | Credit card, Paypal, T/T |
Supply Ability: | 100 units / month |
Product Name: | 3D Ultrasound Scanner | Type: | Doppler Ultrasound Equipment |
---|---|---|---|
Probe Connector: | 2 | Battery: | Built-in Working For 5 Hours Continuously |
Image Store: | By Hardisk Or USB Disk | Dimension: | 362mm×340mm×60mm |
Net Weight: | 4.8kg | Warranty: | 12 Months |
High Light: | white Portable Laptop Ultrasound Machine,BIO Portable Laptop Ultrasound Machine,Abdomen3D Ultrasound Scanner |

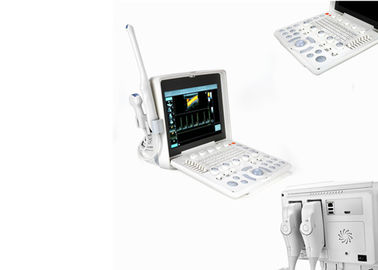

BIO Portable Laptop Ultrasound Machine 3D Ultrasound Scanner 256 level gray scale Image
Application
Abdomen / Cardiac / Obstetrics / Gynecology /
Urology / Andrology / Small Parts / Vascular /
Pediatrics / Musculoskeletal
Technical Specification
Maximum Scanning Depth | max. 250mm |
Multi-frequency | 5 segment frequencies |
Scanning mode | B, 2B, B/M, M, 4B, 9B, ZOOM |
Real-time Zoom on B mode | |
Image gray scale | 256 level gray scale |
Image processing | Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision |
Gain | 0-100dB |
Time gain control(TGC) | 8 segment adjustment, B, M adjustment separately |
Measurement and calculation
B mode | distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram |
M mode | heart rate, time, distance, slope and stenosis |
Gynecology measurement | Uterus, cervix, endometrium, L/R ovary |
Obstetric | gestation age, fetal weight, AFI |
Cardiology | LV, LV function, LVPW, RVAWT |
Urology | transition zone volume, bladder volume, RUV, prostate, kidney |
Small parts | optic, thyroid, jaw and face |
Veterinary software(optional) | Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD |
Others
Supported output apparatus | U-Disk, Laser/ink printer, video printer, VGA |
Zoom | 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 |
Image store | by hardisk or USB disk |
3D image function(function) | can get rebuilt 3D image, Optional |
Work time by built-in battery | about 5 hours |
Monitor | 15 inch color LED screen |
Probe Connector | 2 |
Dimension | 362mm×340mm×60mm |
Weight | Around 4.8Kg |
Ultrasound images
