Product Details:
|
| Product Name: | Portable Color Doppler Ultrasound Scanner | Display: | 15 Inch LED Screen |
|---|---|---|---|
| Probe Connector: | 2 | Battery: | Built-in Working For 5 Hours Continuously |
| Image Store: | By Hardisk Or USB Disk | Dimension: | 362mm×340mm×60mm |
| Maximum Scanning Depth: | Max. 250mm | Warranty: | 12 Months |
| High Light: | portable color doppler ultrasound scanner china,Portable Color Doppler Ultrasound Scanner Factory,USB port portable color doppler ultrasound machine |
||

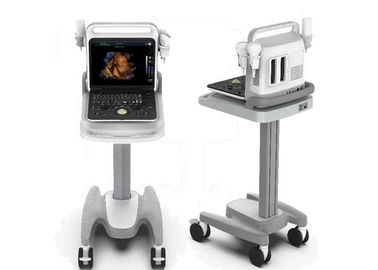

B 2B B/M M 4B 9B ZOOM Portable Color Doppler Ultrasound Scanner
3000Q is a medical portable full digital color doppler b ultrasound scanner/scan/machine price for pregnancy with probe
Technical Specification
| Maximum Scanning Depth | max. 250mm |
| Multi-frequency | 5 segment frequencies |
| Scanning mode | B, 2B, B/M, M, 4B, 9B, ZOOM |
| Real-time Zoom on B mode | |
| Image gray scale | 256 level gray scale |
| Image processing | Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision |
| Gain | 0-100dB |
| Time gain control(TGC) | 8 segment adjustment, B, M adjustment separately |
Measurement and calculation
| B mode | distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram |
| M mode | heart rate, time, distance, slope and stenosis |
| Gynecology measurement | Uterus, cervix, endometrium, L/R ovary |
| Obstetric | gestation age, fetal weight, AFI |
| Cardiology | LV, LV function, LVPW, RVAWT |
| Urology | transition zone volume, bladder volume, RUV, prostate, kidney |
| Small parts | optic, thyroid, jaw and face |
| Veterinary software(optional) | Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD |
Others
| Supported output apparatus | U-Disk, Laser/ink printer, video printer, VGA |
| Zoom | 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 |
| Image store | by hardisk or USB disk |
| 3D image function(function) | can get rebuilt 3D image, Optional |
| Work time by built-in battery | about 5 hours |
| Monitor | 15 inch color LED screen |
| Probe Connector | 2 |
| Dimension | 362mm×340mm×60mm |
| Weight | Around 4.8Kg |
Ultrasound images
