Windows Pocket Ultrasound Scanner Machines Electronic Phased Array

Windows Pocket Ultrasound Scanner Machines Electronic Phased Array
Windows Pocket Ultrasound Scanner Machines Electronic Phased Array
Windows Pocket Ultrasound Scanner Machines Electronic Phased Array Windows Pocket Ultrasound Scanner Machines Electronic Phased Array

Large Image :  Windows Pocket Ultrasound Scanner Machines Electronic Phased Array

Product Details:
Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: W7
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Carton (240x235x100mm), 1.1Kgs/carton
Delivery Time: 7 Working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 units / month

Windows Pocket Ultrasound Scanner Machines Electronic Phased Array

Description
Image Frame Rate: 24 Frames/second Depth: 90/130/160/190mm
Display Mode: B, B/M, Color, PW, PDI Keyword: Pocket Ultrasound Scanner
Measurement: B: Length,Area/Circumference,Angle,Trace,Distance B+M: Heart Rate, Time, LVIDd, LVIDs, SV, EF, Distance B+PW:Velocity, Heart Rate(2), S/D, Depth Working System: Apple IOS And Android, Windows
Battery: Built-in 2800mAh Lithium Battery Battery Last: 3 Hours Working Time, More Than 5 Hours Standing By
High Light:

Windows Pocket Ultrasound Scanner

,

CE Pocket Ultrasound Scanner

,

phased array pocket ultrasound machines

24 Frames Per Second Pocket Ultrasound Scanner Built-In 2800mAh Lithium Battery



Introduction

The wireless probe scanner is with integrated ultrasound circuit boards inside,can wireless connect to the PC Tablet and Smart Phone after installed ultrasound software, then realize the functions of a ultrasound scanner. It is small and smart, convenient for carry and operation.



Application Range

1. In emergency clinical, hospital ward inspection, community clinical and outdoor inspect, an easy carried & operated compact ultrasound is desired.

2. In addition, the wireless probe can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.

3. Also for powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine..


Features

1. Workable with Tablet or Smart Phone.

2. Built-in and replaceable battery.

3. Advanced digital imaging technology, clear image.

4. High cost-effective.

5. Wireless connectivity, easy to operate.

6. Small and light , easy to carry.

7. Applicable in emergency, clinic, outdoor and vet inspection.

8. Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing.



Specification



1 Scanning Mode Electronic phased array
2 Probe element 128
3 Frequency 2.2 / 3.6 MHz
4 Depth 90 / 130 / 160 / 190mm
5 Display mode B, B/M, Color, PW, PDI
6 Application Cardiac, Abdomen
7 Measurement

B: Length, Area / Circumference, Angle, Trace, Distance,

B+M: Heart rate, time, LVIDd, LVIDs, SV, EF, Distance

B+PW: Velocity, Heart Rate (2), S/D, Depth

8 Image frame rate 24/s
9 Cineplay 100/200/500/1000
10 Image save jpg, avi, mp4 and DICOM format
11 Wifi type 802.11g/20MHz/5G/450Mbps
12 Working system Apple IOS and Andriod, Windows
13 Language English, Russian, Italian, Spanish, Chinese, Portuguess (Brazil)
14 Battery Built-in 2800mAh Lithium Battery
15 Power consumption 4W (probe sun)/1.5W(probe stop)
16 Battery last 3 hours (working time) more than 5 hours (stand by time)
17 Battery charge by USB cable / wireless charge
18 Dinemsion 127*61*21mm
19 Weight 116g



Standard Configuration



1 Wireless ultrasound probe 1pc
2 USB A male to Type-C Female adaptor 1pc
3 Portable wireless charger 1pc
4 USB Cable for charging 1pc
5 Operation manual 1pc
6 Type-C cable 1pc



Optional



1 ipad Torlley 1pc



Advantages



​1. Can be connected to IOS / Android / Windows devices by Wifi or Type-C cable.

​2. Smaller design, convenient for sterilization in the operating field.

3. Save more time and costs for doctors and patients.

​4. Built-in Wifi and lithium battery support wireless charging



Images

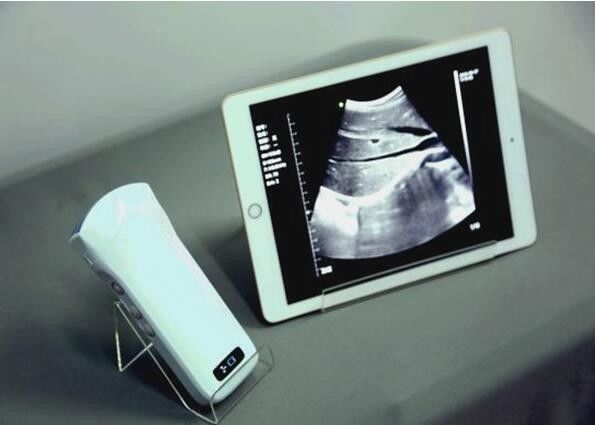

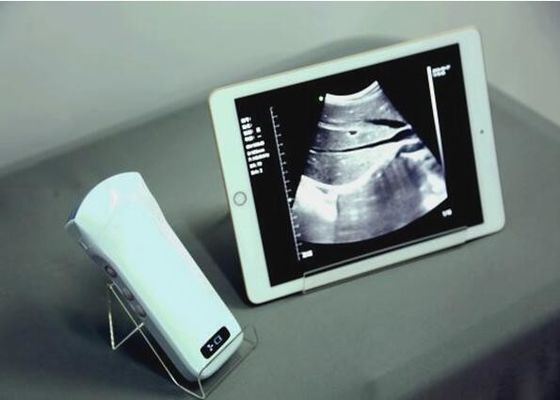

Windows Pocket Ultrasound Scanner Machines Electronic Phased Array 0



Windows Pocket Ultrasound Scanner Machines Electronic Phased Array 1
