12 Inch Notebook Portable Ultrasound Scanner With Window 10 system(PC)
Quick Details
Advantage
1. 12 inch LED screen
2. One-key optimization setting
3. Advanced image technology: E-Crystal,AQ-Sonic,make the clinical images smooth and clear
4. E-focus: the number of focus,the position of focus and focus space could be adjusted
5. windows 10 system:for running stable and updating software easily and fast
6. Large capacity of cine loop and image permanent storage
7. Build-in battery:make sure 2 hours operation continuously to prevent the loss of information
8. measurement software package:used for abdomen,GYN,OB,Small parts,Vessel,Urology,MSK and Cardiac
9. Speckle noise rejection technology:Select different options on depending on the different characteristic of different tissues ,
speckle and noise reduction can improve the imaging quality.

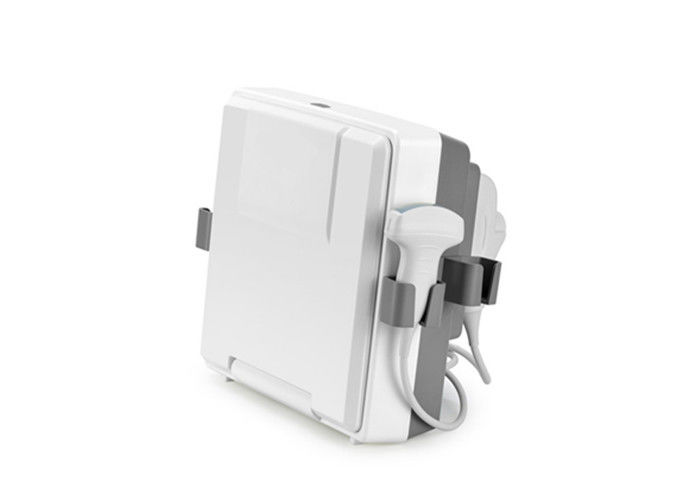

BIO 3000J is an advanced full-digital ultrasound technology system, with unique and perfect design .
The system brings high-definition images and at the same time greatly enhance the lightweight characteristics.
It provides totally new operation and clinical diagnostic experience to sonographer in daily working .
The B/W ultrasound scanner is equipped with multiple transducers, comprehensive functions and high mobility,
which makes it applicable to different body scans and clinic application.
Operation video
| Standard configuration |
12 inch LED monitor |
| 2 transducer connectors |
| 2 USB ports |
| 1 LAN port,1 Video output,1 VGA output |
| Optioanl configuration |
Carrying case |
| PC Printer |
| Needle-guided bracket |
| Trolley |
| Transducer model |
Type |
Frequency Range |
| C60A |
Convex probe |
2-5Mhz |
| C20A |
Micro-convex probe |
2-4Mhz |
| C20DA |
Micro-convex probe |
5-9Mhz |
| C15A |
Micro-convex probe |
4-9Mhz |
| C10A |
Micro-convex probe |
5-8Mhz |
| L40A |
Linear probe |
5-12Mhz |
| L25A |
Linear probe |
6-15Mhz |
| EC20A |
Transvaginal probe |
5-10Mhz |
| Display |
12 inch LED screen(1024*768) |
| System |
Window 10 system(PC) |
| Probe connector |
2 |
| USB port |
2 |
| Display mode |
B,B+B,4B,,B+M |
| Image processing |
AQ Sonic&E Crystal |
| Dynamic |
| Frame Average |
| Image enhancement |
| Trapezoid Image |
| Compound image |
| One-key image optimization |
| User interface |
Alphanumeric QWERTY keyboard |
| Backlight Silicon system |
| Intelligent work flow |
One key to change probe,save images,report system |
| Software package of obstetric,Gynecology,Organ Urinary,Cardiology,etc |
| Storage |
Hard disk or flash disk storage |
| 2 USB ports |
| Memory disk:64GB SSD |
| Review |
Single-frame image formats:BMP |
| Multi-frame image formats:AVI |
| Cine memory capacity(Max) |
B Mode:1024 frames |
| M Mode:12.5s |
| Net weight |
5.3kg |
| Package size |
40*38*33cm |
BIO- Catalogue for 3000J.pdf
