Product Details:
|
| Frequency: | Linear: 7.5/10MHz, Convex: 2.5/5MHz, 3.5/5MHz | Depth: | Linear: 20-100mm, Convex:L90-160mm, 90-305mm |
|---|---|---|---|
| Transducer: | Dual Heads (Convex & Linear) | Mode: | B, B+M, PW, Color Doppler, Power Doppler |
| Connection: | USB Or Wifi Both OK | Battery: | 2800mAh Working Time >3h, Standby Time: >12h |
| Length: | 125mm | Net Weight: | 90g |
| High Light: | ce portable ultrasound scanners,7.5mhz portable ultrasound scanners,wifi portable ultrasound scanners |
||

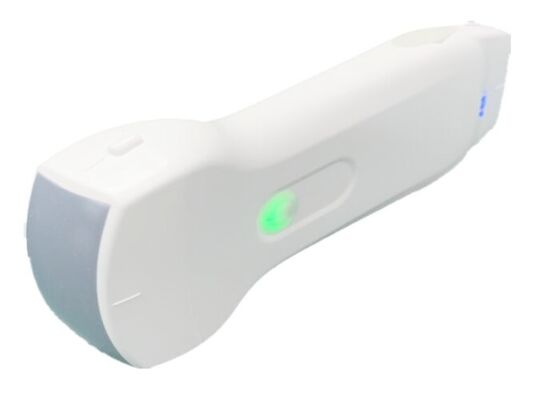

Wireless USB Probe Handheld Ultrasound Scanner Linear Convex Phased 3 IN 1 with Software Download from APP Store
W6 is a wireless & USB ultrasound probe scanner.This USB/wireless probe scanner
with integrated ultrasound circuit boards inside, can wireless connect to the IOS/Android/Windows device
that after installed ultrasound software, then realize the functions of a ultrasound scanner.
It is small and smart, convenient for carry and operation.
In emergency clinical,hospital ward inspection,community clinical and outdoor inspect,Clinical training,
Nursing Training, an easy carried & operated compact ultrasound such as wireless probe is desired.
W6 is also a 3 IN 1 probe with convex, linear and phased. Download our ultrasound software from
APP store / Google Play, you can scan anybody anytime anywhere conveniently in time.
Specification
| 1 | Mode | B, B+M, PW, Color Doppler, Power Doppler |
| 2 | Frequency | Linear: 7.5/10MHz, Convex: 2.5/5MHz, 3.5/5MHz |
| 3 | Depth | Linear: 20-100mm, Convex:L90-160mm, 90-305mm |
| 4 | Transducer | Dual heads (Convex & Linear) |
| 5 | Connection | USB or Wifi both OK |
| 6 | Software | Download software from APP store / Google Play |
| 7 | Language | Chinese, English, Russian, Italian, Spainish, Portuguese |
| 8 | Function | GN(gain), D(Depth), ENH(enhancement), DR(dynamic range), F(frequency), FocusPos, PRF, WF, Mode, 8TGC, Biopsy, Annote, Page left/right, up/down |
| 9 | Measurement | Lengh, Area/circumference, Angle, Trace, Distance, GA(CRL,BPD,GS,FL,HC,AC) EFW(BPD,FL), Heart rate, Time, Distance, Velocity, Heart Rate(2), S/D, Depth |
| 10 | Battery | 2800mAh Working time >3h, Standby time: >12h |
| 11 | Length | 125mm |
| 12 | Net Weight | 90g |
Standard Configuration
| 1 | Wireless probe | 1pc |
| 2 | USB cable | 1pc |
| 3 | Power Plug | 1pc |
| 4 | Wireless charger | 1pc |
| 5 | Wrist strap | 1pc |
| 6 | Portable aluminium alloy box | 1pc |
| 7 | User's Manual_E format | 1pc |
| 8 | Warranty Card_Eformat | 1pc |
