Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements

Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements
Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements

Large Image :  Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements

Product Details:
Place of Origin: China
Brand Name: BIO
Model Number: U3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Carton (185X105X55mm) 1kg/carton
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month

Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements

Description
Applicable Department: Primacy Care, Emergency EMS, Wellness, Interventional, Med School, OB/GYN, Anesthesia,Breast, Pain Management, Sports Medicine, Globel Health, Clinical Research Display Mode: B, B/M, Color Doppler, PW, Power Doppler
Frequency: Convex: 3.5~5MHz, Linear: 7.5~10MHz Measurement: B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW(BPD, FL); B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth
Probe Port: USB Or Wifi Depth: Convex:90~305mm Linear:20~100mm
Weight: 120g Language: Chinese, English, Russian, Italian, Spanish, Portuguese
High Light:

pocket handheld ultrasound scanner

,

convex handheld ultrasound scanner

,

3.5mhz handheld ultrasound scanner

Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode
128 Elements




Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements 0

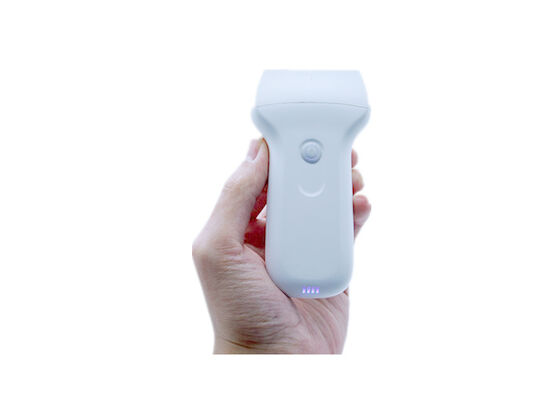

U3 is a wireless & USB ultrasound probe scanner.This USB/wireless probe scanner with integrated

ultrasound circuit boards inside, can wireless connect to the IOS/Android/Windows device that after installed

ultrasound software, then realize the functions of a ultrasound scanner.It is small and smart, convenient for

carry and operation.



In emergency clinical,hospital ward inspection,community clinical and outdoor inspect,Clinical training,

Nursing Training, an easy carried & operated compact ultrasound such as wireless probe is desired.

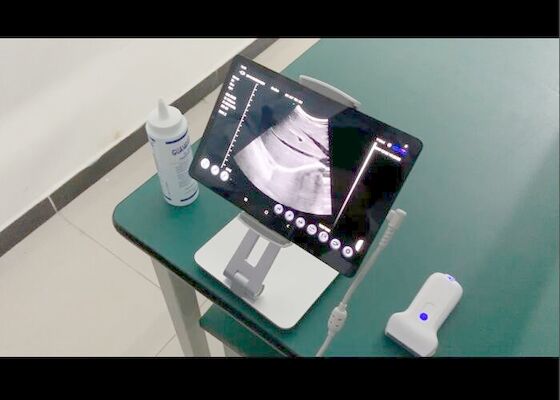

U3 ultrasound probe can be connected to a Windows / Android / IOS device via Wifi or USB cable.

You can scan anybody anytime anywhere conveniently, such as a clinic, hospital ward, emergency room,

or operating theater. The probe has built-in lithium battery, can be used while charging.

You can print reports for patients.



Specification



Item 1 2
Photo Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements 1 Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements 2
Type Convex Linear
Frequency 3.5-5MHz 7.5-10MHz
Depth 90-305mm 20-100mm
Elements 128 128
Radius R60 N/A
Length N/A 46mm
Display mode B, BM, THI, Color, Power, PW B, BM, THI, Color, Power, PW
APP interface adjustment

GN(gain)

D(depth)

ENH(enhancement)

DR(dynamic range)

F(frequency)

PRF WF

Focus

Biopsy

Annote, Page Left/Right Up/Down

8TGC

GN(gain)

D(depth)

ENH(enhancement)

DR(dynamic range)

F(frequency)

PRF WF

Focus

Biopsy

Annote, Page Left/Right Up/Down

8TGC

Measurement

B:

Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​



B+M:

Heart Rate, Time, Distance



B+PW:

Velocity, Heart Rate (2), S/D, Depth

B:

Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​



B+M:

Heart Rate, Time, Distance



B+PW:

Velocity, Heart Rate (2), S/D, Depth

Dimensions 115(h)*70(w)*20(d)mm 115(h)*60(w)*20(d)mm
Package size 185(h)*105(w)*55(d)mm 185(h)*105(w)*55(d)mm
Net weight 120g 102g
Gross weight 1kg 1kg
Wifi type 802.11g/20MHz/5G 802.11g/20MHz/5G
Connection type WiFi & USB WiFi & USB
Supporting Device Tablet, Smart phone, PC, etc. Tablet, Smart phone, PC, etc.
Working system Android, iOS, Windows Android, iOS, Windows
Application

Abdominal

Emergency Cardiac

Obstetrics / Gynecology

Lung

Kidney

Urology

Breast

Thyroid

MSK

Superficial

Vascular

Pediatrics

Carotid

Small Parts

Language

Chinese,English,Russian,Italian,

Spanish,Portuguese(Brazil)

Chinese,English,Russian,Italian,

Spanish,Portuguese(Brazil)

Battery life 5-8 years 5-8 years
Voltage 3.8v 3.8v
Replaceable Yes Yes
Capacity 1350mAh 1350mAh
Standby 12h 12h
Bootup

Platform dependent,

generally <5 seconds

Platform dependent,

generally <5 seconds



Standard Configuration



1 Wireless probe 1pc
2 USB cable 1pc
3 Power Plug 1pc
4 Wireless charger 1pc
5 Wrist strap 1pc
6 Portable aluminium alloy box 1pc
7 User's Manual_E format 1pc
8 Warranty Card_Eformat 1pc



Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements 3



Pocket Ultrasound Hand held Ultrasound Scanner With B, B/M, Color Doppler, PW, Power Doppler Mode 128 Elements 4



Welcome to ask for usb ultrasound probe price, usb ultrasound probe android, ios, windows , three systems are all available.
