Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages

Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages

    • Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages
    • Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages
    • Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages
    • Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages
  • Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages

    Product Details:

    Place of Origin: China
    Brand Name: BIO
    Model Number: U3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Carton (185X105X55mm) 1kg/carton
    Delivery Time: 7 working - days since getting full payment
    Payment Terms: Credit card, Paypal, T/T
    Supply Ability: 100 units / month
    Contact Now
    Detailed Product Description
    Applicable Department: Primacy Care, Emergency EMS, Wellness, Interventional, Med School, OB/GYN, Anesthesia,Breast, Pain Management, Sports Medicine, Globel Health, Clinical Research Display Mode: B, B/M, Color Doppler, PW, Power Doppler
    Frequency: Convex: 3.5~5MHz, Linear: 7.5~10MHz Measurement: B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW(BPD, FL); B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth
    Probe Port: USB Or Wifi Depth: Convex:90~305mm Linear:20~100mm
    Weight: 120g Language: Chinese, English, Russian, Italian, Spanish, Portuguese
    High Light:

    6 languages handheld ultrasound scanner

    ,

    usb handheld ultrasound scanner

    ,

    primary care handheld ultrasound scanner

    USB Ultrasound Scanner Hand held Ultrasound Scanner Compatible to Wifi Probe
    Frequency of 3.5-10MHz With 6 Languages

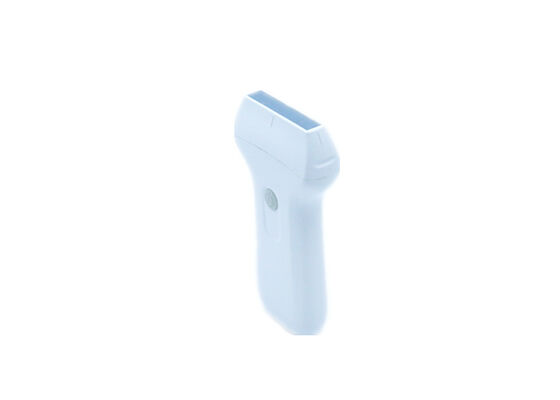

    U3 is a usb ultrasound probe, as well as wifi ultrasound probe.
    A ultrasound probe has two ways to connect mobilephone or ipad or computer.
    One is by wifi, the other is by USB cable.
    Download APP to your mobilephone or ipad or computer, then connect ultrasound probe to these device by wifi or by usb.
    Your mobilephone or ipad or computer is becoming a ultrasound scanner at once.

    Quick details

    Product name USB&WiFi Ultrasound Probe Instrument classification Class II
    Model  Linear /Convex  Depth Convex:90~305mm, Linear:20~100mm
    Frequency Convex:3.5/5MHz,Linear:7.5/10MHz Image mode B,B+M,B+Color,B+PW,B+PDl
    Elements 128 Wifi type 802.11n/20MHz/5G
    Net weight Convex: 125g Linear:102g Dimensions

    C10UR:

    115(h)x70(w)x20(d) mm C10UL:

    115(h)x60(w)x20(d) mm



    Specification



    Item 1 2
    Photo Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages 0 Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages 1
    Type Convex Linear
    Frequency 3.5-5MHz 7.5-10MHz
    Depth 90-305mm 20-100mm
    Elements 128 128
    Radius R60 N/A
    Length N/A 46mm
    Display mode B, BM, THI, Color, Power, PW B, BM, THI, Color, Power, PW
    APP interface adjustment

    GN(gain)

    D(depth)

    ENH(enhancement)

    DR(dynamic range)

    F(frequency)

    PRF WF

    Focus

    Biopsy

    Annote, Page Left/Right Up/Down

    8TGC

    GN(gain)

    D(depth)

    ENH(enhancement)

    DR(dynamic range)

    F(frequency)

    PRF WF

    Focus

    Biopsy

    Annote, Page Left/Right Up/Down

    8TGC

    Measurement

    B:

    Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​



    B+M:

    Heart Rate, Time, Distance



    B+PW:

    Velocity, Heart Rate (2), S/D, Depth

    B:

    Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​



    B+M:

    Heart Rate, Time, Distance



    B+PW:

    Velocity, Heart Rate (2), S/D, Depth

    Dimensions 115(h)*70(w)*20(d)mm 115(h)*60(w)*20(d)mm
    Package size 185(h)*105(w)*55(d)mm 185(h)*105(w)*55(d)mm
    Net weight 120g 102g
    Gross weight 1kg 1kg
    Wifi type 802.11g/20MHz/5G 802.11g/20MHz/5G
    Connection type WiFi & USB WiFi & USB
    Supporting Device Tablet, Smart phone, PC, etc. Tablet, Smart phone, PC, etc.
    Working system Android, iOS, Windows Android, iOS, Windows
    Application

    Abdominal

    Emergency Cardiac

    Obstetrics / Gynecology

    Lung

    Kidney

    Urology

    Breast

    Thyroid

    MSK

    Superficial

    Vascular

    Pediatrics

    Carotid

    Small Parts

    Language

    Chinese,English,Russian,Italian,

    Spanish,Portuguese(Brazil)

    Chinese,English,Russian,Italian,

    Spanish,Portuguese(Brazil)

    Battery life 5-8 years 5-8 years
    Voltage 3.8v 3.8v
    Replaceable Yes Yes
    Capacity 1350mAh 1350mAh
    Standby 12h 12h
    Bootup

    Platform dependent,

    generally <5 seconds

    Platform dependent,

    generally <5 seconds



    Standard Configuration



    1 Wireless probe 1pc
    2 USB cable 1pc
    3 Power Plug 1pc
    4 Wireless charger 1pc
    5 Wrist strap 1pc
    6 Portable aluminium alloy box 1pc
    7 User's Manual_E format 1pc
    8 Warranty Card_Eformat 1pc



    Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages 2



    Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages 3



    Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages 4



    Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages 5





    Usb Ultrasound Probe Android IOS Windows All Available Primary Care Handheld Ultrasound Scanner With 6 Languages 6



    Welcome to ask for usb ultrasound probe price, we will be waiting here for your inquiry.
