Product Details:
|
| Type: | Linear Convex | Supporting System: | Andriod, Windows, IOS |
|---|---|---|---|
| Connection Way: | Wi Fi | Frequency: | Linear: 7.5-10MHz Convex: 3.5-5MHz |
| Display Mode: | B, B/M, Color Doppler, PW, Power Doppler | Measurement: | B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth |
| Dimension: | 157(h)*70(w)*30(d)mm | Net Weight: | 221g |
| High Light: | 128 elements handheld ultrasound device,Wi Fi handheld ultrasound device,5MHz handheld ultrasound device |
||

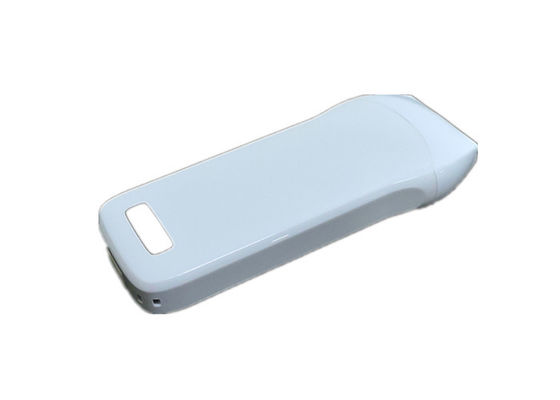

Multi - Frequency Color Doppler Probe Handheld Ultrasound Scanner With 20-305mm Depth 128 Elements
Feature
| 1 | Wireless Freedom | Probe comes with wireless network |
| 2 | Easy to carry | The entire machine weighs only 308g and the size is 158*70*30mm |
| 3 | Wireless Probe | The probe is unfettered to use and operate freely |

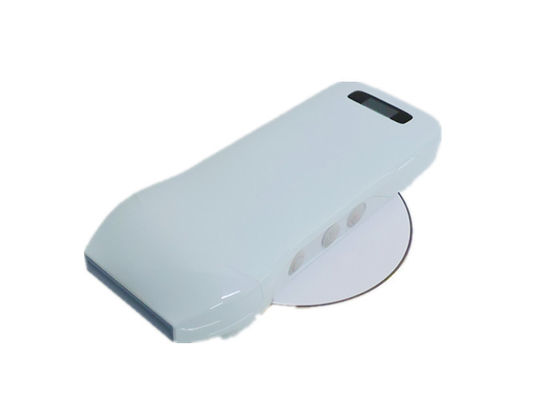

| 4 | Various charging methods | Comes with a wired charging cable and wireless charger |
Specification
| Item | 1 | 2 | 3 | 4 | 5 | 6 |
| Photo |  |
|
|
|
|
|
| Type | Linear | Convex | Linear | Micro convex | Linear | Endocavitary |
| Frequency | 7.5-10MHz | 3.5-5MHz | 7.5-10MHz | 5-7MHz | 10-14MHz | 6.5-8MHz |
| Depth | 20-55mm | 90-305mm | 20-100mm | 60-160mm | 20-100mm | 30-120mm |
| Elements | 128 | 192 | 192 | 192 | 192 | 192 |
| Radius | N/A | R60 | N/A | R20 | N/A | R10 |
| Length | 46mm | N/A | 46mm | N/A | 28mm | N/A |
| DR | N/A | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| FocusPos | N/A | 0.1.2.3 | 0.1.2.3 | 0.1.2.3 | N/A | 0.1.2.3 |
| Enh | 0-4 | 0-4 | 0-4 | 0-4 | 0-4 | 0-4 |
| Display mode | B, B/M, Color Doppler,PW, Power Dopper | B, B/M, Color Doppler,PW, Power Dopper | B, B/M, Color Doppler,PW, Power Dopper | B, B/M, Color Doppler,PW, Power Dopper | B, B/M, Color Doppler,PW, Power Dopper | B, B/M, Color Doppler,PW, Power Dopper |

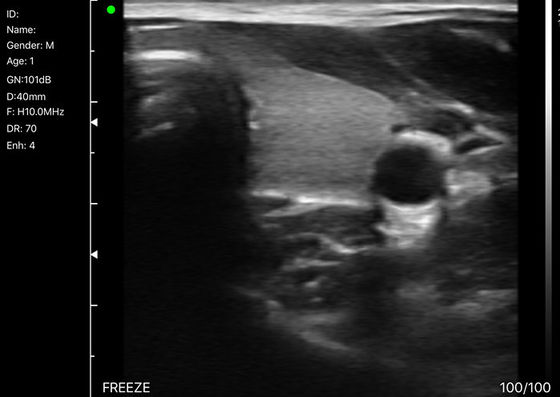

| APP interface adjustment |
GN(gain) D(depth) ENH(enhancement) DR(dynamic range) F(frequency) Focus 8TGC Biopsy Page Left/Right Up/Down |
GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Focus Biopsy Page Left/Right Up/Down |
GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Focus Biopsy Page Left/Right Up/Down |
GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Focus Biopsy Page Left/Right Up/Down |
GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Focus Biopsy Page Left/Right Up/Down |
GN(gain) 8TGC D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Focus Biopsy Page Left/Right Up/Down |
| Measurement |
B: Length, Area/Circumference, Angle,Trace,Distance
B+M: Heart Rate, Time, Distance
B+PW: Velocity, Heart Rate (2), S/D, Depth |
B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL)
B+M: Heart Rate, Time, Distance
B+PW: Velocity, Heart Rate (2), S/D, Depth |
B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL)
B+M: Heart Rate, Time, Distance
B+PW: Velocity, Heart Rate (2), S/D, Depth |
B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL)
B+M: Heart Rate, Time, Distance
B+PW: Velocity, Heart Rate (2), S/D, Depth |
B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL)
B+M: Heart Rate, Time, Distance
B+PW: Velocity, Heart Rate (2), S/D, Depth |
B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL)
B+M: Heart Rate, Time, Distance
B+PW: Velocity, Heart Rate (2), S/D, Depth |
| Dimensions | 157(h)*70(w)*30(d)mm | 157(h)*70(w)*30(d)mm | 157(h)*70(w)*30(d)mm | 157(h)*70(w)*30(d)mm | 157(h)*70(w)*30(d)mm | 345(h)*70(w)*30(d)mm |
| Package size | 240(h)*235(w)*100(d)mm | 240(h)*235(w)*100(d)mm | 240(h)*235(w)*100(d)mm | 240(h)*235(w)*100(d)mm | 240(h)*235(w)*100(d)mm | 540(h)*120(w)*100(d)mm |
| Net weight | 221g | 239g | 223g | 221g | 212g | 293g |
| Gross weight | 1.1kgs | 1.1kgs | 1.1kgs | 1.1kgs | 1.1kgs | 1.1kgs |
| Wifi type | 802.11g/20MHz/2.4G | 802.11g/20MHz/2.4G | 802.11g/20MHz/2.4G | 802.11g/20MHz/2.4G | 802.11g/20MHz/2.4G | 802.11g/20MHz/2.4G |
| Working system | Android, iOS, Windows | Android, iOS, Windows | Android, iOS, Windows | Android, iOS, Windows | Android, iOS, Windows | Android, iOS, Windows |
| Application |
Breast Thyroid MSK Superficial Vascular Pediatrics Carotid Small Parts |
Abdominal Emergency Cardiac Obstetrics / Gynecology Lung Kidney Urology |
Thyriod Small Parts Pediatrics Vascular Carotid Breast MSK |
Abdominal Emergency Cardiac Obstetrics / Gynecology Lung Kidney Urology |
Thyriod Small Parts Pediatrics Vascular Carotid Breast MSK |
Abdominal Emergency Cardiac Obstetrics / Gynecology Lung Kidney Urology |
| Language |
Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil) |
Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil) |
Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil) |
Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil) |
Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil) |
Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil) |
| Battery life | 5-8 years | 5-8 years | 5-8 years | 5-8 years | 5-8 years | 5-8 years |
| Voltage | 3.8v | 3.8v | 3.8v | 3.8v | 3.8v | 3.8v |
| Replaceable | Yes | Yes | Yes | Yes | Yes | Yes |
| Capacity | 4200mAh | 4200mAh | 4200mAh | 4200mAh | 4200mAh | 4200mAh |
| Standby | 12h | 12h | 12h | 12h | 12h | 12h |
| Bootup |
Platform dependent, generally <5 seconds |
Platform dependent, generally <5 seconds |
Platform dependent, generally <5 seconds |
Platform dependent, generally <5 seconds |
Platform dependent, generally <5 seconds |
Platform dependent, generally <5 seconds |
Standard Configuration
| 1 | Wireless probe | 1pc |
| 2 | USB cable | 1pc |
| 3 | Power Plug | 1pc |
| 4 | Wireless charger | 1pc |
| 5 | Wrist strap | 1pc |
| 6 | Portable aluminium alloy box | 1pc |
| 7 | User's Manual_E format | 1pc |
| 8 | Warranty Card_Eformat | 1pc |
