Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope

Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope

Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope
Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope

Product Details:

Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: BS4

Payment & Shipping Terms:

Minimum Order Quantity: 30 sets
Packaging Details: Carton (42*39*10cm) 1.5kgs
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month
Contact Now
Detailed Product Description
Resolution: 1920 X 1080 Light Source: Neutral White Light Emitting Diode (LED)
LCD Monitor: 3.5” Full Color TFT-LCD Image Format: JPEG (Photograph) And H.264 (Video)
Power Source: Rechargeable Lithium Battery 3.7V / 2600mAh External Power Source: 100~240 VAC, 50/60 Hz
High Light:

portable otoscope

,

digital otoscope

Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope

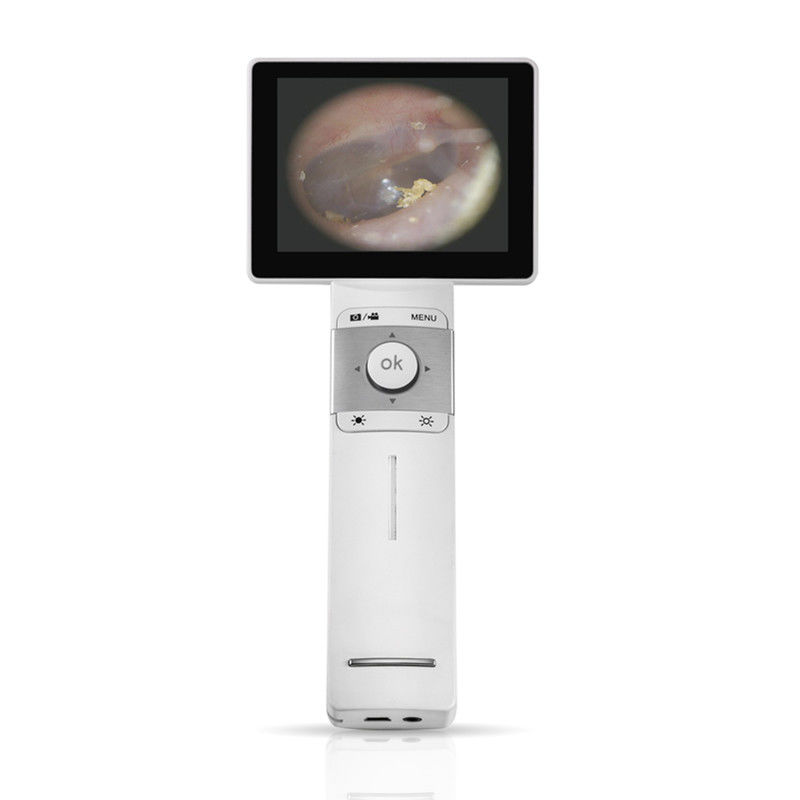

The full digital inspection scopes, mainly used for clinical inspection of human body.

All the images and video chips can be stored in the SD card and output to PC or laptop for saving as patients profile.

It's very convenient to compare the images and situations before and after therapy.





Video Otoscope Feature


1. Specially designed for the department of ENT. It can be used to examine eardrum, nasal cavity and throat with different camera probe.
2. Avoid high cost of the traditional ENT examination equipment, such as light source, CCD, Monitor etc.
3. Light weight and portable, suitable for outpatient department, emergency room and medical ward.
4. High resolution image. The SD card can store multiple freeze images and videos, and can be connect to computer to print patient reports.

5. 3.5 inch high definition LCD screen, watching and taking photos at the same time.

6. it can be connected to large size monitor, synchronized to the big screen.





Technical Specification



Resolution 1920 x 1080 pixels
Light Source Neutral White Light Emitting Diode (LED)
LCD Monitor 3.5” Full Color TFT-LCD
Image Format JPEG (Photograph) and H.264 (Video)
InteractionPort Mini USB, Phone Jack Port
Media Type Micro SD Memory Card, 2GB.
Power Source Rechargeable Lithium Battery 3.7V / 2600mAh
External Power Source: 100~240 VAC, 50/60 Hz
Operating time 3 hours at 2.5 Watt condition
Charging time 5 hours





Digital Otoscope(ear inspection):

Focus range 5~30 mm
Dimensions 8.5 ´ 9 ´ 20 cm3
Weight 330g

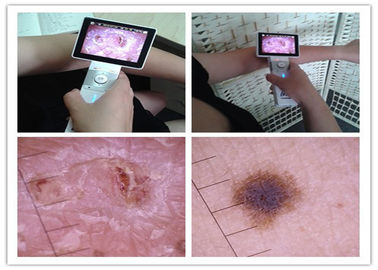

Digital Dermatoscope(skin inspection):

Focus range 10 mm diameter
Dimensions 8.5 ´ 8 ´ 20 cm3
Weight 370g

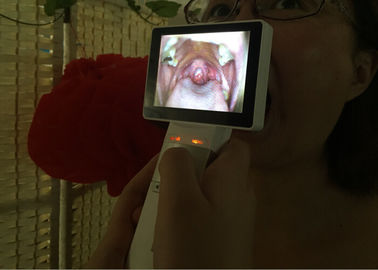

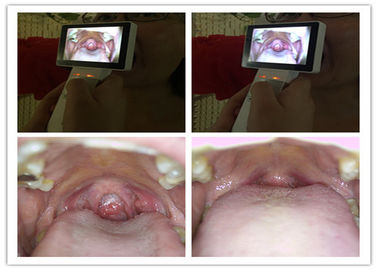

Digital General Imaging(general inspection including throat):

Focus range 80 angle(diagonal)
Dimensions 8.5 ´ 5 ´ 20 cm3
Weight 310g




Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope 0



Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope 1

Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope 2Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope 3Digital Video Otoscope Full Digital Inspection With SD Card Output USB Otoscope 4



BIO_BS4 E-catalogue of digital endoscope.pdf

User's manual for medical scope BIO_BS4.pdf
