Product Details:
|
| FOV: | 45° | Minimun Pupil: | 2.5mm |
|---|---|---|---|
| Image Resolution: | 16MP | Screen: | 3.97 Inch Multi-touch Screen, 800*480 |
| Battery: | 3.7V Rechargeable Lithium Battery | Connect Function: | USB2.0/WIFI/Bluetooth/4G/wireless Printing Etc |
| Power Supply: | 50/60Hz,100~240V AC Input;5V 1A DC Output | Focus Range: | -20D To + 20D |
| Highlight: | 2.5mm digital retinal camera,3.97 inch digital retinal camera,touch screen digital retinal camera |
||

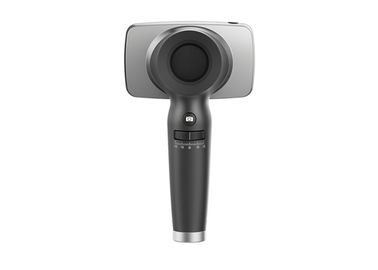

3.97 Inch Touch Screen Digital Handheld Fundus Camera With USB WIFI Connection Telemedicine Application
Product Advantage
Product Feature
1. HD touch screen display
1) 3.97 inch TFT-LCD, high resolution 800*480
2)With backlight, it can operate in darkroom to reduce environmental interference
3) Multi-point internal fixation design to quickly capture the surrounding image of the fundus
4) Support ID automatic recognition, wireless printing
2.Fast HD fundus imaging
1)16 million pixels HD image
2)Free high-definition imaging
3.Android intelligent system design
1) Support DICOM interface;
2) Support 4G mobile network;
3) Support for computer or mobile devices;
4)The Android system is easy to operate and can be used to store and view with wireless transmission statistics.
4. Simple operation
1)Humanized application and ergonomic design make the machine powerful, streamlined and practical;
2)Portable to operate and take.
Product Specification
| Model | HFC-02 |
| Product category | Non-mydriatic fundus camera |
| Product Screen | 3.97 inch Multi-touch Screen, 800*480 |
| Field of view | 45° |
| Resolution | 16MP |
| Target fixation | 8 point internal targets fixation |
| Minimum pupil diameter | 2.5mm |
| Flash illumination | White light&infrared |
| Focus | Manual/Auto |
| Focus range | -20D to + 20D |
| Focus indication | Yes |
| Image format | JEPG |
| Video format | 3GP |
| Image color | Color,black and white |
| Memory | Internal 16 GB |
| Connect function | USB2.0/WIFI/Bluetooth/4G/wireless printing etc |
| Image sharing | DICOM3.0,Cloud,Wechat,facebook,QQ,Microblog etc |
| Network | China Mobile,China Unicom,China Telecom |
| Battery | 3.7V rechargeable lithium battery |
| Adapter | 50/60Hz,100~240V AC input;5V 1A DC output |
| Charge current | Maximu 5V 1.2A |
| Product size | 218*118*216mm |
| Weight | 560g |
Scope of application
