Convex Linear Color Doppler Probe Handheld Ultrasound Scanner With Scanning Depth 310mm

Convex Linear Color Doppler Probe Handheld Ultrasound Scanner With Scanning Depth 310mm

    • Convex Linear Color Doppler Probe Handheld Ultrasound Scanner With Scanning Depth 310mm
    • Convex Linear Color Doppler Probe Handheld Ultrasound Scanner With Scanning Depth 310mm
    • Convex Linear Color Doppler Probe Handheld Ultrasound Scanner With Scanning Depth 310mm
    • Convex Linear Color Doppler Probe Handheld Ultrasound Scanner With Scanning Depth 310mm
  • Convex Linear Color Doppler Probe Handheld Ultrasound Scanner With Scanning Depth 310mm

    Product Details:

    Place of Origin: China
    Brand Name: BIO
    Model Number: W8C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Carton (10X20X15cm) 1kg
    Delivery Time: 7 working - days since getting full payment
    Payment Terms: Credit card, Paypal, T/T
    Supply Ability: 100pc/months
    Contact Now
    Detailed Product Description
    Scanning System: Electric Array Scanning Probe Frequency: 2~11MHz
    Scanning Depth: 310mm, Adjustable Supporting System: Android Or Window Or IOS
    Display Mode: B, B&M, 2B, 4B, THI, Color, Power, PW Warranty: 12 Months
    Waterproof Level: Ipx6 Connection Type: WiFi & USB

    Convex Linear Color Doppler Probe Wireless Ultrasound Probe with Scanning Depth 310mm



    Advantage

    1. Workable with Tablet or Smart Phone
    2. Built-in and replaceable battery
    3. Advanced digital imaging technology
    4. High cost-effective and high resolution images
    5. Wireless connectivity, easy to operate
    6. Small and light , easy to carry
    7. Applicable in emergency, outdoor and vet inspection
    8. Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing



    Specifications

    Platform Android, Windows, IOS
    Connection Type WiFi &USB
    Supporting devices Android tablet or smart phone, Windows PC, IPhone and IPAD
    Probe heads All types of detachable transducers supported
    Modes B, M, 2B, 4B, THI, Color, Power, PW (only color Doppler version have Color, Power, PW)
    Gray level 256
    Transducer Frequency 2-11MHz
    Digital Technology

    Wide-angle imaging

    Panoramic focusing technology

    Frequency compounding

    Space compounding

    Rolling M technology

    Real-time Dynamic Aperture

    Tissue Harmonic Imaging

    Tissue Specific Imaging

    Max scanning Depth 300mm
    Imaging Processing

    Pre-processing: Cloud processing technology

    Gain

    Dynamic range: 30-170

    Persistence

    M Soften

    Noise suppression

    Post-processing: Image enhancement

    Gray map

    Pseudo color map

    Interface rotation

    Left/right reverse

    Up/down reverse

    Cine-loop 600 frames movie playback stored
    Zoom Max 10 times (only Windows)
    Qopt One-key optimization
    Language Chinese, English, (All systems) Russian, Spanish, Italian, Czech (only Windows)
    DICOM DICOM3.0 (Optional Function only Windows)
    Other function Patient information Management (only Windows)



    Others

    Charging Power supply 100-240V~50/60Hz~(AC Adapter); 12V 1.5A
    Battery lifetime >=8 hours
    Net weight About 220g
    Size 160mm*55mm*20mm
    Waterproof level Ipx6
    WIFI coverage distance >= 6m





    Images

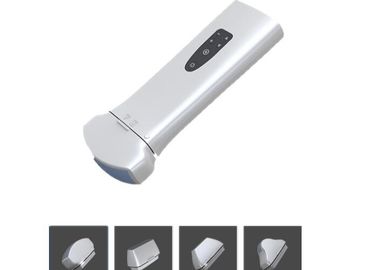

    Mobile Phone Probe Wireless Ultrasound Probe Convex Linear Transvaginal Micro-convex Changeable Probe



    Mobile Phone Probe Wireless Ultrasound Probe Convex Linear Transvaginal Micro-convex Changeable Probe



    Mobile Phone Probe Wireless Ultrasound Probe Convex Linear Transvaginal Micro-convex Changeable Probe

    Mobile Phone Probe Wireless Ultrasound Probe Convex Linear Transvaginal Micro-convex Changeable Probe



    Mobile Phone Probe Wireless Ultrasound Probe Convex Linear Transvaginal Micro-convex Changeable Probe
