Product Details:
|
| Scanning System: | Electric Array Scanning | Probe Frequency: | 2~11MHz |
|---|---|---|---|
| Scanning Depth: | 310mm, Adjustable | Supporting System: | Android Or Window Or IOS |
| Display Mode: | B, B&M, 2B, 4B, THI, Color, Power, PW | Warranty: | 12 Months |
| Waterproof Level: | Ipx6 | Probe Heads: | Changeable |
| High Light: | hand ultrasound machine,handheld ultrasound machine |
||

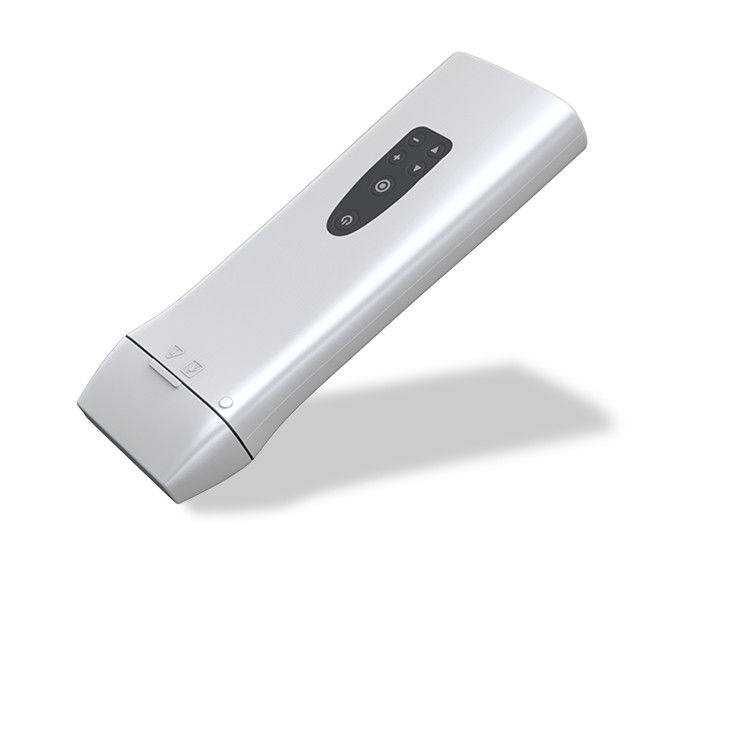

Handheld Pocket Wireless Ultrasound Probe Android Windows iOS System Available
Advantage
| 1. | Workable with Tablet or Smart Phone |
| 2. | Built-in and replaceable battery |
| 3. | Advanced digital imaging technology |
| 4. | High cost-effective and high resolution images |
| 5. | Wireless connectivity, easy to operate |
| 6. | Small and light , easy to carry |
| 7. | Applicable in emergency, outdoor and vet inspection |
| 8. | Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing |
Specifications
| Platform | Android, Windows, IOS |
| Connection Type | WiFi &USB |
| Supporting devices | Android tablet or smart phone, Windows PC, IPhone and IPAD |
| Probe heads | All types of detachable transducers supported |
| Modes | B, M, 2B, 4B, THI, Color, Power, PW (only color Doppler version have Color, Power, PW) |
| Gray level | 256 |
| Transducer Frequency | 2-11MHz |
| Digital Technology |
Wide-angle imaging Panoramic focusing technology Frequency compounding Space compounding Rolling M technology Real-time Dynamic Aperture Tissue Harmonic Imaging Tissue Specific Imaging |
| Max scanning Depth | 300mm |
| Imaging Processing |
Pre-processing: Cloud processing technology Gain Dynamic range: 30-170 Persistence M Soften Noise suppression Post-processing: Image enhancement Gray map Pseudo color map Interface rotation Left/right reverse Up/down reverse |
| Cine-loop | 600 frames movie playback stored |
| Zoom | Max 10 times (only Windows) |
| Qopt | One-key optimization |
| Language | Chinese, English, (All systems) Russian, Spanish, Italian, Czech (only Windows) |
| DICOM | DICOM3.0 (Optional Function only Windows) |
| Other function | Patient information Management (only Windows) |
Others
| Charging Power supply | 100-240V~50/60Hz~(AC Adapter); 12V 1.5A |
| Battery lifetime | >=8 hours |
| Net weight | About 220g |
| Size | 160mm*55mm*20mm |
| Waterproof level | Ipx6 |
| WIFI coverage distance | >= 6m |

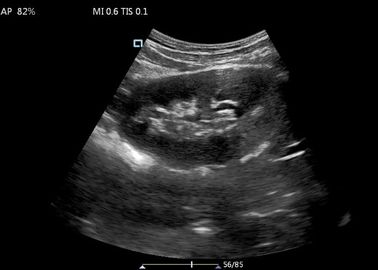

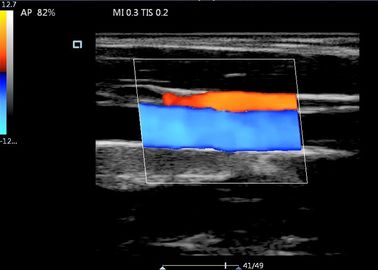

Images
Technical Specifications
Platform: Android, Window, iOS
Modes: B, B&M, 2B, 4B, THI, Color, Power, PW
Gray level: 256
Transducer Frequency: 2-11MHz
Digital Technology: Wide-angle imaging
Panoramic focusing technology
Compatible with high and low speed blood
Panoramic imaging
Frequency compounding
Space compounding
Rolling M technology
Real-time Dynamic Aperture
Tissue Harmonic Imaging
Tissue Specific Imaging
Max scanning Depth: 310mm
Imaging Processing
Pre-processing: Cloud processing technology
Fine blood flow imaging, high sensitivity
Gain
Dynamic range
Persistence
M Soften
Noise suppression
Post-processing: Image enhancement
Gray map
Pseudo color map
Left/right reverse
Up/down reverse
Function
Operation: WiFI connect to any Android or Window System
Cine-loop: Based on the memory of the Android or windows device.
Zoom: Max 10 times
Language: Chinese, English, Russian, Spanish, Italian, Czech
Measurement and calculation
B mode: Distance, angle, area, volume, trace length, distance ratio, area ratio, histogram
M mode: Distance, time, slope, heart rate
Color/Power/PW mode: D velocity, D trace, PS/ED
Application package: Abdomen, Small parts, Vascular, Obstetrics,Gynecology, Cardiology, Neurology,
Urology, Orthopedics, Anesthesia
Others
Power supply: 12V 1.5A
Battery lifetime: 6-8 hours
Net weight: About 365g
Waterproof level: Ipx6
Standard Configurations
Convex Probe
Power Adapter
Android&Windows applications
Abundant measurement & calculation software packages
