Product Details:
|
Display: | 7" Color TFT LCD | Language: | English, Spanish, Turkish, French |
---|---|---|---|
Printer: | Built-in Thermal Recorder, 110*100mm | Resolution: | 800*480 |
Battery: | Li-Ion Battery, 2200mAh / 14.8V | Dimension: | 295(L)*240(W)*75(H)mm |
Weight: | 1.75Kgs | Standard: | FHR, TOCO, FM |
High Light: | portable ecg device,patient monitoring systems |

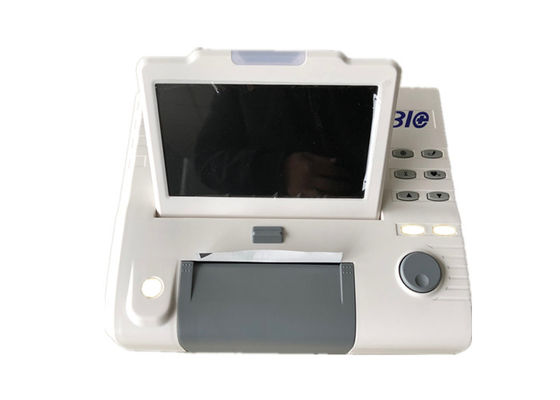

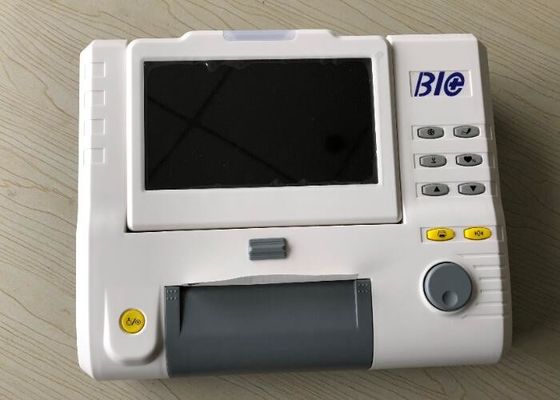

Patient Vital Signs Monitor Fetal Maternal Monitor With FHR, TOCO, FM 4 Languages Avaialble
Features
1 | 7”TFT Colour screen ,high resolution, folding up 90 degree |
2 | Built-in long life 110mm thermal printer |
3 | Special high sensitive probe |
4 | Long time data storage which can be played back and printed |
5 | Rechargeable battery supports longtime work |
6 | DSP technology, real time identifying and measurement for FHR, accurate and reliable results |
7 | Automatic Fetal Movement detection and accounting |
8 | Central Monitoring system |
9 | CTG scoring system: Krebs score and fischer score |
Specification
1 | FHR (Fetal Heart Rate) |
Parameters: FHR1, FHR2 (Optional) Measurement range: 50-240bpm Accuracy: ±2 bpm Sweep speed: ×1, ×2, ×4, ×8 |
2 | Transducer |
9 crystals, pulsed doppler, high sensitivity Frequency: 1.0MHz |
3 | TOCO |
Measurement range: 0-100 TOCO baseline: 0, 5, 10, 15, 20 (selectable) |
4 | Data Storage | 3000 hours trend graph of fetal parameters |
5 | Scoring | Fischer, Krebs, NTS, ACOG |
6 | Language | English, Spanish, Turkish, French |
7 | Printer |
Type: Built-in thermal recorder, 110*100mm Print mode: Real-time recording, timed recording, selectable Print speed: 1, 2, 3 cm/min |
8 | Network | Wired / wireless terminal |
9 | Speakers | 2 speakers, power: 1W |
10 | Display |
7“ Color TFT LCD, adjustable Resolution:800*480 |
11 | Power supply |
AC power input: 100~240V AC 1.0A VAC 50/60Hz Battery: Li-Ion battery, 2200mAh / 14.8V Maximum 4 hours of continuous monitoring FHR and TOCO |
12 | Parameters |
Standard: FHR, TOCO, FM Optional: FHR2, Fetus waker, Trolley, Wall Mount Touch screen function Connect with L8T Wireless station L8A (Maternal SpO2, PR, NIBP) FAS (Fetal Acoustic Stimulator) Twins FHR Measurement |
13 | Weight | 1.75kgs |
14 | Dimensions |
295(L)*240(W)*75(H)mm |
