Product Details:
|
| B&W Mode: | 4B; M,B/M; CFM; PDI; PW; THI | Gray Scale: | 256 |
|---|---|---|---|
| Display: | 10.4 Inch Color LED Monitor | Transducer Frequency: | 2-12Mhz |
| Main Unit Size: | Approx. 256*150*326(mm, L*M*H) | Weight Of Main Unit: | Approx. 4.5kg(excluding Accessories) |
| Report: | OB, Cardio, Urological Report | U-disk Capacity: | 16G |
| Dual-mode TV Output: | PAL/NTSC | Probe Connector: | 2 |
| Language: | English/Chinese | ||
| Highlight: | hand held doppler,handheld doppler ultrasound |
||
BIO 5000C is a portable Color Doppler,designed and produced by our professional team,leading image process technical and advanced and practical clinic solution method. It’s highly cost effective and reliability. It’s the ideal option for primary hospitals,clinics,etc
Product Function
Powerful Data Management
1. Optimize checking image function,realize 1-2 second response
2. Intelligent user defined,one-key review and storage function
3. Neoteric internal workstation multi-plan module,quickly finish data,report,realize process multi medical histories function
Reasonable Humanization Design
1. 10.4 inch color LED full screen display,angle adjustable
2. One-key-light keyboard function for black room use
3. One button operation including one-key storage image/ review/print,etc
4. Quick look up stored image function to improve work efficiency
5. Multifunctional knob design,achieve one-key quick adjustable in multi-mode
Standard Configuration
1. Main unit
2. 3.5MHz multi-frequency abdomen convex probe

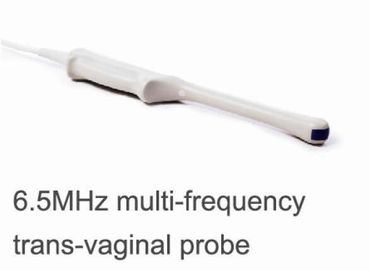

3. 6.5MH multi-frequency trans-vaginal probe
7.5MHz multi-frequency linear probe
4. Working station
5. Reticle
Optional Configuration
1. Trolley
2. Foot switch
3. Thermal printer
4. Ethernet switch
Product Mode And Technology
| Operation mode | B,B/B,4B mode,M,B/M mode |
| Color flow mode(CFM) | |
| Power Doppler mode(PDI) | |
| Pulsed-wave Doppler(PW) | |
| Tissue harmonic imaging(THI) | |
| Ultrasonic imaging technology | 1. High precision digitizing continued wave former |
| 2. Dynamic frequency blend imaging technology | |
| 3. High precision delay point-by-point dynamic receiving focus | |
| 4. Ultra-broadband imaging technology | |
| 5. Automatic optimizing process image technology | |
| 6. Automatic vessel imaging technology | |
| 7. Automatic Doppler imaging technology | |
| 8. THI structure harmonic imaging technology |
| Specifications | |
| Monitor | 10.4 inch color LED monitor |
| Operation Mode | 4B; M,B/M; CFM; PDI; PW; THI |
| Gray / Color scale | 256 |
| Adapter rating | 100-240V~1.2-6.0A |
| Power Frequency | 50-60Hz |
| Output of adapter | DC12.8V 3.0A |
| Power consumption | ≤100VA |
| Main unit size | approx. 256*150*326(mm, L*M*H) |
| Weight of main unit | approx. 4.5kg(excluding accessories) |
| Report | OB, Cardio, Urological report |
| U-disk capacity | 16G |
| Dual-mode TV output | PAL/NTSC |
| Probe connector | 2 |
| Language | English/Chinese |
