Product Details:
|
| Working Methods: | Near Infrared Light | Light Source: | LED |
|---|---|---|---|
| Display Mode: | Projecting To Human Skin | Radiation: | No |
| Warranty: | 12 Months | Image Resolution: | 360*240 Pixel |
| High Light: | vein finder machine,portable vein finder |
||
Facial Veins Detector Handheld Infrared Vein Finder 360*240 Pixel Image Resolution

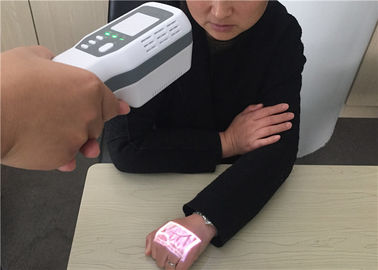

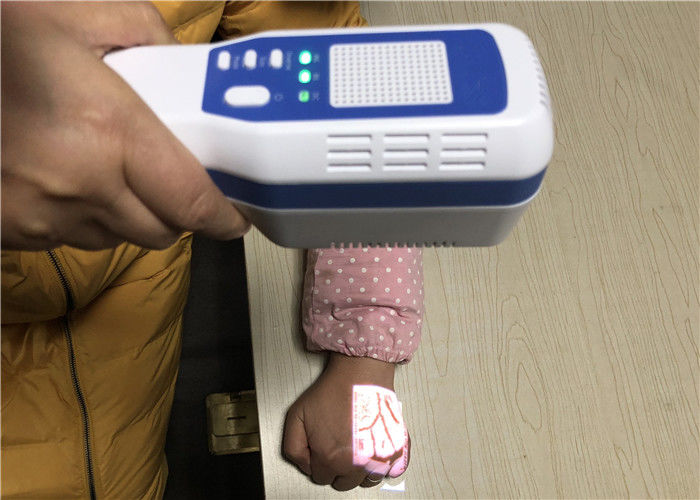

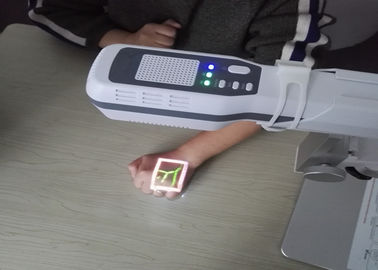

BS5000 is designed on the principle that hemoglobin has a stronger absorption under near-infrared light. After the photosensitive element acquires the infrared image of the skin, the product maps the outline of the vein through a series of digital image processing. Then, the projector projects the image on the surface of human skin to restore vein distribution. Vein Finder BS5000 is easy and simple to operate. Qualified medical personnel can easily locate for venipuncture by observing the vein image.
With the gradual improvement of people's living standards, the rate of obesity also increases daily.
Since it is hard to locate and trace veins of the obesity and some infants, venipuncture has become an increasingly challenging field for medical practitioners and brings great pains to the patients during injection or blood-drawing. It is not surprising if a medical practitioner cannot find blood veins accurately. The rate of successful venipuncture for the first time is as law as 70%.To help medical personnel to locate blood veins easily,Vivolight has developed this Projection Vein Finder.
Product Specification
| Product model | BS5000 |
| Display mode | Projection |
| Infrared light wavelength | 850nm&940nm |
| Infrared radiation value | ≤0.6mW/m² |
| Alignment accuracy | ≤0.5mm |
| Image resolution | 856*480pixel |
| Brightness | 4 adjustable levels |
| Source Type | near-infrared light (no radiation) |
| Depth of detectio: | shallow: 0~2mm |
| deep: 2~4mm | |
| deeper: ≥4mm | |
| Optimal imaging distance | 210±30mm |
| Net weight | 430g |
| Dimension | 213mm*65mm*62mm(L x W x H) |
| Rated power | 8VA |
| Battery standby time | ≤2.5h |
| Charging time | ≤4h |
