Product Details:
|
| Wavelengths: | 850nm And 940nm | Image Resolution: | 360*240 Pixel |
|---|---|---|---|
| Light Source: | LED | Radiation: | No |
| Display Mode: | Projecting To Human Skin | Working Methods: | Near Infrared Light |
| High Light: | vein locating device,portable vein finder |
||
Handheld vein Locator Vein Scanner With 360*240 Piexl Resolution
BS5000 is designed on the principle that hemoglobin has a stronger absorption under near-infrared light.
After the photosensitive element acquires the infrared image of the skin, the product maps the outline of
the vein through a series of digital image processing. Then, the projector projects the image on the surface of human skin to restore vein distribution. Vein Finder BS5000 is easy and simple to operate. Qualified medical personnel can easily locate for venipuncture by observing the vein image.
Product Features
- Use safe light source, no laser, no radiation
- High contrast image, no noise or interference
- Vein image projected to human body directly. Clean and avoid any possibility of infection
- No pre-use calibration or adjustments are necessary, just turn it on to display the veins beneath the
skin
- Suitable for overweight or edema patient
- Easy to be placed in rooms of any size
- Movable, with basket to contain accessories
- Continuously work for 3 hours without power supply. Adapter to AC/DC power
- Table type or Trolley type
| Portable and Flexible | Easy to move, fix and operate. One button for power on/off, one button for brightness, one button for color selection Total three Buttons for all operations. |
| Easy to learn, no need for complicated debugging and maintenance. | |
| 3 colors offered | White,grey and green vein for being selected according to user’s habit. |
| Safety | Using near infrared light, no laser, no radiation. |
| Accurate | Real show on skin, affectless images of veins. |
| Fast | Focus on vein automatically, show vein immediately. |
| Non-touch | Non-touch to anybody, prevent transmission of the virus. |
| Free environment | Effectively show the vein in dark or bright conditions, indoor and outdoor. Optional battery ensure 2 hours’ continuous working once external power supply is off. |
Product Specification
| Product model | BS5000 |
| Display mode | Projection |
| Infrared light wavelength | 850nm&940nm |
| Infrared radiation value | ≤0.6mW/m² |
| Alignment accuracy | ≤0.5mm |
| Image resolution | 856*480pixel |
| Brightness | 4 adjustable levels |
| Source Type | near-infrared light (no radiation) |
| Depth of detectio: | shallow: 0~2mm |
| deep: 2~4mm | |
| deeper: ≥4mm | |
| Optimal imaging distance | 210±30mm |
| Net weight | 430g |
| Dimension | 213mm*65mm*62mm(L x W x H) |
| Rated power | 8VA |
| Battery standby time | ≤2.5h |
| Charging time | ≤4h |

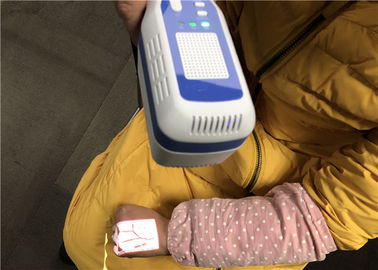

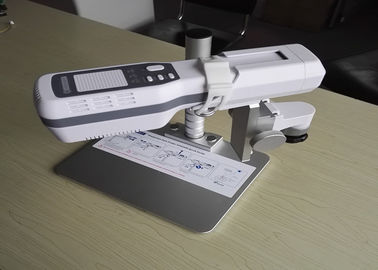

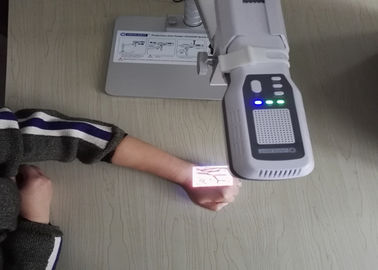

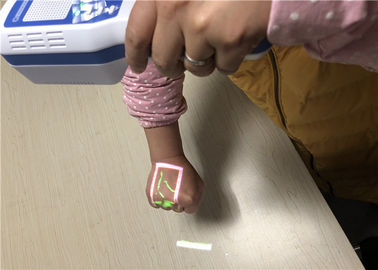

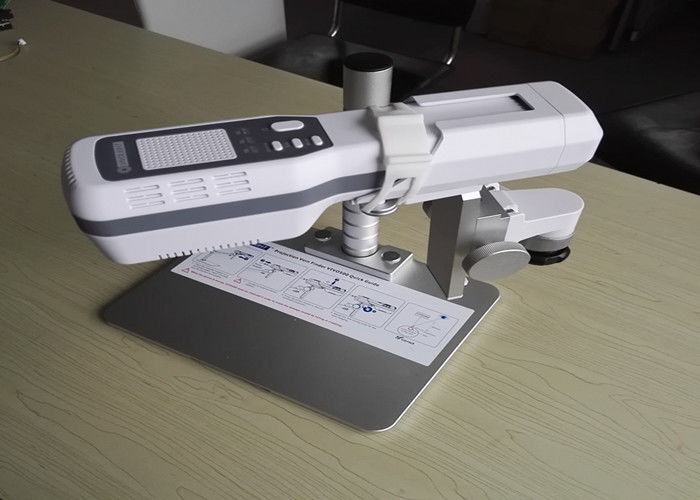

Product Images
