Handheld Portable Vein Finder Device For Nurses And Doctors With Special Light Source

Handheld Portable Vein Finder Device For Nurses And Doctors With Special Light Source

Handheld Portable Vein Finder Device For Nurses And Doctors With Special Light Source

Product Details:

Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: BS300

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Carton (30*27*16cm) 2.3kg
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 200 units / month
Contact Now
Detailed Product Description
Operating Mode: Handheld Or Suspension Infrared Wavelengths: 850nm
Image Resolution: 720*480 Visible Vein Size: ≥1mm
Battery Working Time: ≈ 5 Hours Dimension: 240x60x60mm (LxWxH)
Weight: 450g

Handheld Portable Vein Finder For Nurses And Doctors With Special Light Source





Specification



Light type Near-infrared light
Infrared wavelengths 850 nm
Image resolution 720*480
Visible Vein Size ≥1mm
Accuracy 0.25mm
Depth of Visible Vein ≤12mm
Best projection distance 200±20mm
Image frame rate 20FPS
LED lifetime 20000 hours
Power Supply DC 5V ≤3.5W
Weight 450g
Dimension 240x60x60mm (LxWxH)
Battery volume 4400mAH
Battery working time ≈ 5 hours
Charging time ≈ 3 hours
Battery detachable Yes

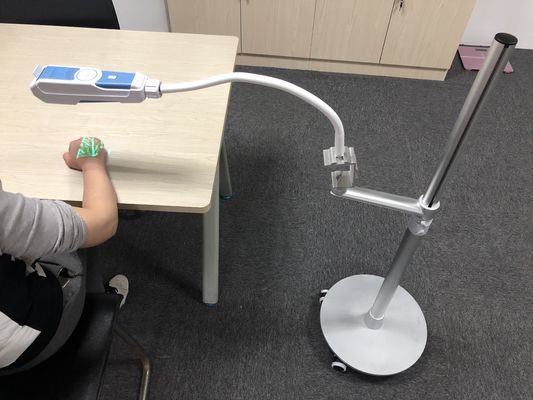

Operating Mode Handheld or Suspension
Package information 52X30X23cm, 2.3kg





Standard configuration

main unit 1 unit
battery 1 pc
charging base 1 pc





Optional

Fixed support Mini Portable Handheld Infared Vein Finder With Near-infrared Light of 850 nm Harmless to Human 1 unit
Mobile supportMini Portable Handheld Infared Vein Finder With Near-infrared Light of 850 nm Harmless to Human 1 unit





Visualization mode

Color 5 colors adjustable, for different patient skin tone and personal preference
Inverse Allows clinicians to switch entre highlight the veins and highlight the surround tissue, for reduce the interference of skin tone, density of hair follicles and room brightness.
Brightness 3 degree brightness adjustable, allow clinicians customizing the image brightness base on the environment light.
Resize 3 kinds of image sizes, for pediatric patients or when need to focus on only one vessel.
Enhanced Mode Helpful for find the small or deep veins.



Handheld Portable Vein Finder Device For Nurses And Doctors With Special Light Source



Handheld Portable Vein Finder Device For Nurses And Doctors With Special Light Source



Handheld Portable Vein Finder Device For Nurses And Doctors With Special Light Source

Handheld Portable Vein Finder Device For Nurses And Doctors With Special Light Source

Handheld Portable Vein Finder Device For Nurses And Doctors With Special Light Source



Handheld Portable Vein Finder Device For Nurses And Doctors With Special Light Source



E-catalogue for BIO_BS300 Vein Finder-20160908.pdf



vein finder bs300 user's Manual.pdf
