Handheld Lightweight Infrared Vein Finder with Optional wheeled or Fixed stands with CE certification

Handheld Lightweight Infrared Vein Finder with Optional wheeled or Fixed stands with CE certification

  • Handheld Lightweight Infrared Vein Finder with Optional wheeled or Fixed stands with CE certification
  • Handheld Lightweight Infrared Vein Finder with Optional wheeled or Fixed stands with CE certification
  • Handheld Lightweight Infrared Vein Finder with Optional wheeled or Fixed stands with CE certification
  • Handheld Lightweight Infrared Vein Finder with Optional wheeled or Fixed stands with CE certification
Handheld Lightweight Infrared Vein Finder with Optional wheeled or Fixed stands with CE certification
Product Details:
Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: BS300
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: 26.5*30.5*16cm 2kg
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 200 units / month
Contact Now
Detailed Product Description
Working Method: Near Infrared Light Color Of Outer Case: White And Blue
Packing: Carton 30*27*16cm (LxWxH) Color Of Light: Blue, Green, White, Red, Yellow
Radiation: No Warranty: 12 Months
High Light:

vein finder machine

,

vein locating device

Handheld Lightweight Infrared Vein Finder with Optional wheeled or Fixed stands with CE certification



BS300 is the latest Vein Finder, which is handheld and lightweight, allowing clinicians to verify vein patency and avoid valves or bifurcations and easily converts to hands-free with the use of optional wheeled or fixed stands.



Specification

Light type Near-infrared light
Infrared wavelengths 850 nm
Image resolution 720*480
Visible Vein Size ≥1mm
Accuracy 0.25mm
Depth of Visible Vein ≤12mm
Best projection distance 200±20mm
Image frame rate 20FPS
LED lifetime 20000 hours
Power Supply DC 5V ≤3.5W
Weight 450g
Dimension 240x60x60mm (LxWxH)
Battery volume 4400mAH
Battery working time ≈ 5 hours
Charging time ≈ 3 hours
Battery detachable Yes
Operating Mode Handheld or Suspension
Package information 30*27*16cm, 2.3kg



Standard configuration

main unit 1 unit
battery 1 pc
charging base 1 pc



Optional

Fixed support Mini Portable Handheld Infared Vein Finder Vein Locator With Near-infrared Light of 850 nm Harmless to Human 1 unit
Mobile supportMini Portable Handheld Infared Vein Finder Vein Locator With Near-infrared Light of 850 nm Harmless to Human 1 unit



Visualization mode

Color 5 colors adjustable, for different patient skin tone and personal preference
Inverse Allows clinicians to switch entre highlight the veins and highlight the surround tissue, for reduce the interference of skin tone, density of hair follicles and room brightness.
Brightness 3 degree brightness adjustable, allow clinicians customizing the image brightness base on the environment light.
Resize 3 kinds of image sizes, for pediatric patients or when need to focus on only one vessel.
Enhanced Mode Helpful for find the small or deep veins.



Product Image



BS300 Medical Vein Viewing System Infrared Vein Finder Handheld Pocket Vein Locator with Near-infrared light



Mini Portable Handheld Infared Vein Finder Vein Locator With Near-infrared Light of 850 nm Harmless to Human



Mini Portable Handheld Infared Vein Finder Vein Locator With Near-infrared Light of 850 nm Harmless to Human



BS300 Medical Vein Viewing System Infrared Vein Finder Handheld Pocket Vein Locator with Near-infrared light



Vein Finder BS300

Higher first-attempt success rate

Lower costs

Better patient care and satisfaction



BS300 Medical Vein Viewing System Infrared Vein Finder Handheld Pocket Vein Locator with Near-infrared light

Support

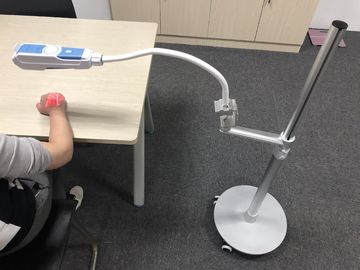

Optional hands-free Mobile or fixed support

Mobile Support

Fixed Support

Handheld Lightweight Infrared Vein Finder with Optional wheeled or Fixed stands with CE certification 7

Powerful Feature

BS300 possesses powerful functions and excellent performance, which can adapt to the differentiated operation needs of clinicians in different environments.
Customized display selection

Enhanced mode for thinner or deeper veins

Sleeping mode, battery fast charge,long life battery



BS300 Medical Vein Viewing System Infrared Vein Finder Handheld Pocket Vein Locator with Near-infrared light



Excellent Charging Plan



The base direct-plug fast charging plan makes the vein finder charge faster, safer and more reliable.

BS300 Medical Vein Viewing System Infrared Vein Finder Handheld Pocket Vein Locator with Near-infrared light



Pls check the below catalouge and user's manual for vein finder BS300:



E-catalogue for BIO_BS300 Vein Finder-20160908.pdf

User's Manual for BIO_BS300.pdf
