Product Details:
|
| Display: | 12.1-inch LED Screen | USB Ports: | 2 |
|---|---|---|---|
| Image Formats: | BMP, JPG, DCM, FRM,CIN | TCG: | 8 Segment |
| B Mode: | 1024frames | M Mode: | 12.4 S |
| Frame Rate: | ≥50fps | Display Depth: | ≥30cm |
| High-Resolution: | 1024 *768 | Gray Scale: | 256 |
| Probe Connect: | 2 | ||
| High Light: | hand held doppler,handheld doppler ultrasound |
||

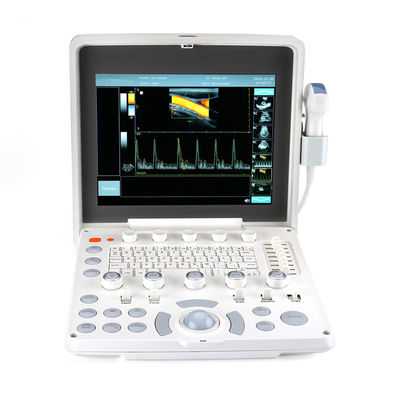

12.1-inch LED Monitor Portable Ultrasound Scanner Color Doppler Machine With 2 USB Port
System Specifications
Net Weight: 5.5 kg (with battery)
Dimensions: 29.8*31.8*13.8cm
Display: 12.1-inch LED monitor
Display Language: English
Power: System operates via AC power
Large capacity Li-battery
-11.1V, 8000MAH;
-up to 1000 times charge-discharge,2 hours fully charged
-Removable
-2.5 hours regular use
-Auto switch to battery power in case of suddenly power off
Advantage
1. 3D imaging for optional
2. Intuitive operation with Auto one-key image optimization
3. Instant images and reports transfer to PC
4. Streamlined work-flow, clean and convenient report system
5. Build-in 128G SSD,data storage more steadily
6. Rechargeable lithium-ion battery:2 hours continuous work
7. Application:Abdomen,Gynecology,Obstetrics,Urology,Blood vessel,MSK,Small parts
8. Slim and elegant appearance design,less than 6 kg net weight
9. Auto Trace Calculation PW
10. Ultra-wide-band beam former
11. Intelligent imaging optimization technology
12. E-Crystal Unique Speaker Reduction Technology
13. AQ-Sonic Unique Noise Reduction Technology
14. Real-time triplex display B/Color Doppler/Pulse Wave Doppler
| System Specifications | |
| Display | 12.1-inch LED screen |
| Probe connect | 2 |
| USB ports | 2 |
| Image formats | BMP, JPG, DCM, FRM,CIN |
| TCG | 8 Segment |
| B mode | 1024frames |
| M mode | 12.4 s |
| Frame rate | ≥50fps |
| Display depth | ≥30cm |
| High-Resolution | 1024 *768 |
| Gray scale | 256 |
| Net Weight | 5.5 kg (with battery) |
| Dimensions | 29.8*31.8*13.8cm |
| Body markers | more than 100 Dynamic range,≤165dB |
| Display Language | English |
| Power | System operates via AC power |

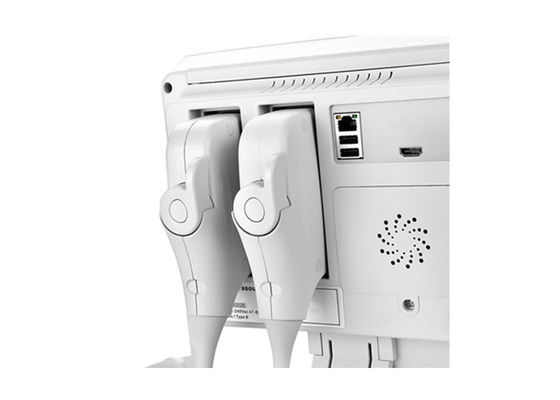

| Ports | USB: 2 USB interface can be connected directly to the electronic printing device to print report and to copy data by mobile storage device |
| HDMI:Can be converted to VGA output interface,director connection to a high-resolution display and other display and other display devices,more convenient for patient to show an ultrasound image | |
| LAN: It can be used directly connected the data cable and transfer data to the internet | |
| Image processing | AQ sonic:Reduce random noise |
| E Crystal:Adaptive speckle suppression improves contrast resolution | |
| Multi-frequency probes for LD imaging modes | |
| Ultra-wideband beamformer | |
| Iintelligent imaging optimization technology | |
| Image Zooming | |
| Near and far Gain adjustment | |
| With dual and duplex imaging | |
| 2D, Color Doppler and PW displaying on one screen in real time | |
| Large capacity Li-battery | 11.1V, 8000MAH |
| up to 1000 times charge-discharge,2 hours fully charged | |
| Removable | |
| 2.5 hours regular use | |
| Auto switch to battery power in case of suddenly power off | |
| Display Modes | Broadband, multi-frequency imaging |
| B, 2B, 4B, B+M, CFM, PDI, DPDI, PW, B+PW(Duplex) | |
| B+CFM/PDI/DPDI+PW(Triplex) | |
| Application | OB/GYN reporting. |
| Small part analysis | |
| Cardiac analysis with intimate medial thickness measurement | |
| Velocity Colour to detect colour flow with PW Abdominal, Obstetrical, Gynecological, Cardiac, Small parts, Urological, Vascular, Orthopedics, MSK | |
| Standard Configuration | Options |
| 12.1-inch LED monitor | 3D function |
| Two transducer connector | Sony UP-897MD Printer |
| Control Panel | One more battery |
| 2 USB ports | Gel |
| HDMI | printer paper |
| LAN | Trolley |
| Handle | |
| Indicators: Power/Battery/Standby |
