Product Details:
|
| Display Mode: | Projection | Light Source: | Near Infrared Light |
|---|---|---|---|
| Infrared Wavelength: | 850NM | Standby Time: | ≥180min |
| Projector Brightness: | 1W20 Lumen（Adjustable） | Position Accuracy: | ≤0.2mm |
| Image Resolution: | 824*480 | Projection Distance: | 25CM~35CM |
| Projection Color: | White, Green, Red And Switchable | Working Mode: | Normal Mode, Child Mode, Invert Colors Mode |
| Depth Recognization: | Mark Of Three Kinds Of Depth | Brightness: | Adjustable |
| Highlight: | vein locating device,portable vein finder |
||
Product Advantage
Venipuncture is the most common traumaticprocedure in medical field. Many nurses are under the hard pressure when doing venipuncture. In order to release pressure for nurses, as well as reduce the patients' pain, BM4000 vein finder has come out to help finding veins properly.
Product Principle
Using the oxyhaemoglobin of surrounding tissues and blood vessels has different absorb dose to different wavelength near-infrared light, let the information through photoelectric conversion and image processing, then display the vein clearly.The enhanced model has various color, which can improve the clarity and identification effectively .
Product Feature
Light, Flexible
Real-time accurate vein display
Multi-application
Wide adjustment of distance and direction
Working Mode

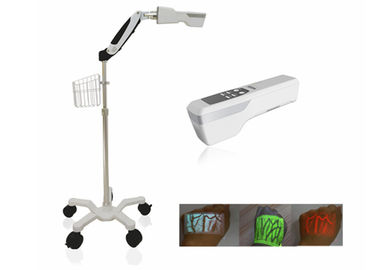

Color adjustment: Switch color among Green, White and Red according to different skin condition. It provide true image of vein in high accuracy.
Brightness adjustment: change projection’s brightness according to circumstance and provide user-friendly operation
Background change: Change projection background by pressing “BWCC” (black & white) button to provide flagrant contrast and locate vein more accurately.
KIDS mode:Apply small projection size for kid’s tiny vein to display kid’s vein with appropriate scale and reduce interference of large size projection.
Product Application
| Product Benefits | Providing friendly treatment |
| Reducing venipuncture failure and patients' pain | |
| Improving staff efficiency and patients' experience | |
| Attracting and helping to retain more patients | |
| Product Applications | Hospital, pediatric clinic, injection room |
| Outpatient clinic, medical laboratory | |
| Blood bank, military medics unit, the CDC | |
| Rehabilitation center, nursing homes and others | |
| Application Scope | Children |
| The elderly | |
| Obese patients | |
| Dark-skinned patients | |
| Patients with anemia, hypotension, or excessive loss of blood |
Product Specification
| Item | Spec |
| Display mode | projection and near Infrared light source |
| The deepest distance | Up to 15mm |
| Infrared wavelength | 850NM |
| Standby time | ≥180min |
| Projector brightness | 1W20 Lumen(Adjustable) |
| Position Accuracy | ≤0.2mm |
| Image Resolution | 824*480 |
| Projection distance | 25CM~35CM |
| Projection color | white, green, red and switchable |
| Working Mode | Normal mode, Child mode, Invert Colors mode |
| Depth recognization | Mark of three kinds of depth |
| Brightness | Adjustable |
| Processor | Inter ®Atom Win8.1 operating system |
| Frame rate | ＞30 frames per second |
| Infrared emission method | switchable between upper infrared light and below infrared light |
