Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light

Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light
Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light

Large Image :  Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light

Product Details:
Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: BS4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Carton (98*77*24cm) 20kgs
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 200 units / month

Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light

Description
Working Methods: Near Infrared Light Display Mode: Projecting To Human Skin
Projection Color: White, Green, Red And Switchable Working Mode: Normal Mode, Child Mode, Invert Colors Mode
Projector Brightness: 1W20 Lumen(Adjustable) Infrared Wavelength: 850NM
Standby Time: ≥180min Image Resolution: 824*480
Depth Recognization: Mark Of Three Kinds Of Depth Brightness: Adjustable
Battery Backup Time: Up To 3.5 Hours Camera Resolution: ≥600Lin
High Light:

vein locating device

,

portable vein finder

Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light





Quick Details
  • Focus on vein automatically, show vein immediately.
  • Using near infrared light, no laser, no radiation.
  • Real show on skin, affectless images of veins.
  • Non-touch to anybody, prevent transmission of the virus.

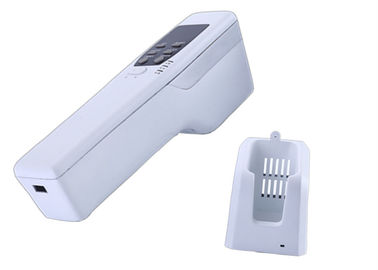

Vein locator BS4000 uses an infra-red camera to highlight blood and then projects the image onto the skin, making easier for health care provides to do necessary needle sticks.Suitable for locate the veins on dorsal hand, arm, elbow, foot and head.

Latest Vein Viewer is a revolutionary tool for helping to locate veins for medical procedures. Useful for a variety of patients in many settings and serves to supplement existing venipuncture techniques.



Feature



  1. Use safe light scource, no laser, no radiation
  2. High contrast image, no noise or interference
  3. Vein image projected to human body directly.Clean and avoid any possibility of infection
  4. No pre-use calibration or adjustments are necessary,just turn it on to display the veins beneath the skin
  5. Suitable for overweight or edema patient
  6. Easy to be placed in rooms of any size
  7. Movable, with basket to contain accessories
  8. Continuously work for 3 hours without power supply. Adapter to AC/DC power
  9. Cart type or Trolley type

Specification



Display mode projection and near Infrared light source
The deepest distance Up to 15mm
Infrared wavelength 850NM
Standby time ≥180min
Projector brightness 1W20 Lumen(Adjustable)
Position Accuracy ≤0.2mm
Image Resolution 824*480
Projection distance 25CM~35CM
Projection color white, green, red and switchable
Working Mode Normal mode, Child mode, Invert Colors mode
Depth recognization Mark of three kinds of depth
Brightness Adjustable
Processor Inter ®Atom Win8.1 operating system
Frame rate >30 frames per second
Infrared emission method switchable between upper infrared light and below infrared light
Main wavelength of light source 750nm~940nm
Base Charger host and charger can be separated, DC +12V 4A
Battery backup time Up to 3.5 hours
Surface temperature Increase 10℃ or less after 30 minutes running
Camera resolution ≥600Lin
Operation mode Run continuously
Atmospheric pressure 86kPa~106kPa
4 hours
Power supply DC+12V, 10W
Safety classification class I type B
Machine net weight 0.5KG
Machine size 22cm*5cm*7cm
Intensifier Waveform: 850nm,DC+12V, 1000mA, 12.6W
  Dimension: 19cm*30cm*33cm, Weight less than 0.3kg
Bracket Moving trolley or Table-top Bracket(Optional)





Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light 0

Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light 1Trolley Vascular Detector Vein Finder Detector Vein Locator Device With Infrared Light 2
