Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution

Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution
Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution
Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution

Large Image :  Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution

Product Details:
Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: ECO BS300
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Main unit (45X26X15cm 1.4Kg) + Support (110X30X15cm 1.8Kg) + Base (70X70X22cm 4Kg)
Delivery Time: 7 working - days at sight of payment
Payment Terms: T/T, Paypal
Supply Ability: 200 units / month

Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution

Description
Light Type: Near-infrared Light Image Resolution: 720*480
Visible Vein Sizev: ≥1mm Accuracy: 0.25mm
Best Projection Distance: 200±20mm LED Lifetime: 20000 Hours
Power Supply: DC 5V ≤3.5W Battery Working Time: 4 Hours
High Light:

vein finder machine

,

portable vein finder

Clear Imaging Adult And Children Infared Vein Finder With Near - Infared Light



Feature



• Target vein quike finding: Helpful for finding the target veins efficiently and easily
• Guidance for venipuncture: Provide a more clear vein view, Indicate the vein position, trend, branch, crossing
• Vein evaluation: Evaluate the vein filling condition
• Aesthetic medical injection: Helpful for medical staffs to avoid the veins
• Feeder vein treating: Helpful for finding more feeder veins and treat throughly, make the feeder treating visible



Introduction

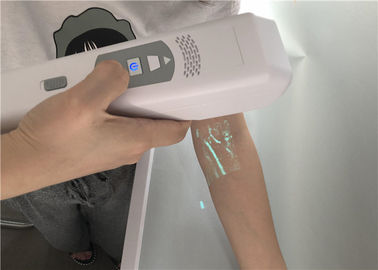

The BS300 vein finder detects veins beneath the skin by using infrared light, then projecting the image of the veins on the skin surface directly above the veins.

Qualified medical personnel can observe the displayed vasculature to find a vein of the right size and the location of superficial veins for venipuncture and other medical procedures.The BS300 vein finder only shows superficial vasculature. The maximum depth of displayed veins varies by patients.

The causes for the different depths of display that are less than optimal or lack of vein include, but are not limited to, vein depth, skin conditions (e.g. eczema, tattoos), hair, scarring or other highly contoured skin surface, and adipose (fatty) tissue.

When h



Product Parameter



Light Type Near-infrared Light

Best Projection Distance 200±20cm

Dimension 25*24*12.5cm(L*W*H)

Battery Working Time 4 hours

Operating Mode Handheld ,Desktop,Trolley



Visualization mode



Color 2 colors adjustable, for different patient skin tone and personal preference
Inverse Allows clinicians to switch entre highlight the veins and highlight the surround tissue, for reduce the interference of skin tone, density of hair follicles and room brightness.
Brightness 3 degree brightness adjustable, allow clinicians customizing the image brightness base on the environment light.



Specification



Light type Near-infrared light
Infrared wavelengths 850 nm
Package information 28.5*24*12.5cm, 2.3kg
Image resolution 720*480
Visible Vein Size ≥1mm
Accuracy 0.25mm
Depth of Visible Vein ≤12mm
Best projection distance 200±20mm
Operating Mode Handheld or Suspension
Image frame rate 20FPS
LED lifetime 20000 hours
Power Supply DC 5V ≤3.5W
Battery working time 4 hours
Dimensions 24*6*6cm



Application Outstanding Performance In
Pediatrics Infant head
Oncology Infant hand
Radiology Fat patient
Vasucar Surgery Wrist
Plastic Surgery Face
Laboratory Thigh
Emergency Dark skin
Outpatient
Surgery



Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution 0Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution 1Handheld transilluminator Vein Viewer Infared Vein Finder With High Image Resolution 2
