2. 0MHz~10. 0MHz 18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output

2. 0MHz~10. 0MHz  18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output
2. 0MHz~10. 0MHz  18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output 2. 0MHz~10. 0MHz  18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output 2. 0MHz~10. 0MHz  18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output

Large Image :  2. 0MHz~10. 0MHz 18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output

Product Details:
Place of Origin: China
Brand Name: BIO
Model Number: 5000M
Type: Color Doppler Ultrasound Equipments
Portable: Full digital
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: 1 unit
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T

2. 0MHz~10. 0MHz 18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output

Description
Monitor: 18.5" LCD Touch Monitor Video Output: Video Output
Digital Scan Converter: 628× 440 × 24 Bits Body Mark: 123 Body Marks With Probe Location
Probe Frequency: 2. 0MHz~10. 0MHz Gray Scale: 256
Color Scale: 24 Frame Rate: Max. Up To 70 F/s
Scanning Area: ≥ 320 Mm Density Of Scanning Lines: Max 256 Line/frame
Cine Loop: ≥1024 Frames Biopsy: Optional Biopsy Guide
High Light:

hand held doppler

,

hand held doppler machine

2. 0MHz~10. 0MHz 18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output

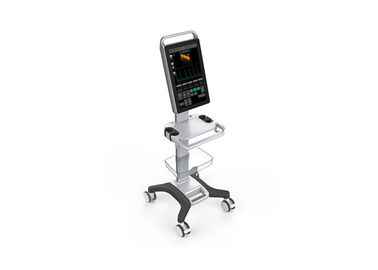

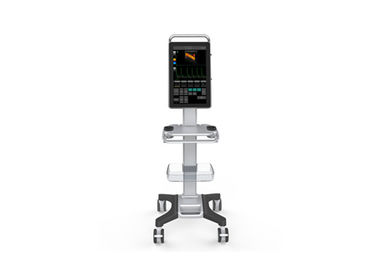

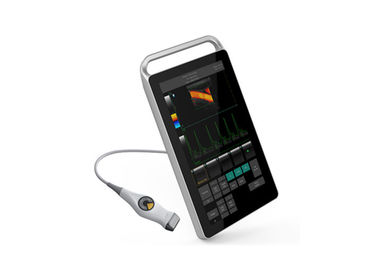

5000M,​All touch-screen Color Doppler Ultrasound System





Advantage



1. 18.5-inch full touch screen design,to ensure aseptic operation.

2. All metal shell with unique design, sturdy and durable.

3. Professional software packages for Puncture application.

4. Build-in large capacity battery,for 8 hours continuous work.

5. Advanced image processing technology with high resolution display.

6. Multiple application:Reproductive Medicine,puncture guided,some special application like foot and Musculoskeletal system check, limited space clinic.

7. With special attention to mode,P6 include two different mode,Expert mode and Simple mode,suitable for any department and quite accessible for any doctor.





Specification



Monitor 18.5" LCD touch monitor
Video Output Video Output
Digital Scan Converter 628× 440 × 24 bits
Body Mark 123 body marks with probe location
Probe Frequency 2. 0MHz~10. 0MHz
Gray Scale 256
Color Scale 24
Frame Rate Max. up to 70 f/s
Scanning Area ≥ 320 mm
Density of Scanning Lines Max 256 line/frame
Cine loop ≥1024 frames
Biopsy Optional biopsy guide
Display Mode B, 2B, 4B, M, B+M, CFM, PDI, B+PW, B+CFM+PW, B+PDI+PW
Type of Focusing Dynamic focusing, acoustic lens focusing, launching multipoint focusing
Scanning Technique Dynamic apodization, dynamic aperture, dynamic frequency scanning, multi-acoustic beam
Pre-processing low noise preamplifier, TGC, filtering, frame average, line average
Post-processing Gamma correction, histogram, digital scan conversion (DSC), edge enhancement, noise rejection, smooth, ePure, grey scale transformation, pseudo-color, color persistence etc
Display Control Freeze/Unfreeze, Left-right reverse, Up-down reverse, Polarity reverse, picture rotation (90°/180°/270°), color reverse, inverse-frequency spectrum, pseudo-color.
Control of Transformation and Adjustment on Sound Field output acoustic power, PRF, focus position, scanning angle, image frame frequency, impulse duration, depth, sampling area dimension
General Measurement 2D/CFM: Distance, area, volume (ellipse method), angle;
M: Distance, time, slope, heart rate, simplified left ventricle function, complete left ventricle function;
PW: Distance, max ventricular gradient, average ventricular gradient, time, S/D ration, blood flow rate, acceleration of blood flow, heart rate, pulsate & drag index.
Image Memory Hard disk for massive image storage, min. 10,000 images permanent stored
Character Date, time, patient name, device name, user name etc, user-defined annotation table, arrowhead and body marks
Measurement Software Software packages of Abdomen, Urology, Cardiology, Obstetrics, Gynecology, Superficial Parts, Blood Vessels, Fetal Heart, Transcranial Doppler and Orthopedic Surgery; directly form diagnostic report based on measurement results.
Input Power 120VA
Continuous Working Time >8 h
Size(3 cartons) 65*42*18cm;140*15*9cm;73*60*39cm
Weight 40kg



2. 0MHz~10. 0MHz  18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output 02. 0MHz~10. 0MHz  18.5 Inch Full Touch Screen Trolley Color Doppler Machine With Video Output 1
