Product Details:
|
| Element: | 128 | Frequency: | Convex: 3.5~5MHz, Linear: 7.5~10MHz, Cardiac: 2.5~5MHz |
|---|---|---|---|
| Connection: | Wifi | Channel: | 64 |
| Battery Capacity: | 4200mAh | Image Mode: | B,BM,Color,PDI,PW |
| Size: | 157(h)x70(w)x30(d) Mm | Weight: | 227g |
| High Light: | handheld doppler ultrasound,hand held doppler machine |
||

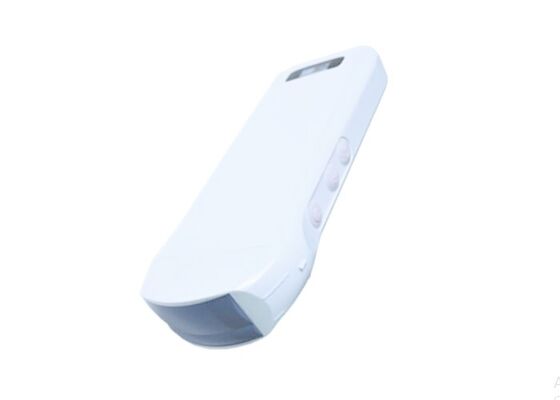

Ultrasound Color Doppler Diagnostic Ultrasound Equipment Download Software From App Store or Google Play
3 In 1 Wireless
A portable and affordable ultrasound machine. With the use of a chip, a single probe, a built-in WiFi signal,
a lithium battery and an iPhone / iPad / Android / Windows devices, now you can have an ultrasound anywhere, anytime.
W5 Ultrasound Scanners are wireless and work with a mobile app that is compatible with most IOS
and Android smart devices as well Windows system. Imaging transmission is done by internal 5G wifi ,
no external networks needed and work for most specialties in hospitals , clinics, healthcare center etc.
Specification
| Type | Linear/convex/cardiac | Imaging mode | B,BM,Color,PDI,PW |
| Frequency |
Convex:3.5/5Mhz Linear:7.5/10MHz Cardiac:2.5/5Mhz |
Depth |
Convex:90~305mm Linear:20~80mm Cardiac:90~160mm |
| Elements | 128 | Working system | IOS,Android,Windows |
| Battery time |
Working time: >=3h Standby time:>=12h |
Battery life | 5~8 years |
| Dimensions | 157(h)x70(w)x30(d) mm | Package size | 240(h)x235(w)x100(d) mm |
| Net weight | 227g | Gross weight | 1.1KGS |
| Radius | R45 | Length | N/A |
| WIFI type | 802.11n/20MHz/5G | Battery Replaceable | Yes |
| Battery Voltage | 3.7v | Battery Capacity | 4200mAh |
|
APP interface adjustment |
GN(gain) D(depth) ENH(enhancement) DR(dynamic range) F(frequency) Mode 8TGC
|
Measurement: B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL)
B+M: Heart Rate, Time, Distance
B+PW: Velocity, Heart Rate (2), S/D, Depth |
Applications: -Abdomen -Obstetrics/ Gynecology -Cardiac -Kidney -Urology -Breast -Thyroid -MSK -Vascular -Pediatrics -Carotid -Small Parts |

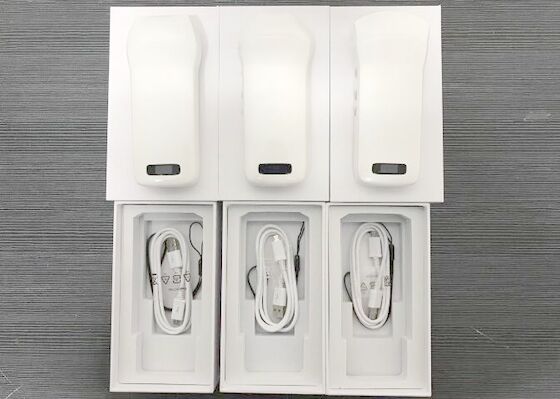

Standard Configuration
| 1 | Wireless probe | 1pc |
| 2 | USB cable | 1pc |
| 3 | Power Plug | 1pc |
| 4 | Wireless charger | 1pc |
| 5 | Wrist strap | 1pc |
| 6 | Portable aluminium alloy box | 1pc |
| 7 | User's Manual_E format | 1pc |
| 8 | Warranty Card_Eformat | 1pc |
| 1 | Wireless ultrasound probe connection |
Wifi connection Support high-speed transmission of 5G channel vailable to users worldwide |
| 2 | The software supports three systems simultaneously | IOS/Android/windows |
| 3 | Free use of the software for life |
Free unlimited upgrade Do not limit the number of users |
| 4 | The probe scanning method can be switched at any time through the software. |
Electronic convex Electronic linear Electronic Cardiac |
| 5 | Probe configuration with ultra-wide frequency and variable frequency (2.5MHz-10MHz) | All-in-one probe |
| 6 | Suitable for more than 20 clinical applications of systemic examination |
liver, gallbladder, spleen, kidney, bladder, obstetrics and gynecology, blood vessels, thyroid, breast, nerve, musculoskeletal, small organs, hip bone, Cardiac, etc. |
| 7 | Built-in 4200mAh lithium battery, support wireless charging |
Long standby 11h attery life of 5-8 years Fast charging |
| 8 | Low-power processing for long-lasting work and increased productivity |
Power consumption is only 2.5W, the machine works continuously for 5 hours. |
| 9 | Lightweight design, the whole machine weight | 227g |
| 10 | Support for Dicom | 3.0 features |
| 11 | 18 months warranty, after-sales service is more assured |
Global free repair The failure rate is less than 1% |
| 12 | Worldwide delivery, delivery to the door within 3-10 business days |
High efficiency transportation, express mail support for all countries |
| 13 | Advanced configuration |
Wireless charging board Lightweight special aluminum case Anti-shedding wristband |
