Product Details:
|
| Dynamic Range: | 36~102dB | Screen: | 12 Inch High Resolution Color LED |
|---|---|---|---|
| Control Panel: | 9.7 Inch Touch Screen | Probe Connector: | 1 |
| USB Port: | 1 | Depth: | 1~23cm |
| TGC Slide Pots: | 8-step | Gain: | 0~100 DB |
| High Light: | portable ultrasound equipment,portable ultrasound device |
||

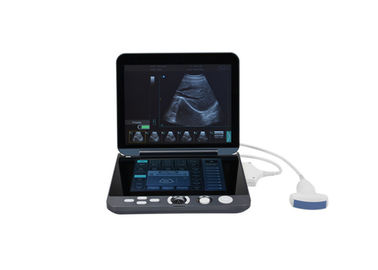

Digital Portable Mobile Laptop Ultrasound Scanner With 12-inch LED Display & 9.7-inch Touch Screen
BIO 3000K is a notebook Back and White ultrasound system with full touch screen ,
which reflects our pursuit of ultrasound image , operation and mobile performance .
With a break design concept , we provide a more clear image quality .
More stable performance , and bring you a comprehensive clinical diagnosis solution ,
giving you a new experience for you ultrasonic diagnostic work.
Operation Video
Feature
| 1 | 12-inch LED display , 9.7-inch touch screen control panel makes the operation of the system more simple. |
| 2 | Build-in lithium battery for 2 hours of continuous operation. |
| 3 | Build-in 32GB SSD for more reliable data storage. |
Technical Specification
| Monitor | 12-inch LED display |
| Control panel | 9.7-inch touch screen |
| Probe connector | 1 |
| USB port | 1 |
| HDMI output | 1 |
| LAN output | 1 |
| TGC slide pots | 8-step |
| Gain | 0~100 dB |
| Depth | 1~23cm |
| Dynamic range adjustable | 36~102dB |
| Edge enhancement | 0~4 |
| Dynamic range adjustable | 36~102dB |
| Angle | 50%~100% |
| Power | 80%~100% |
| AQ Sonic | 0~8 |
| E Crystal | 0~8 |
| Lines Density | Low, medium, standard, high |
| Frame Average | 0~7 |
| Map | 1~16 |
| Focus position | 1~4 |
| Focus number | 1~5 |
| Brightness | ±100% |
| Applications | Abdomen, Urology, Gynecology,Obstetrics ,Multinational Thyroid, Breast, Testes, Peripheral |
| Display mode | B, 2B, 4B mode M, B/M mode Zoom B mode Compound imaging Trapezoid imaging Multiple Beam Formation Lines Density: Low, Medium, Standard High |
| Zoom | Zoom frozen 9 Steps: ×0.5, ×0.75, ×1.0, ×1.5, ×2.0, ×2.5,×3.0, ×4.0, ×6.0 |
| Memory | Cine-memory - Line Ratio B-mode (max.1024 frames) M-mode (max.1024 frames) Hard disk 32GB SSD |
| Weight | Gross weight:7.5kg (2 probes) 8.5kg (4 probes) Net weight :4.0kg,0.5kg(battery) |
| Power Requirements | Voltage: AC 100V to 240V±10% Frequency: 50HZ±1Hz; 60Hz±1Hz Rated Power: 250VA |
| Software & Accessories | Power Cable Operation Manual Hand-carry bag |
| Optional Accessories | Mobile Trolley Video Printer Ink-Jet Printer Laser Printer HDML Video Converter |
BIO- Catalogue for ultrasound scanner 3000K.pdf
