|Light Type:||Near-infrared Light||Infrared Wavelengths:||850 Nm|
|Image Resolution:||720*480||Visible Vein Size:||≥1mm|
|Battery Working Time:||4 Hours||Accuracy:||0.25mm|
|LED Lifetime:||20000 Hours||Dimensions:||24*6*6cm|
portable vein finder,
vein locating device

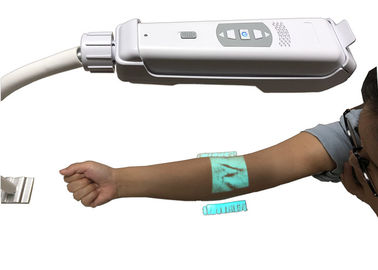

Trolley and Desk Type Infrared Vein Finder Brightness adjustable with Infrared Wavelengths of 850nm

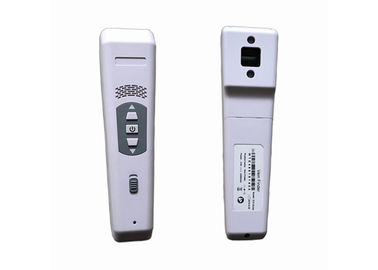

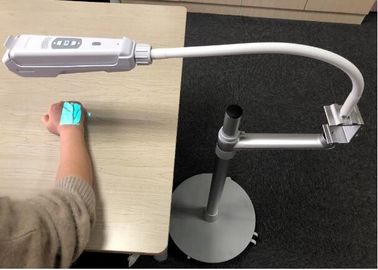

Handheld vein finder are designed specially aiming to health care staff having mobile requirements and the mobile chassis of the bracket is stable and firm; Also accessories, such as personalized pushing hands and storage basket, etc. are equipped; Hover bracket for universal position and multi-joint adjustable mechanisms are equipped with features, for example high flexibility and easy to operate and so on.

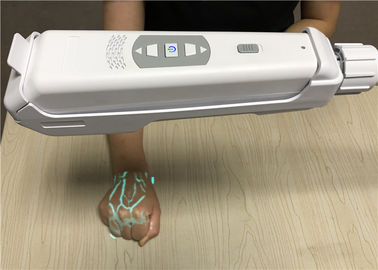

With Vein finder clinicians can see peripheral veins, bifurcations and valves and assess in real time the refill/flushing of veins. With visualization Pre-, During- and Post-procedure, clinicians can potentially avoid complications from accidental puncture. Improving the total vascular access procedure, not just the stick.
Light Type Near-infrared Light
Best Projection Distance 200±20cm
Battery Working Time 4 hours
Operating Mode Handheld ,Desktop,Trolley
• Target vein quike finding: Helpful for finding the target veins efficiently and easily
• Guidance for venipuncture: Provide a more clear vein view, Indicate the vein position, trend, branch, crossing
• Vein evaluation: Evaluate the vein filling condition
• Aesthetic medical injection: Helpful for medical staffs to avoid the veins
• Feeder vein treating: Helpful for finding more feeder veins and treat throughly, make the feeder treating visible
1. Color:2 colors adjustable, for different patient skin tone and personal preference
2. Inverse: Allows clinicians to switch entre highlight the veins and highlight the surround tissue.
To reduce the interference of skin tone, density of hair follicles and room brightness.
3. Brightness: 3 degree brightness adjustable, allow clinicians customizing the image brightness base on the environment light.
|Application||Outstanding Performance In|
|Light type||Near-infrared light|
|Infrared wavelengths||850 nm|
|Package information||28.5*24*12.5cm, 2.3kg|
|Visible Vein Size||≥1mm|
|Depth of Visible Vein||≤12mm|
|Best projection distance||200±20mm|
|Operating Mode||Handheld or Suspension|
|Image frame rate||20FPS|
|LED lifetime||20000 hours|
|Power Supply||DC 5V ≤3.5W|
|Battery working time||4 hours|
