Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients

Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients
Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients

Large Image :  Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients

Product Details:
Place of Origin: China
Brand Name: BIO
Certification: CE
Model Number: BS300
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Carton (30*27*16cm) 2.3kgs
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 200 units/month

Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients

Description
Light Type: Near-infrared Light Infrared Wavelengths: 850 Nm
Image Resolution: 720*480 Depth Of Visible Vein:: ≤12mm
Battery Working Time: ≈ 5 Hours Charging Time: ≈ 3 Hours
Warranty: 12 Months
High Light:

vein finder machine

,

portable vein finder

Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients



Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients 0



Specification

Light type Near-infrared light
Infrared wavelengths 850 nm
Image resolution 720*480
Visible Vein Size ≥1mm
Accuracy 0.25mm
Depth of Visible Vein ≤12mm
Best projection distance 200±20mm
Image frame rate 20FPS
LED lifetime 20000 hours
Power Supply DC 5V ≤3.5W
Weight 450g
Dimension 240x60x60mm (LxWxH)
Battery volume 4400mAH
Battery working time ≈ 5 hours
Charging time ≈ 3 hours
Battery detachable Yes

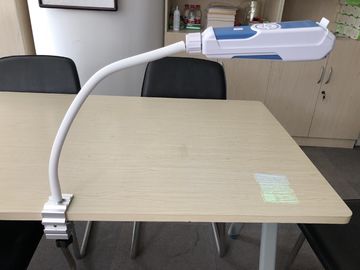

Operating Mode Handheld or Suspension
Package information 30*27*16cm, 2.3kg



Standard configuration

main unit 1 unit
battery 1 pc
charging base 1 pc



Optional

Fixed support Mini Portable Handheld Infared Vein Finder With Near-infrared Light of 850 nm Harmless to Human 1 unit
Mobile supportMini Portable Handheld Infared Vein Finder With Near-infrared Light of 850 nm Harmless to Human 1 unit



Visualization mode

Color 5 colors adjustable, for different patient skin tone and personal preference
Inverse Allows clinicians to switch entre highlight the veins and highlight the surround tissue, for reduce the interference of skin tone, density of hair follicles and room brightness.
Brightness 3 degree brightness adjustable, allow clinicians customizing the image brightness base on the environment light.
Resize 3 kinds of image sizes, for pediatric patients or when need to focus on only one vessel.
Enhanced Mode Helpful for find the small or deep veins.



Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients 3



Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients 4

Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients 5Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients 6Hospital Pediatric Clinic Vein Locating Device For Quick Injection For Patients 7



E-catalogue for BIO_BS300 Vein Finder-20160908.pdf

vein finder bs300 user's Manual.pdf
