Product Details:
|
B&W Mode: | 4B; M,B/M; CFM; PDI; PW; THI | Gray Scale: | 256 |
---|---|---|---|
Display: | 10.4 Inch Color LED Monitor | Transducer Frequency: | 2-12Mhz |
Adapter Rating: | 100-240V~1.2-6.0A | Power Frequency: | 50-60Hz |
Output Of Adapter: | DC12.8V 3.0A | Power Consumption: | ≤100VA |
Report: | OB, Cardio, Urological Report | U-disk Capacity: | 16G |
Probe Connector: | 2 | LanguageEnglish/Chinese: | English/Chinese |
High Light: | handheld doppler ultrasound,hand held doppler machine |

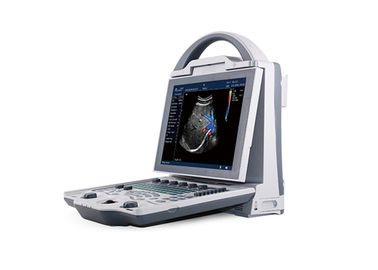

BIO 5000C is a portable Color Doppler,designed and produced by our professional team,leading image process technical and advanced and practical clinic solution method. It’s highly cost effective and reliability. It’s the ideal option for primary hospitals,clinics,etc.
Measurement report
OB measurement report, GYN measurement report, cardiac measurement report, urology measurement report and other measurement report, automatically store the measurement result and generate report.

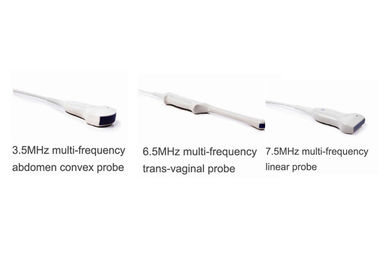

Probe configuration
1. 3.5MHz multi-frequency abdomen convex probe
2. 6.5MH multi-frequency trans-vaginal probe
3. 7.5MHz multi-frequency linear probe
Completely Independent Intellectual Property
Master Core Technology
1. Transmitted signal accuracy control
2. iMage:image optimization imaging technique
3. Adaptive color artifact removal technique
4. Linear probe independent angle deflection
5. I-station integral working station
6. Phase enhance harmonic
7. Accurate vessel image
8. Convenient and practical data management
9. Abundant measuring software
Multi-media and accessory equipments
1. Video recorder
2. I-station integral work station to finish image storage, report form and cloud print
3. U flash disk (file management, software upgrade and one-key storage) and DICOM port, convenient for data management and available to removal transmission.
4. Dual-mode TV output: PAL/NTSC
Specifications | |
Monitor | 10.4 inch color LED monitor |
Operation Mode | 4B; M,B/M; CFM; PDI; PW; THI |
Gray / Color scale | 256 |
Adapter rating | 100-240V~1.2-6.0A |
Power Frequency | 50-60Hz |
Output of adapter | DC12.8V 3.0A |
Power consumption | ≤100VA |
Main unit size | approx. 256*150*326(mm, L*M*H) |
Weight of main unit | approx. 4.5kg(excluding accessories) |
Report | OB, Cardio, Urological report |
U-disk capacity | 16G |
Dual-mode TV output | PAL/NTSC |
Probe connector | 2 |
Language | English/Chinese |
Operation mode | B,B/B,4B mode,M,B/M mode |
Color flow mode(CFM) | |
Power Doppler mode(PDI) | |
Pulsed-wave Doppler(PW) | |
Tissue harmonic imaging(THI) | |
Ultrasonic imaging technology | 1. High precision digitizing continued wave former |
2. Dynamic frequency blend imaging technology | |
3. High precision delay point-by-point dynamic receiving focus | |
4. Ultra-broadband imaging technology | |
5. Automatic optimizing process image technology | |
6. Automatic vessel imaging technology | |
7. Automatic Doppler imaging technology | |
8. THI structure harmonic imaging technology | |
Standard configuration | 1. Main unit: 1 PC |
2. work station | |
3. Reticle | |
4. 3.5MHz multi-frequency abdomen convex probe. | |
5. Choose between | |
6. 6.5MHz multi-frequency trans-vaginal probe. | |
7. 7.5MHz multi-frequency linear probe | |
Optional accessories | 1. Trolley |
2. Foot switch | |
3. Thermal printer | |
4. Ethernet switch |
