Place of Origin: | China |
Brand Name: | BIO |
Certification: | CE |
Model Number: | BS4000 |
Minimum Order Quantity: | 1 unit |
---|---|
Delivery Time: | 7 working - days since getting full payment |
Payment Terms: | Credit card, Paypal, T/T |
Supply Ability: | 50 units /month |
Projection Distance: | 25CM~35CM | Display Mode: | Projection And Near Infrared Light Source |
---|---|---|---|
The Deepest Distance: | Up To 15mm | Infrared Wavelength: | 850NM |
Standby Time: | ≥180min | Projector Brightness: | 1W20 Lumen(Adjustable) |
Position Accuracy: | ≤0.2mm | Image Resolution: | 824*480 |
Projection Color: | White, Green, Red And Switchable | Working Mode: | Normal Mode, Child Mode, Invert Colors Mode |
High Light: | vein finder machine,portable vein finder |

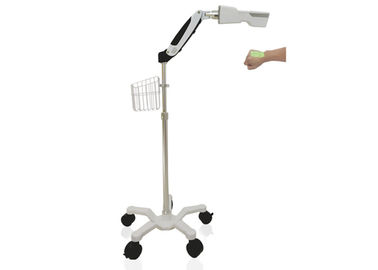

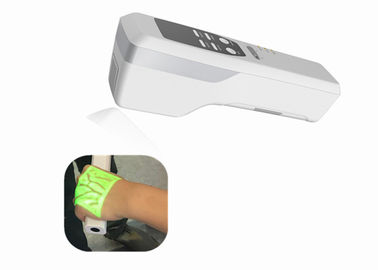

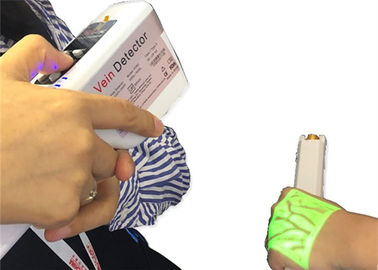

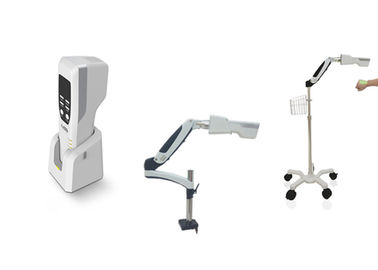

High Image Quality Infrared Vein Finder Hospital Medical Vein Locator For Projection
This venipuncture system is designed for venipuncture. Vein Viewer BS5000 can be used widely in hospital, pediatric clinic, emergency room, outpatient clinic/center, clinical laboratory, blood bank/center, military medics unit, the CDC, rehabilitation center, nursing homes and others
BS4000 is the latest model for projecting type vein viewing system. The image quality is clearly superior to the former models. please contact us for more details.
How does the device work?
The near infrared light has powerful penetration for the tissue of human body. The hemoglobin in human blood can selectively absorb the near infrared light. According to the different absorption between tissue and hemoglobin in veins, the reflected different signals will be transferred to digital image and enhanced in image quality, finally the image of veins will be projected to human body as a guide for needle.
What makes it so different?
Safe – Use safe light source, no laser, no radiation
Image quality – high contrast image, no noise or interference
No patient contact - clean and avoid any possibility of infection.
Easy to learn and use – no pre-use calibration or adjustments are necessary - just turn it on to display the veins beneath the skin
Excellent penetration – suitable for overweight or edema patient.
How does the device do good to doctors, nurses and hospitals?
Providing friendly treatment / diagnosis and saving life
Reducing venipuncture failure, avoid the medical conflicts
Increasing staff productivity
Attracting and helping to retain more patients
Digital Specification
Item | Spec |
Display mode | projection and near Infrared light source |
The deepest distance | Up to 15mm |
Infrared wavelength | 850NM |
Standby time | ≥180min |
Projector brightness | 1W20 Lumen(Adjustable) |
Position Accuracy | ≤0.2mm |
Image Resolution | 824*480 |
Projection distance | 25CM~35CM |
Projection color | white, green, red and switchable |
Working Mode | Normal mode, Child mode, Invert Colors mode |
Depth recognization | Depth recognization |
Brightness | Adjustable |
Processor | Inter ®Atom Win8.1 operating system |
Frame rate | Frame rate |
Infrared emission method | switchable between upper infrared light and below infrared light |
Working environment | Temperature | 10℃~40℃ |
Humidity | ≤80% | |
Transportation environment | Temperature | 5℃~40℃ |
Humidity | ≤80% | |
Storage environment | Temperature | 5℃~40℃ |
Humidity | ≤80% |
