5MHz USB Palm Probe Connected Ipad Color Ultrasound

5MHz USB Palm Probe Connected Ipad Color Ultrasound

5MHz USB Palm Probe Connected Ipad Color Ultrasound
video
5MHz USB Palm Probe Connected Ipad Color Ultrasound
Product Details:
Place of Origin: China
Brand Name: BIO
Model Number: U3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: Carton (185X105X55mm) 1kg/carton
Delivery Time: 7 working - days since getting full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month
Contact Now
Detailed Product Description
Applicable Department: Primacy Care, Emergency EMS, Wellness, Interventional, Med School, OB/GYN, Anesthesia,Breast, Pain Management, Sports Medicine, Globel Health, Clinical Research Display Mode: B, B/M, Color Doppler, PW, Power Doppler
Frequency: Convex: 3.5~5MHz, Linear: 7.5~10MHz Measurement: B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW(BPD, FL); B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth
Probe Port: USB Or Wifi Depth: Convex:90~305mm Linear:20~100mm
Weight: 120g Language: Chinese, English, Russian, Italian, Spanish, Portuguese
High Light:

palm probe ipad color ultrasound

,

USB ipad color ultrasound

,

5MHz Ipad Color Ultrasound

Palm Probe Connected to Ipad Color Ultrasound Urology Kidney Cardiac Lung Thyroid Vascular Applications


U3 is a wireless & USB ultrasound probe scanner.This USB/wireless probe scanner

with integrated ultrasound circuit boards inside, can wireless connect to the IOS/Android/Windows device

that after installed ultrasound software, then realize the functions of a ultrasound scanner.

It is small and smart, convenient for carry and operation.



In emergency clinical,hospital ward inspection,community clinical and outdoor inspect,Clinical training,

Nursing Training, an easy carried & operated compact ultrasound such as wireless probe is desired.



USB/Wireless Color doppler Ultrasound Technical Specifications



Scanning system Electronic array sweep
Frequency Convex:3.5/5mhz,Linear:7.5/10mhz
Scan Depth Convex:90-305mm,Linear:20-100mm
Host iPhone iPad,Android cellphone/tablet,Windows Computer
Wifi Type 802.11n/20MHz/5G
Field of view 80 degree
Display mode B, B/M, color, PW, PDI
Image gray scale 256 level
channel 64
Frame 24s/f
Gain 30-105Db

Measure



distance, area, obstetrics and other

Length,Area/Circumference,GA(CRL),GA(BPD),GA(GS),

GA(FL),GA(HC),GA(AC)

Language English,Chinese,Russian, German, Italian, Spanish, Portuguese
Power by built-in battery,battery is replaceable
Power consumption 4W (probe run) /1.5W (probe stop)
Battery last 2 hours(continus working time)
Size 115(h)x70(w)x20(d) mm
Weight 125 gram



Features Comparison



Model U3 Convex U3 Linear

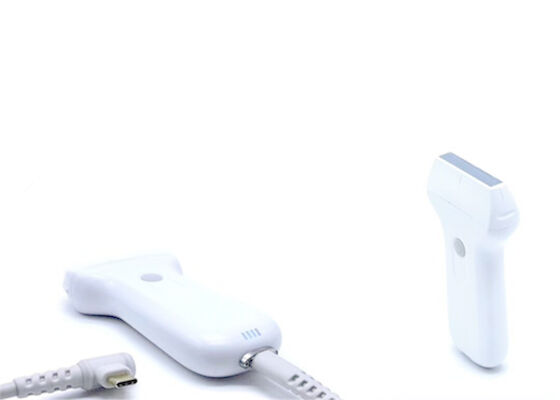

Photo 5MHz USB Palm Probe Connected Ipad Color Ultrasound 0 5MHz USB Palm Probe Connected Ipad Color Ultrasound 1
Type Convex Linear
Frequency 3.5-5MHz 7.5-10MHz
Depth 90-305mm 20-100mm
Elements 128 128
Radius R60 N/A
Length N/A 46mm
Display mode B, BM, THI, Color, Power, PW B, BM, THI, Color, Power, PW
APP interface adjustment

GN(gain)

D(depth)

ENH(enhancement)

DR(dynamic range)

F(frequency)

PRF WF

Focus

Biopsy

Annote, Page Left/Right Up/Down

8TGC

GN(gain)

D(depth)

ENH(enhancement)

DR(dynamic range)

F(frequency)

PRF WF

Focus

Biopsy

Annote, Page Left/Right Up/Down

8TGC

Measurement

B:

Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​



B+M:

Heart Rate, Time, Distance



B+PW:

Velocity, Heart Rate (2), S/D, Depth

B:

Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) ​



B+M:

Heart Rate, Time, Distance



B+PW:

Velocity, Heart Rate (2), S/D, Depth

Dimensions 115(h)*70(w)*20(d)mm 115(h)*60(w)*20(d)mm
Package size 185(h)*105(w)*55(d)mm 185(h)*105(w)*55(d)mm
Net weight 120g 102g
Gross weight 1kg 1kg
Wifi type 802.11g/20MHz/5G 802.11g/20MHz/5G
Connection type WiFi & USB WiFi & USB
Supporting Device Tablet, Smart phone, PC, etc. Tablet, Smart phone, PC, etc.
Working system Android, iOS, Windows Android, iOS, Windows
Application

Abdominal

Emergency Cardiac

Obstetrics / Gynecology

Lung

Kidney

Urology

Breast

Thyroid

MSK

Superficial

Vascular

Pediatrics

Carotid

Small Parts

Language

Chinese,English,Russian,Italian,

Spanish,Portuguese(Brazil)

Chinese,English,Russian,Italian,

Spanish,Portuguese(Brazil)

Battery life 5-8 years 5-8 years
Voltage 3.8v 3.8v
Replaceable Yes Yes
Capacity 1350mAh 1350mAh
Standby 12h 12h
Bootup

Platform dependent,

generally <5 seconds

Platform dependent,

generally <5 seconds



Standard Configuration



1 Wireless probe 1pc
2 USB cable 1pc
3 Power Plug 1pc
4 Wireless charger 1pc
5 Wrist strap 1pc
6 Portable aluminium alloy box 1pc
7 User's Manual_E format 1pc
8 Warranty Card_Eformat 1pc



5MHz USB Palm Probe Connected Ipad Color Ultrasound 2



5MHz USB Palm Probe Connected Ipad Color Ultrasound 3
