Product Details:
|
Resolution: | 1920 X 1080 | Light Source: | Natural White(LED) |
---|---|---|---|
LCD Screen: | 3.5 Inch Colorful TFT-LCD | Image Format: | JPEG(phote), H.264(video)dicom(optional) |
Interface: | Mini USB Port、headset Port | Working Time: | 2.5W For 3 Hours |
High Light: | Skin Video Dermatoscope,Wifi Video Dermatoscope,2.5W Video Dermatoscope |

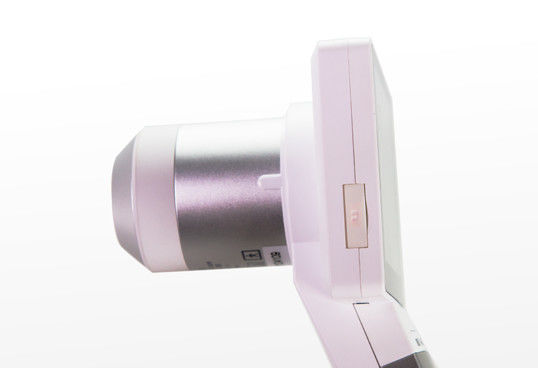

Skin Microscope Video Dermatoscope Natural White LED Free Analyzer Software Wifi Telemedicine Optional
Standard Configurations
No. |
Parts name |
Qty |
Mark |
|
1 |
Main unit |
1 |
|
|
2 |
Charger station |
1 |
|
|
3 |
Otoscope |
1 |
Optional |
|
4 |
Dermatoscope |
1 |
|
|
5 |
General imaging |
1 |
Optional |
|
6 |
AV cable |
1 |
|
|
7 |
Charger |
1 |
|
|
8 |
Lithium battery |
1 |
|
|
9 |
Power cable |
1 |
|
|
10 |
USB cable |
1 |
|
|
11 |
SD flash card |
1 |
|
|
12 |
User manual |
1 |
|
Specifications
Resolution |
1920 x 1080 |
Light source |
Natural white(LED) |
LCD screen |
3.5 inch colorful TFT-LCD |
Image format |
JPEG(phote), H.264(video)dicom(optional) |
Interface |
Mini USB port,headset port |
Media |
Micro SD flash card,maximum support 32GB |
Power supply |
3.7V / 2600mAh rechargeable lithium battery |
External power |
100~240 VAC,50/60 Hz |
Working time |
2.5 W for 3 hours |
Charging time |
5 hours |
Package |
Length:305mm width:260mm height:65mm |
Digital Otoscope(ear inspection)
Focus range |
5~30 mm |
Dimensions |
8.5 * 9 * 20 cm3 |
Weight |
330g |
Digital Dermatoscope(skin inspection)
Focus range |
10 mm diameter |
Dimensions |
8.5 * 8 * 20 cm3 |
Weight |
370g |
Digital General Imaging(general inspection including throat)
Focus range |
80 angle(diagonal) |
Dimensions |
8.5 * 5 * 20 cm3 |
Weight |
310g |
