Product Details:
|
| Light Type: | Near-infrared Light | Infrared Wavelengths: | 850 Nm |
|---|---|---|---|
| Image Resolution: | 720*480 | Depth Of Visible Vein: | ≤12mm |
| Warranty: | 12 Months | Battery Working Time: | 4 Hours |
| Visible Vein Size: | ≥1mm | Accuracy: | 0.25mm |
| Best Projection Distance: | 200±20mm | Colors: | 2 Colors And Switchable |
| High Light: | portable vein finder,vein locating device |
||

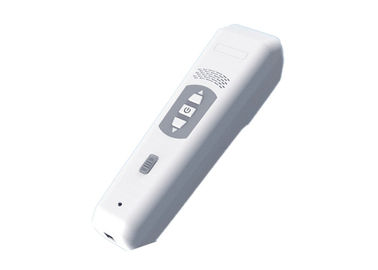

Visible Vein Depth of 1mm Infrared Vein Finder Transilluminator Vein Veiwer Resolution 720*480
The venous imaging device can significantly improve the venipuncture success rate by providing the real-time,
accurate and clear imaging of superficial veins.
And with the advanced LED Solid State Lighting Technology, LED Backlight Technology,
and world-leading digital image processing technique, it ensures a steady output of light source and clear imaging.
Therefore, the venous imaging device is of high value in clinical application.
The success rate of the first time venipuncture can be greatly increased and the puncture time shortened
by using the venous imaging device to assist puncture.
Accordingly, it will reduce the patient's trauma, pain and infection risk, and win rescue time;
in addition, it can improve working efficiency of medical staff, increase the reputation of a hospital
and lower the risk of medical disputes.
Product Parameter
Light Type Near-infrared Light
Best Projection Distance 200±20cm
Dimension 24*60*60cm(L*W*H)
Battery Working Time 4 hours
Operating Mode Handheld or suspension
Handheld vein finer are designed specially aiming to health care staff having mobile requirements and the mobile chassis of the bracket is stable and firm; Also accessories, such as personalized pushing hands and storage basket, etc. are equipped; Hover bracket for universal position and multi-joint adjustable mechanisms are equipped with features, for example high flexibility and easy to operate and so on.
|
Light type
|
Near-infrared light
|
|
Infrared wavelengths
|
850 nm
|
|
Package information
|
52X30X23cm, 2.3kg
|
|
Image resolution
|
720*480
|
|
Visible Vein Size
|
≥1mm
|
|
Accuracy
|
0.25mm
|
|
Depth of Visible Vein
|
≤12mm
|
|
Best projection distance
|
200±20mm
|
|
Operating Mode
|
Handheld or Suspension
|
|
Image frame rate
|
20FPS
|
|
LED lifetime
|
20000 hours
|
|
Power Supply
|
DC 5V ≤3.5W
|
|
Battery working time
|
4 hours
|
Main Features
• Target vein quike finding: Helpful for finding the target veins efficiently and easily
• Guidance for venipuncture: Provide a more clear vein view, Indicate the vein position, trend, branch, crossing
• Vein evaluation: Evaluate the vein filling condition
• Aesthetic medical injection: Helpful for medical staffs to avoid the veins
• Feeder vein treating: Helpful for finding more feeder veins and treat throughly, make the feeder treating visible
|
Color
|
2 colors adjustable, for different patient skin tone and personal preference
|
|
Inverse
|
Allows clinicians to switch entre highlight the veins and highlight the surround tissue, for reduce the interference of skin tone, density of hair follicles and room brightness.
|
|
Brightness
|
3 degree brightness adjustable, allow clinicians customizing the image brightness base on the environment light.
|
The main body of the handheld vein illumination instruments consists of four parts,
including host part, Lithium battery, power adapter, charger holder.
Venipuncture
Helpful throughout the whole venipuncture procedure.
• Before venipuncture
Helpful for finding the invisible veins and the special veins efficiently
and easily, evaluate the vein condition.
• During venipuncture
Shows the vein position, trend, branch, crossing
BIO- Catalogue for ECO BS300.pdf
