15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen

15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen

  • 15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen
  • 15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen
  • 15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen
  • 15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen
  • 15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen
15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen
Product Details:
Place of Origin: China
Brand Name: BIO
Model Number: 5000E
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: 1 unit / carton
Delivery Time: 7 working days after full payment
Payment Terms: Credit card, Paypal, T/T
Supply Ability: 100 units / month
Contact Now
Detailed Product Description
Modes: B,M,2B,B/M,4B,C,PW, Power,DirPower,THI Gray Level: 256
Display: 15” LCD Monitor Transducer Frequency: 2-12Mhz
Scanning Depth: ≥300mm Dynamic Range: 0~120dB Adjustable
Probe Connector: 2 Probe Holder: 2
USB Port: 2 Disk Capacity: ≥160G
High Light:

hand held doppler

,

hand held doppler machine

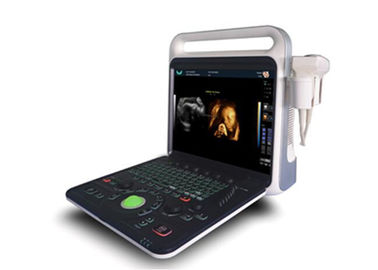

Color Doppler Ultrasound Machine with 15 Inches High Resolution LCD Screen Laptop Model

Specially, with its small size and design, 5000E is easy to transport, expanding its applications to more areas, such as ambulances, gymnasiums and operating theatres, as well as in the field.
5000E helps doctors to scan at wherever and whenever benefit from its quick start, long standby batteries and various kinds of probes.
Build-in patient’s data management system let patient’s diagnostic data can be storge easily, fast review quickly and manage efficiently. By connecting to printers, diagnostic report will be print out directly.
Moreover, the 5000E system gives users plug-and-play connectivity and seamless network to upgrade system and output data. E.g. DICOM, USB ports, DVD recorder, Internet access port.

Measurement and calculation



B mode Distance, angle, area, volume, trace length, length ratio, area ratio, histogram
M mode Distance, time, slope, heart rate
Color and PW mode D velocity, D trace, PS/ED
Application package Abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;

Technical Specifications

Monitor 15' HD LED monitor
Probe connector 2
Probe holder 2
USB Port 2
Scanning mode Convex,Trans-vaginal, high-frequency linear array,Micro-convex;4D array
Modes B,B/B,B/M,CFM,CFM/B,PDI,PDI/B,PW.CW
B/D dual-purpose linear array: B/PWD
convex array: B/PWD
B/D/PW real-time Triple
Languages 5
Gray scale 256 levels
Depth display ≥300mm
Dynamic range 0~120dB adjustable
One-click optimization function Available
Self-motion optimize function Available
Image multiplying factor Available
Image mode digital beam forming, tissue harmonic imaging
Picture function picture zoom in and zoom par
Disk capacity ≥160G
Frequency conversion 2MHz-12MHz(Depending on the probe)
Pseudo color encoding 16 kinds optional.
E-zoom magnify 2 times of real time image
Focus position dynamic electron focusing
Application Mode Abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;
Output Interface USB. VIDEO .DICOME.FOOT SW.
USB Port:Our machine can connect the common printer . Used to print the measurement report page.
Optional Probe Convex,linear,Trans-vaginal,Micro-convex,4D probe,Phased probe





Multiple Frequency Probes

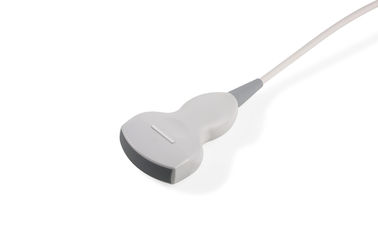

3.5 MHz Convex probe(R60)

15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen 0 Abdomen, GYN and OB

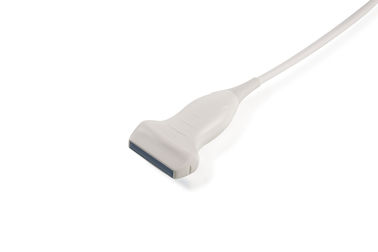

7.5 MHz Linear array probe(L40) 15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen 1

Vascular,Small Parts

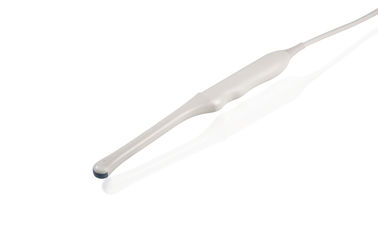

6.5 MHz Transvaginal probe(R13)

15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen 2 Vagina

6.5 MHz micro-convex probe(R15)

15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen 3

Cardiac



Standard Configurations



main unit

15 inch high resolution LCD display :1024*768

Two USB ports

One s-video out port

One HDMI port

One power inlet

3.5 MHz  convex probe

Three transducer connectors

Abundant measurement&calculation software package.



Optional



7.5 MHz Linear array probe

6.5 MHz Transvaginal probe

6.5 MHz Micro convex probe

Lithium battery

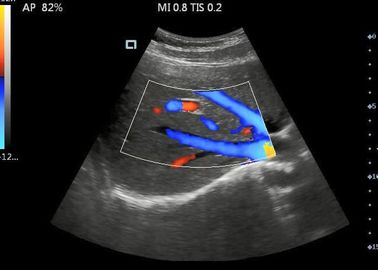

Our images

15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen 4



15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen 5



15 Inches Color Doppler Ultrasound Scanner Machine High Resolution LCD Screen 6
