Product Details:
|
| Light Type: | Near-infrared Light | Infrared Wavelengths: | 850nm |
|---|---|---|---|
| Image Resolution: | 720*480 | Visible Vein Size: | ≥1mm |
| Accuracy: | 0.25mm | Depth Of Visible Vein: | ≤12mm |
| Best Projection Distance: | 200±20mm | Image Frame Rate: | 20FPS |
| LED Lifetime: | 20000 Hours | Power Supply: | DC 5V ≤3.5W |
| Weight: | 450g | Battery Working Time: | ≈ 5 Hours |
| Charging Time: | ≈ 3 Hours | Operating Mode: | Handheld Or Suspension |
| Battery Volume: | 4400mAH | ||
| High Light: | vein locating device,vein finder machine |
||
Advanced Infrared Scanner Medical Vein Locator Device Technology Projection Portable Vein Finder
Product Descriptions
The BS300 vein finder detects veins beneath the skin by using infrared light, then projecting the image of the veins on the skin surface
directly above the veins. Qualified medical personnel can observe the displayed vasculature to find a vein of the right size and the location of superficial veins for venipuncture and other medical procedures.
The BS300 vein finder only shows superficial vasculature. The maximum depth of displayed veins varies by patients. The causes for the different depths of display that are less than optimal or lack of vein include, but are not limited to, vein depth, skin conditions (e.g. eczema, tattoos), hair, scarring or other highly contoured skin surface, and adipose (fatty) tissue.
When held directly overhead, the BS300 vein finder accurately locates the center of a vein.
Product Advantage
1. Safety Using near infrared light, no laser, no radiation.
2. Accurate Real show on skin, affectless images of veins.
3. Fast Focus on vein automatically, show vein immediately.
4. Non-touch Non-touch to anybody, prevent transmission of the virus.
5. Wide application Adult, child, obese, dark-skinned and so on. All person available.
6. Free environment Effectively show the vein in dark or bright conditions, indoor and outdoor.
7. Optional battery ensure 2 hours’ continuous working once external power supply is off.
8. Portable and Flexible Easy to move, fix and operate.
9. One button for power on/off, one button for brightness, one button for color selection Total three Buttons for all operations.
10. Easy to learn, no need for complicated debugging and maintenance.
Specification

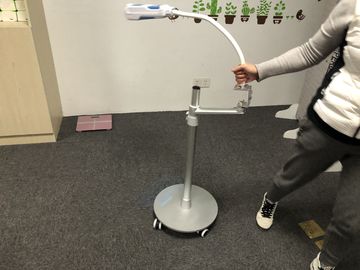

| Handheld Unit | Trolley Type | Desktop Type |
| Light type: Near-infrared light | Diameter of base: 600mm | Dimension: 400x120x320mm (LxWxH) |
| Infrared wavelengths: 850 nm | Weight: 5kg | Weight: 1.2kg |
| Image resolution: 720*480 | Height adjustable range: 1100-1600mm | Height adjustable range: 150mm-500mm |
| Visible Vein Size: ≥1mm | Wingspan adjustable range: 500mm | Wingspan adjustable range: 500mm |
| Accuracy: 0.25mm | Degree adjustable: 360° | Cardon link: 3DoF |
| Depth of Visible Vein: ≤12mm | Cardon link: 7DoF | Weight Support: ≤1.2kg |
| Best projection distance: 200±20mm | Weight Support: ≤1.2kg | Hover at any position: support |
| Image frame rate: 20FPS | Hover at any position: support | Package information: 16X16X90cm, 2.7kg |
| LED lifetime: 20000 hours | Wheel dimension: 2" | |
| Power Supply: DC 5V ≤3.5W | Package information: 70X70X22cm, 6.2kg | |
| Weight: 450g | ||
| Dimension: 240x60x60mm (LxWxH) | ||
| Battery volume: 4400mAH | ||
| Battery working time: ≈ 5 hours | ||
| Charging time: ≈ 3 hours | ||
| Battery detachable: Yes | ||
| Operating Mode: Handheld or Suspension | ||
| Package information: 52X30X23cm, 2.3kg |
Product images
E-catalogue for BIO_BS300 Vein Finder-20160908.pdf
