Name: Palm Vein Scanner Vascular Injection Vein Illuminator Vein Imaging Device With Rechargeable Battery
Brand: BIO
SKU: BS300

Home Products Vein Locator Device

Palm Vein Scanner Vascular Injection Vein Illuminator Vein Imaging Device With Rechargeable Battery

Product Details:

Place of Origin:	China
Brand Name:	BIO
Certification:	CE
Model Number:	BS300

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	Carton (302716cm) 3kg
Delivery Time:	7 working - days since getting full payment
Payment Terms:	Credit card, Paypal, T/T
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Effective Objecting Distance In Positive Direction:	200±20mm	Strength Of Objecting Light:	＜ 80lux
Wavelength Of Objected Light:	850nm	Deviation:	<1mm
Power Supply:	Lithium Ion Battery	Image Resolution:	720*480
Type:	Handheld/table/trolley	Warranty:	12 Months
High Light:	vein locating device , portable vein finder

Palm Vein Scanner Vascular Injection Vein Illuminator Vein Imaging Device With Rechargeable Battery

Venipuncture:

Helpful throughout the whole venipuncture procedure.

Before venipuncture:

Helpful for finding the invisable veins and the special veins efficiently and easily, evaluate the vein condition.

During venipuncture:

Shows the vein position, trend, branch, crossing

After venipuncture:

Check the hematoma ; Check the injection liquid flow.

• Increase first stick success by up to 100%

• Decrease medically unnecessary PICC lines by greater than 30%

• Increase patient satisfaction by 100%

Aesthetic Facial Injection

• Accidentally hitting a vein during injection of fillers and other cosmetic facial treatments can cause intense pain and facial bruising (damage).

• Veins in the area indicated in the right image is visable by vein illuminator, the visibility of the veins locted on the other area depends on the facial veins and musle condition of patient.

Specifications

Light type	Near-infrared light
Infrared wavelengths	850 nm
Image resolution	720*480
Visible Vein Size	≥1mm
Accuracy	0.25mm
Depth of Visible Vein	≤12mm
Best projection distance	200±20mm
Image frame rate	20FPS
LED lifetime	20000 hours
Power Supply	DC 5V ≤3.5W
Weight	450g
Dimension	240x60x60mm (LxWxH)
Battery volume	4400mAH
Battery working time	≈ 5 hours
Charging time	≈ 3 hours
Battery detachable	Yes
Operating Mode	Handheld or Suspension
Package information	302716cm, 2.3kg

Standard configuration

main unit	1 unit
battery	1 pc
charging base	1 pc

Optional

Fixed support	1 unit
Mobile support	1 unit

What kinds of patients is it suitable for?

Children

The elderly

Obese patients

Dark-skinned patients

Patients with anemia, hypotension, or excessive loss of blood

Our Service

1. All your inquires will be replied within 24 hours;
2. Professional team who have professional attitude to recommended products;
3. One year free warranty and after-sales service are guaranteed;
4. OEM and customized services are available;
5. Experienced engineers can help you better use our products.

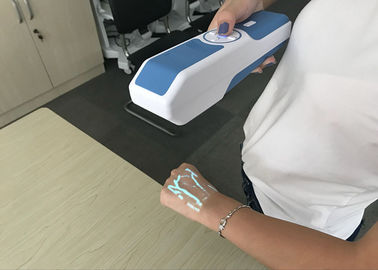

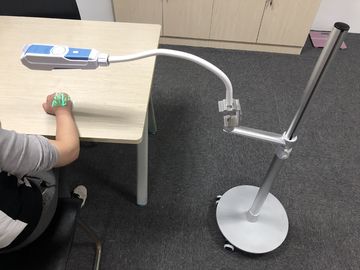

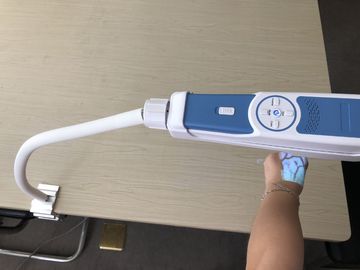

Product Image

Palm Vein Scanner Vascular Injection Vein Illuminator Vein Imaging Device With Rechargeable Battery 2

Palm Vein Scanner Vascular Injection Vein Illuminator Vein Imaging Device With Rechargeable Battery 3

Palm Vein Scanner Vascular Injection Vein Illuminator Vein Imaging Device With Rechargeable Battery 4

Palm Vein Scanner Vascular Injection Vein Illuminator Vein Imaging Device With Rechargeable Battery 5

Pls find the belows catalogue and user's manual of vein locator BS300 for reference:

E-catalogue for BIO_BS300 Vein Finder-20160908.pdf

vein finder bs300 user's Manual.pdf
